Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery tray.
  2. Install the bolts (2) to the battery tray reinforcement until snug.

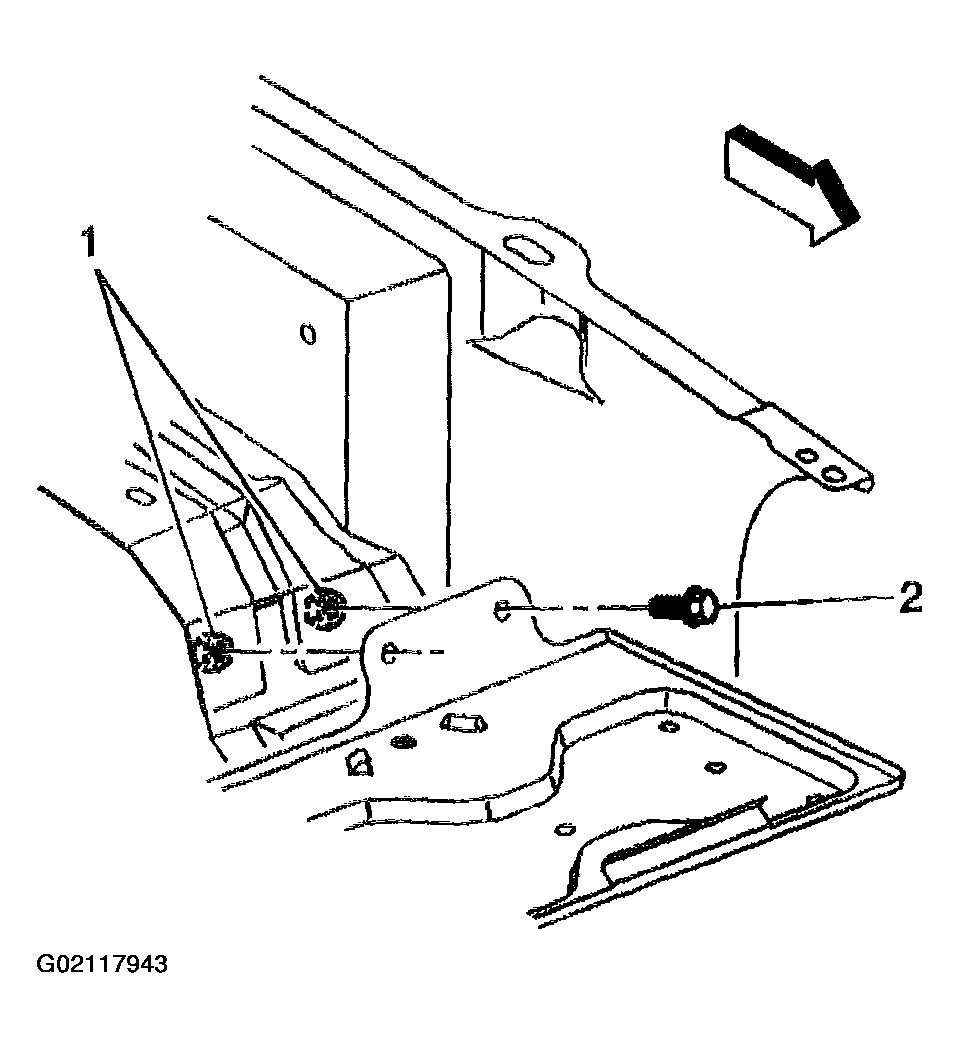

    Fig 1: Installing Bolts To Battery Tray Reinforcement Until Snug
    G02117943Courtesy of GENERAL MOTORS CORP.
  3. Install the bolts (1) to the fender inner panel until snug.

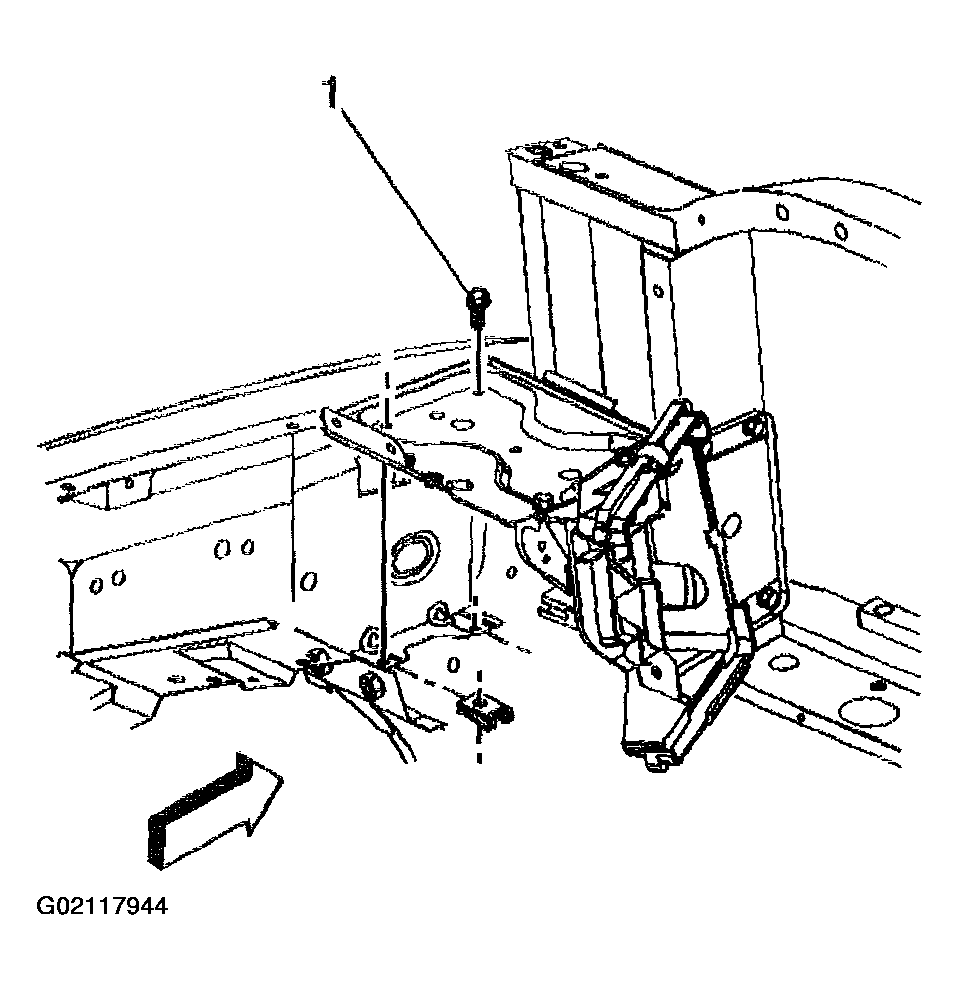

    Fig 2: Installing Bolts To Fender Inner Panel Until Snug
    G02117944Courtesy of GENERAL MOTORS CORP.
  4. Install the bolts to the battery tray support until snug.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices
  5. Tighten the battery tray bolts.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  6. Install the battery. Refer to BATTERY REPLACEMENT  .

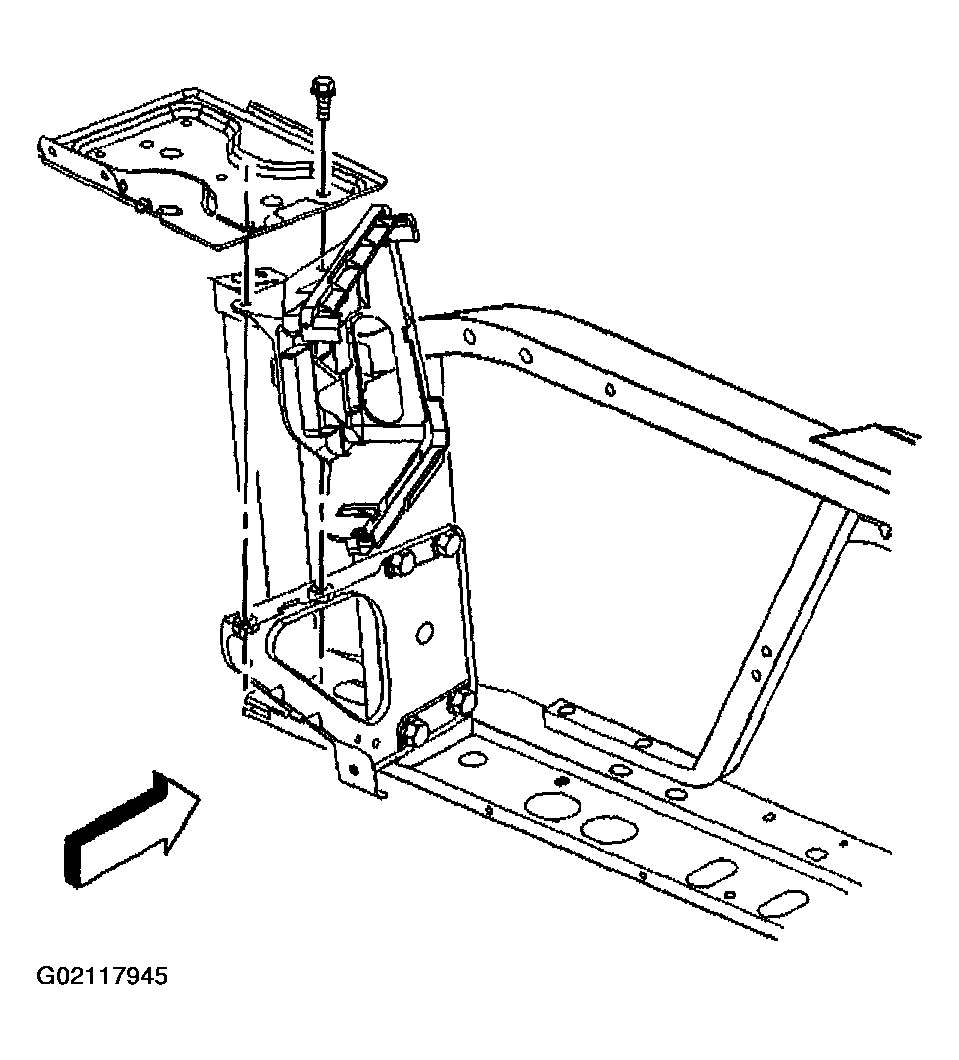

    Fig 3: Installing Bolts To Battery Tray Support
    G02117945Courtesy of GENERAL MOTORS CORP.
