Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

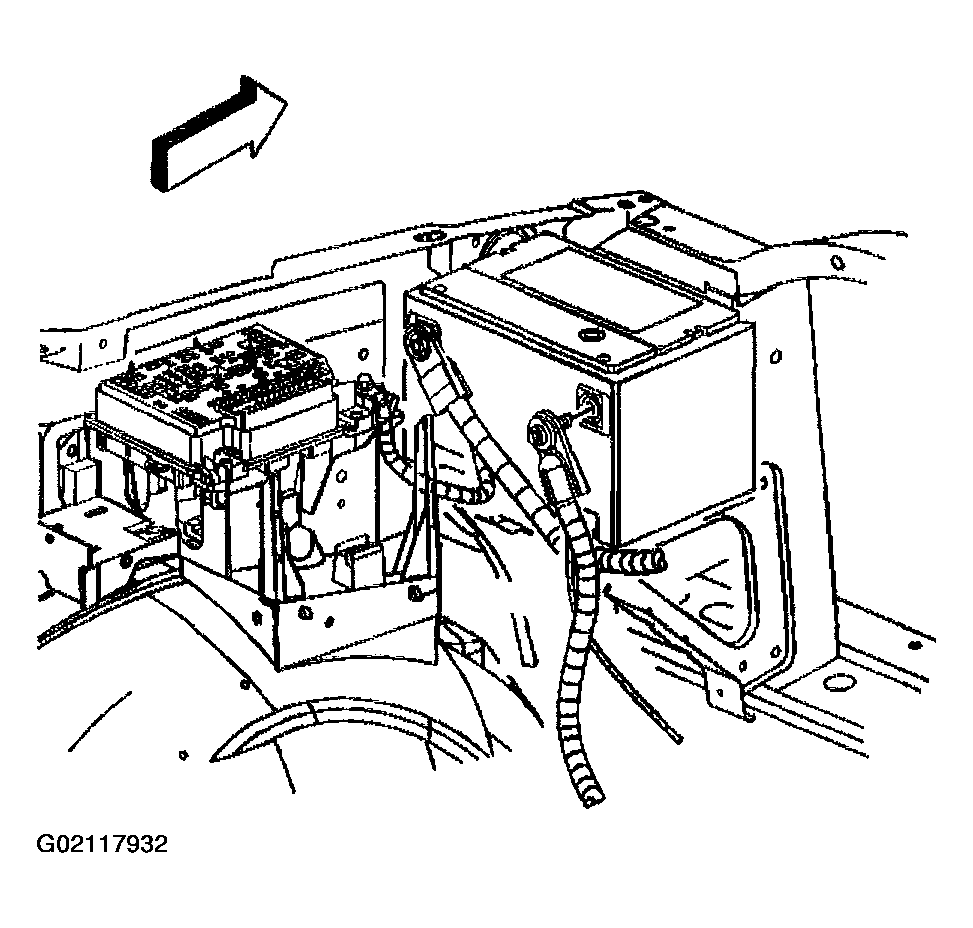

Fig 1: Disconnecting Negative Battery Cable
Courtesy of GENERAL MOTORS CORP.
Unsnap the positive battery cable cap.
Disconnect the positive battery cable.

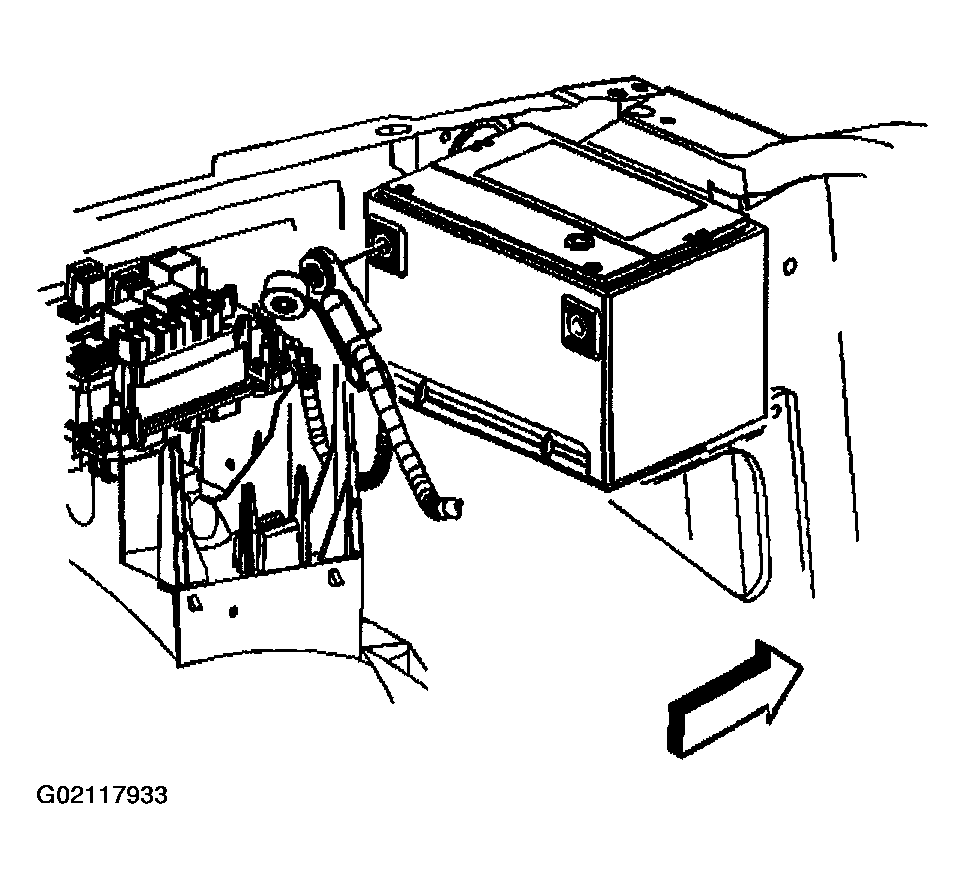

Fig 2: Disconnecting Positive Battery Cable
Courtesy of GENERAL MOTORS CORP.
Remove the front end diagonal brace bolts and brace.

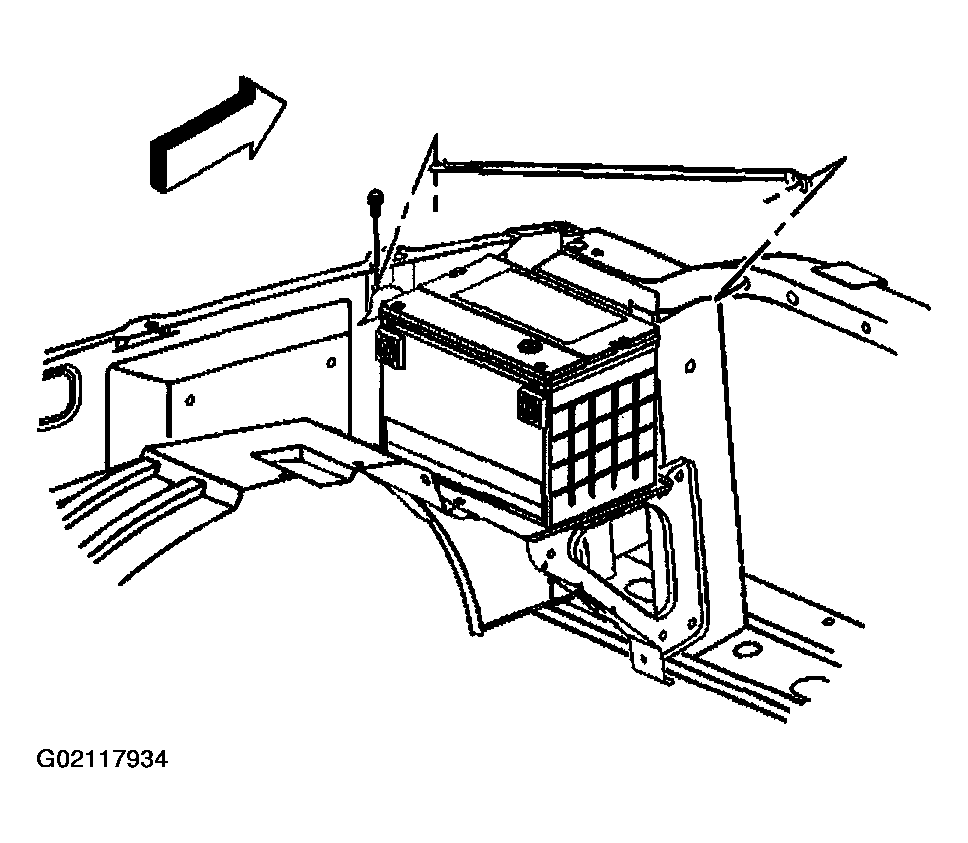

Fig 3: Removing Front End Diagonal Brace Bolts And Brace
Courtesy of GENERAL MOTORS CORP.
Remove the battery hold down retainer bolt and retainer.
Remove the battery.
Remove the battery insulator, if necessary.

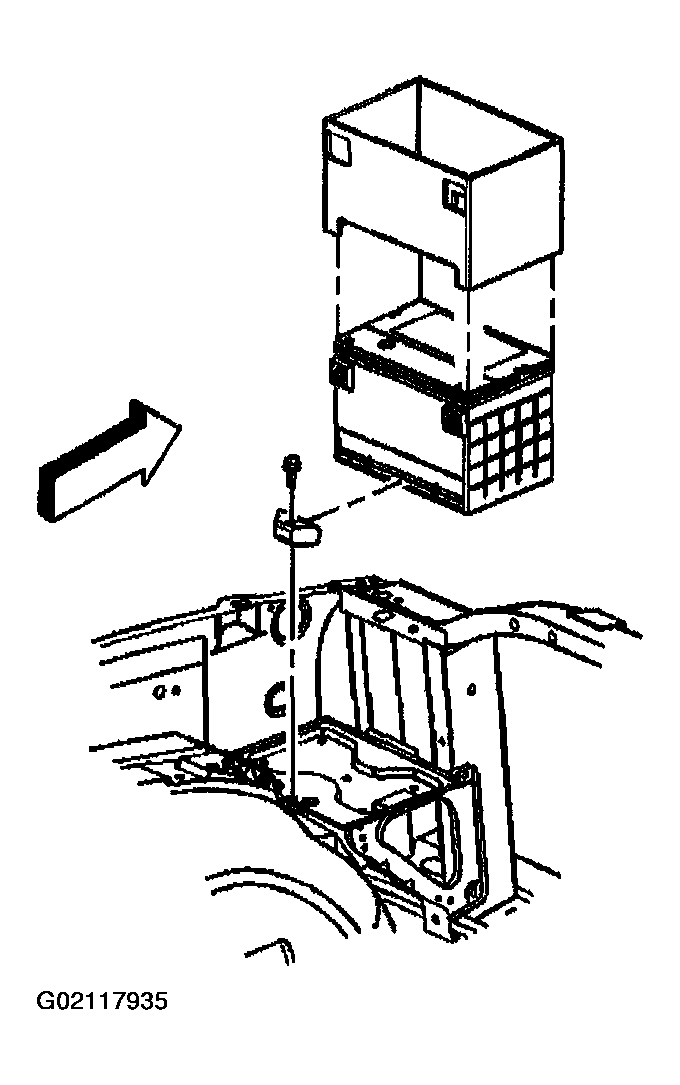

Fig 4: Removing Battery Hold Down Retainer Bolt And Retainer
Courtesy of GENERAL MOTORS CORP.
