Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
in Cautions and Notices.
Important: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

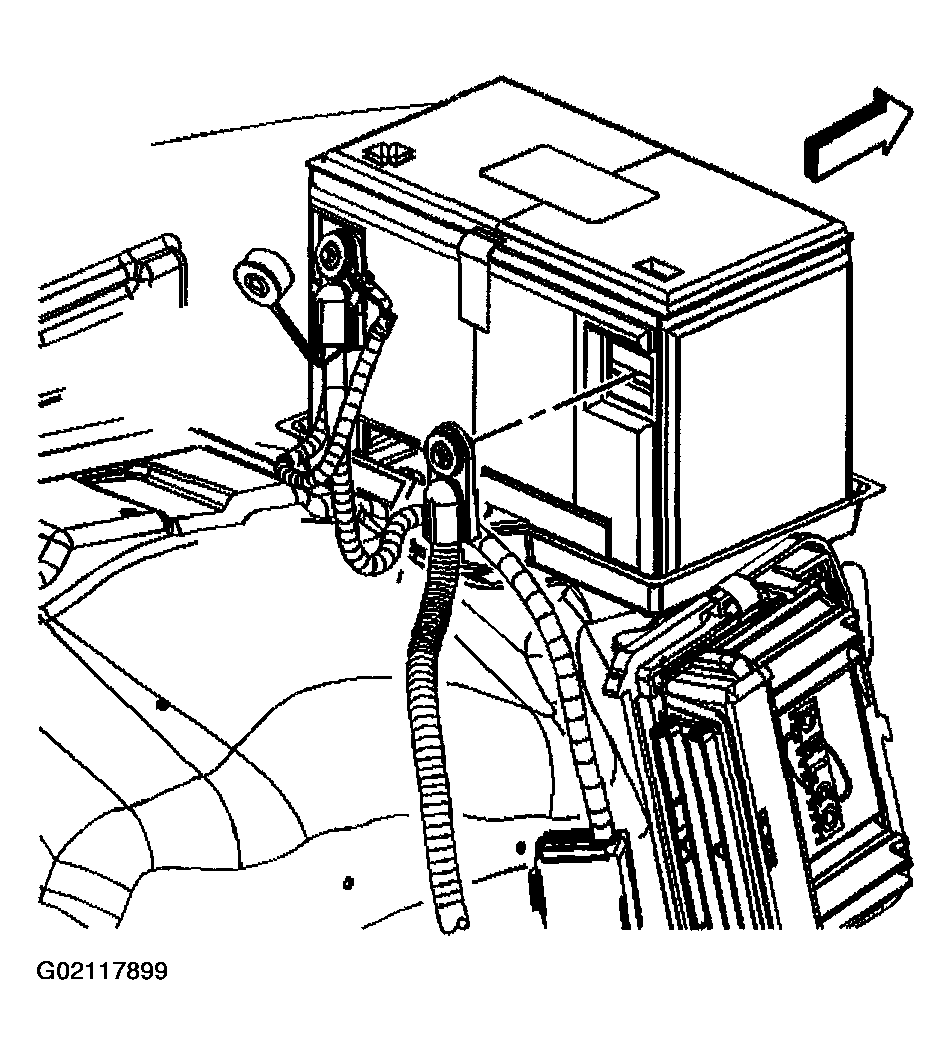

- Install the battery cable to the battery.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Tighten the negative cable bolt.
Tighten
Tighten the bolt to 17 N.m (13 lb ft).
