Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Reposition the surge tank inlet hose clamp from the radiator.
Remove the surge tank inlet hose from the radiator.

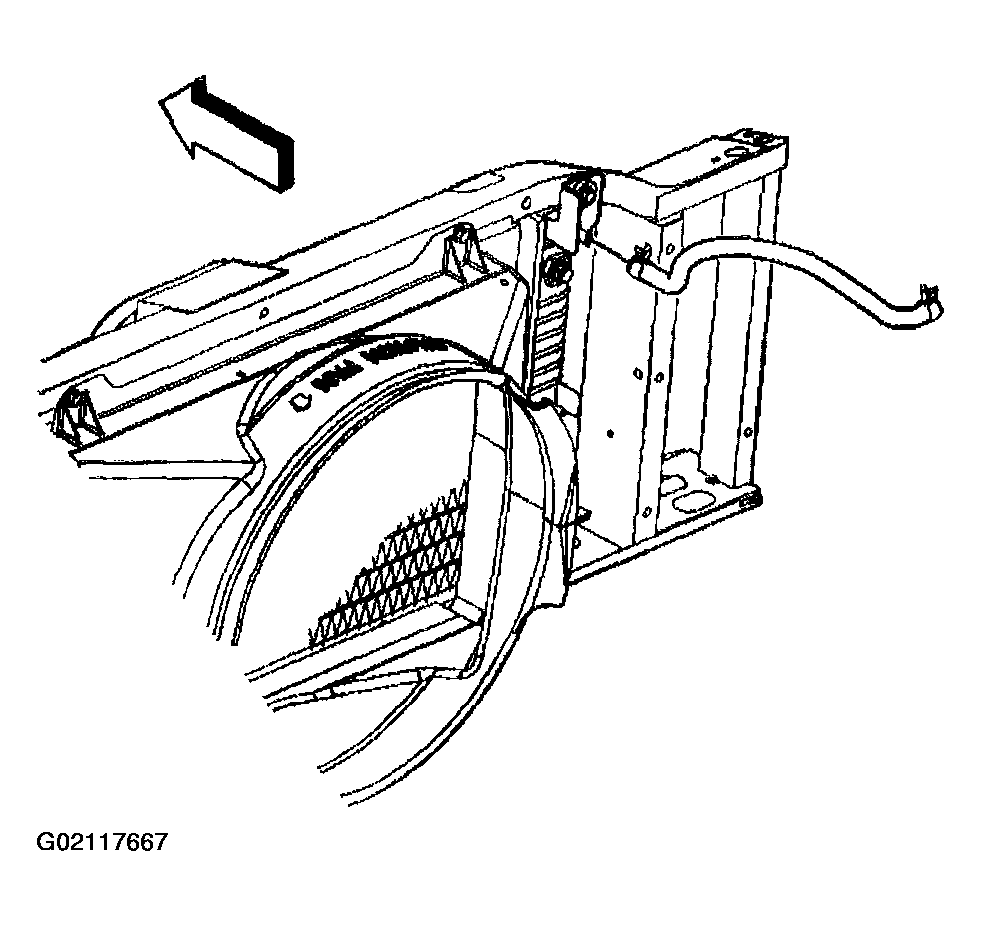

Fig 1: Removing Surge Tank Inlet Hose From Radiator
Courtesy of GENERAL MOTORS CORP.
Reposition the surge tank inlet hose clamp at the surge tank.
Remove the surge tank inlet hose (1) from the surge tank.

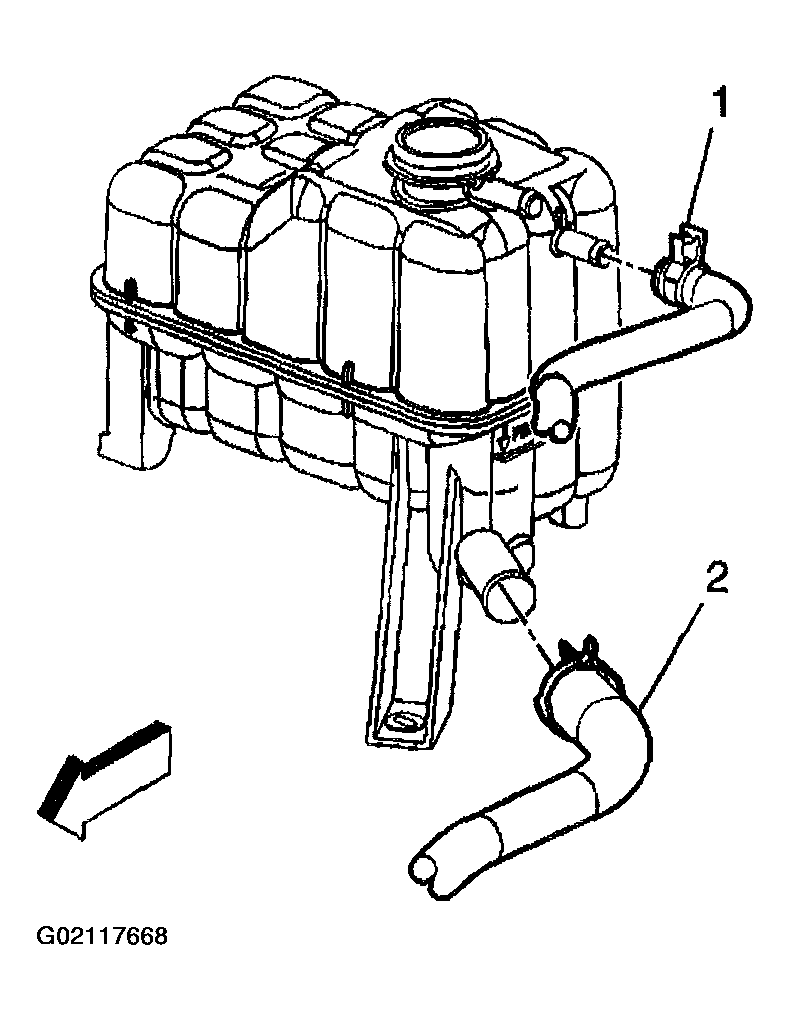

Fig 2: Removing Surge Tank Inlet Hose From Surge Tank
Courtesy of GENERAL MOTORS CORP.
