Harness Routing Views

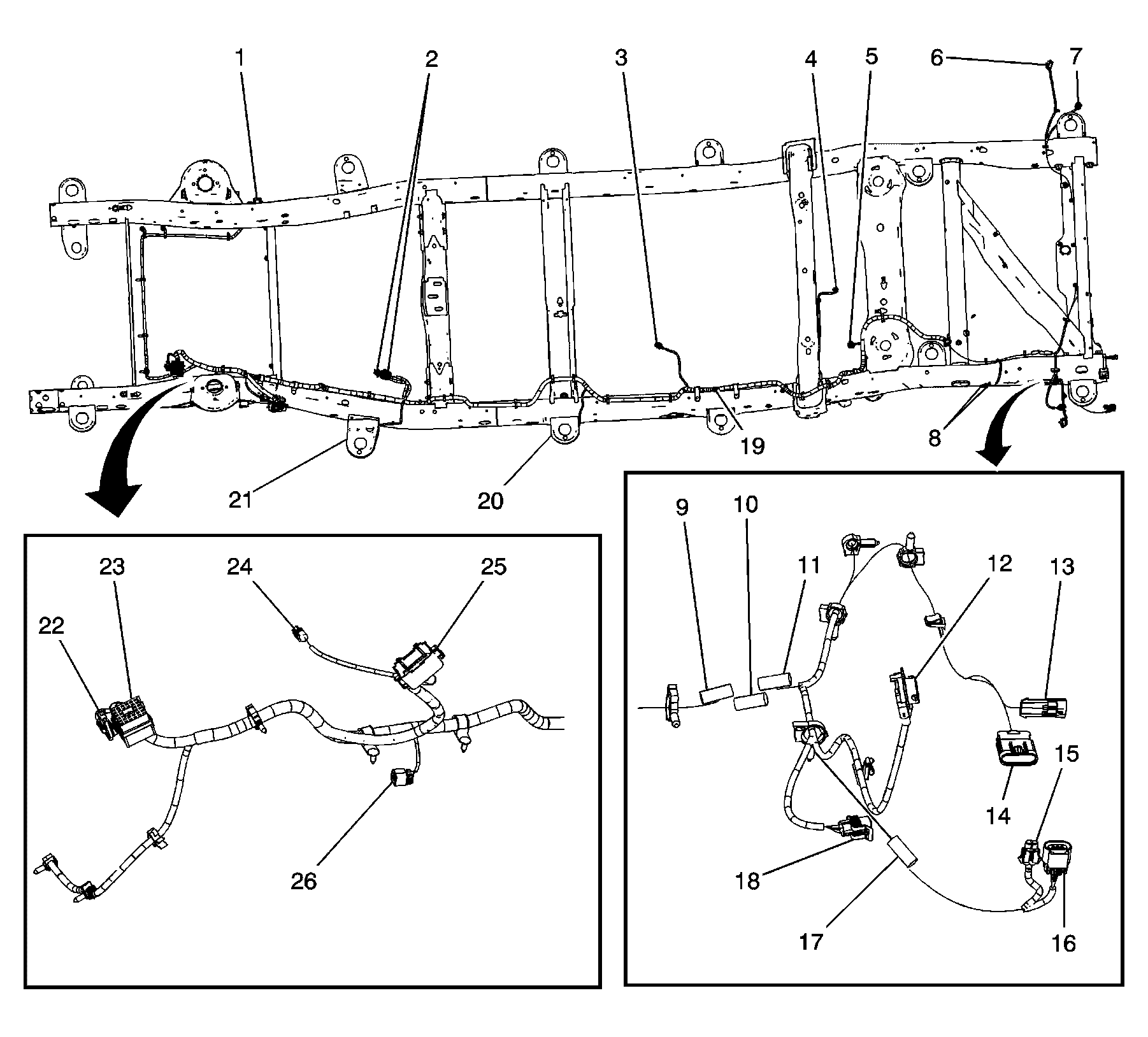

Fig 1: Chassis Harness Routing View
GM1235760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - RF
2 Electronic Brake Control Module (EBCM)
3 Fuel Pump and Sender Assembly
4 Evaporative Emission (EVAP) Canister Vent Solenoid
5 Fuel Tank Pressure (FTP) Sensor
6 Tail/Stop and Turn Signal Lamp - Right
7 C402
8 G402, G403
9 S400
10 S401
11 S402
12 Tail/Stop and Turn Signal Lamp - Left
13 C400
14 C401
15 Rear Compartment Ajar Switch
16 Rear Compartment Lid Release Switch/Actuator - Exterior
17 Trailer Tow Blunt Cut
18 C404
19 S403
20 G401
21 G400
22 Fuse Block - Underhood C7
23 Fuse Block - Underhood C3
24 Brake Fluid Level Switch
25 C105
26 Wheel Speed Sensor (WSS) - LF
Fig 2: Body Harness Routing/Components Views
GM1236084Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C303
2 C600
3 C601
4 G301
5 Seat Belt Pretensioner - Right Connector
6 Inflatable Restraint Side Impact Module - Right
7 C306
8 S303
9 C308
10 Roof/Door Module
11 Roof/Door Module
12 Relay Block - Rear
13 Daytime Running Lamp (DRL) Diode
14 Speaker - LR
15 Audio Amplifier C3
16 Audio Amplifier C1
17 Splice Pack SP300
18 Audio Amplifier C2
19 S307
20 Speaker - RR
21 C309
22 C202
23 C204
24 C200
25 Fuse Block - Rear C2
26 S306
27 Fuse Block - Rear C3
28 S301
29 S302
30 G302

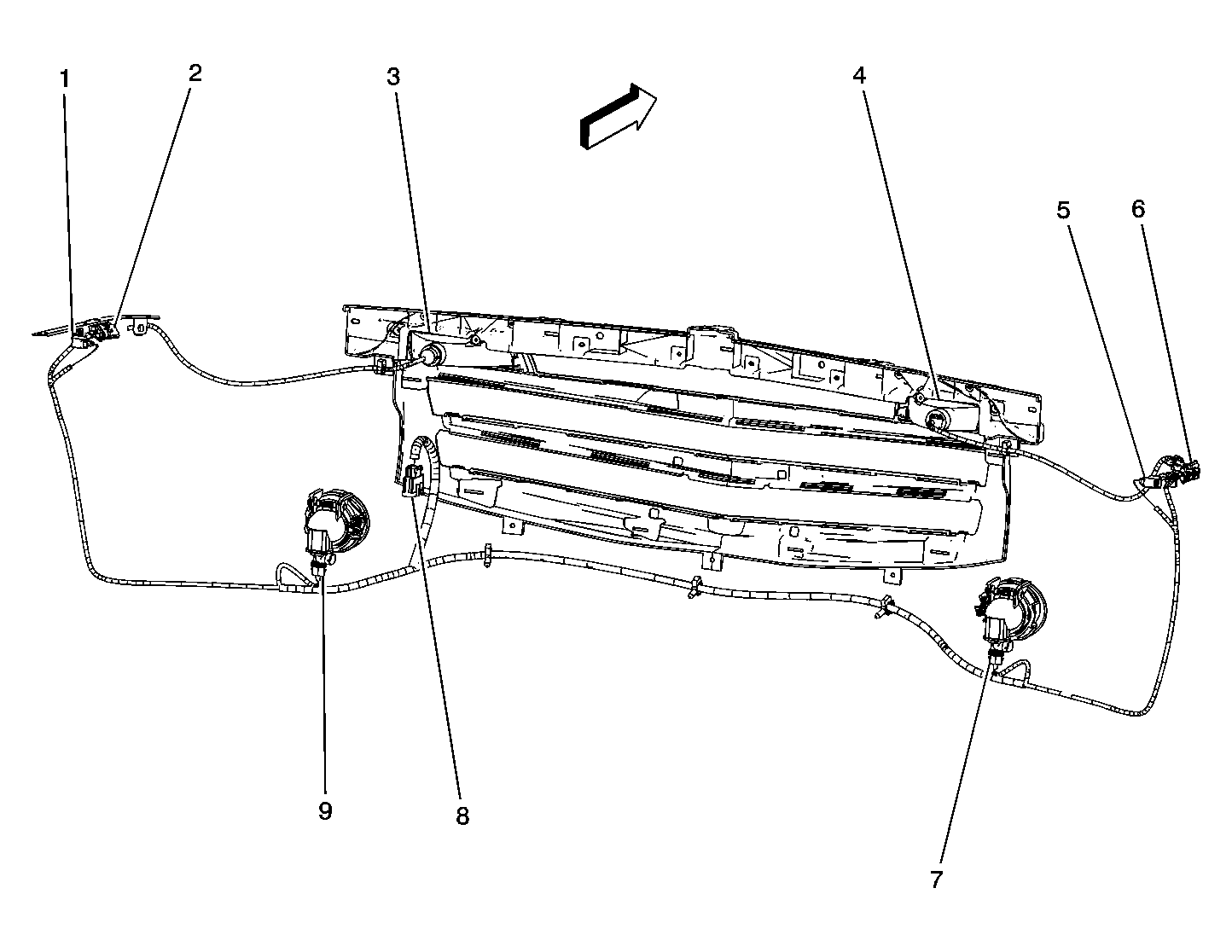

Fig 3: Front Fascia Harness Routing View
GM1238374Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp - LF
2 C107
3 Park/Turn Signal Lamp - LF
4 Park/Turn Signal Lamp - RF
5 Marker Lamp - RF
6 C106
7 Fog Lamp - RF
8 C104
9 Fog Lamp - LF
Fig 4: Forward Lamp Harness Routing View
GM1238379Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C103
2 Fuse Block - Underhood C4
3 Battery Feed
4 Headlamp - Low Beam Left
5 Headlamp - High Beam Left
6 S111
7 Cooling Fan 2 Relay
8 G105
9 Cooling Fan 1 Relay
10 S106
11 Cooling Fan
12 S104
13 S103
14 Headlamp - High Beam Right
15 Headlamp - Low Beam Right
16 Horn Assembly
17 S105

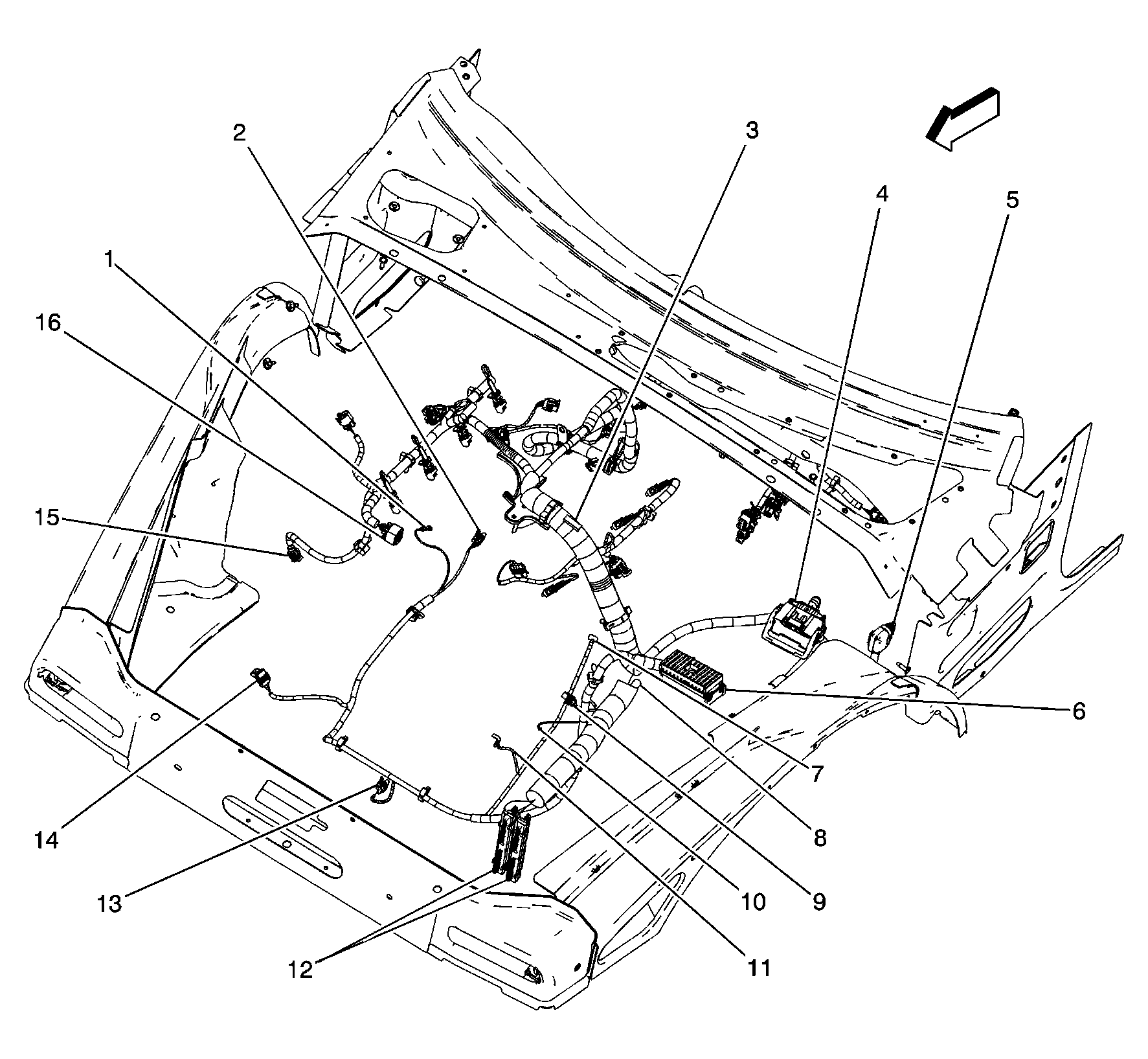

Fig 5: Engine Harness Routing View (1 of 3)
GM1238381Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter
2 Crankshaft Position (CKP) Sensor
3 S100
4 C100
5 Throttle Actuator Control (TAC) Module C1
6 Fuse Block - Underhood C1
7 G102
8 S101
9 Engine Coolant Temperature (ECT) Sensor
10 G101
11 G100
12 Powertrain Control Module (PCM) C1,C2
13 Engine Oil Level Switch
14 A/C Compressor Clutch
15 A/C Refrigerant Pressure Sensor
16 Throttle Body

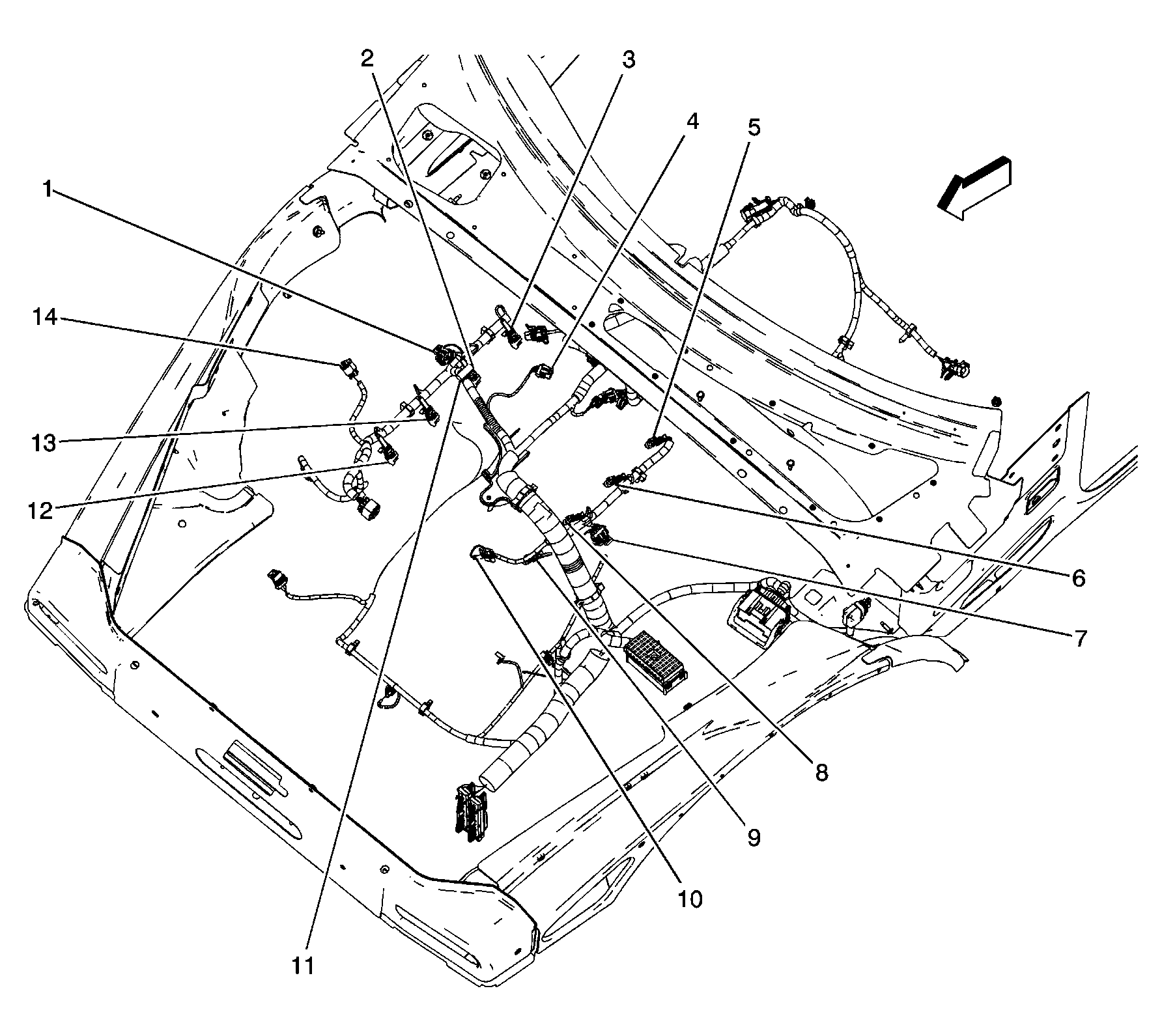

Fig 6: Engine Harness Routing View (2 of 3)
GM1238384Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C108
2 Fuel Injector 6
3 Fuel Injector 8
4 Manifold Absolute Pressure (MAP) Sensor
5 Fuel Injector 7
6 Fuel Injector 5
7 C109
8 Fuel Injector 3
9 Fuel Injector 1
10 Generator
11 S102
12 Fuel Injector 2
13 Fuel Injector 4
14 Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor

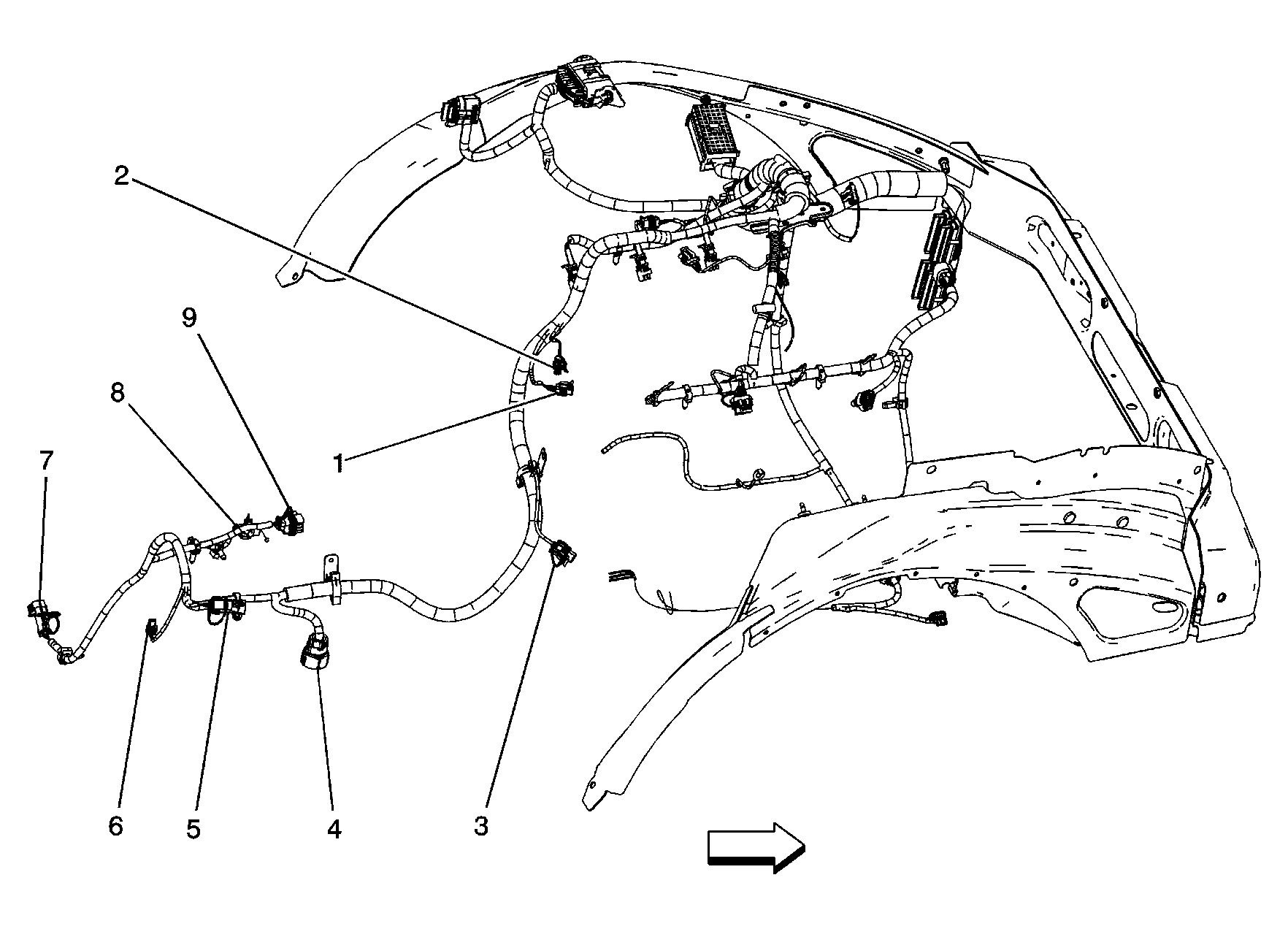

Fig 7: Engine Harness Routing View (3 of 3)
GM1410761Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor
2 Engine Oil Pressure (EOP) Sensor
3 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
4 C175
5 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
6 Vehicle Speed Sensor (VSS)
7 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
8 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
9 Park Neutral Position Switch
Fig 8: Header Harness Routing View
GM1238388Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Folding Top Outer Latch Striker Position Switch
2 Rear View Mirror
3 C304
4 Folding Top Outer Latch Actuator
5 Folding Top Panel Outer Latch Position Switch
6 S320
7 S304
8 Vanity Mirror - RF
9 Windshield
10 C303
11 Vanity Mirror - LF
Fig 9: Driver Door Harness Routing View
GM1238390Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rear View Mirror Switch
2 Speaker - LF Door Mid-Range
3 S501
4 C500
5 C501
6 S500
7 Outside Rear View Mirror - Driver
8 Speaker - LF Door
9 S502
10 Window Motor - Driver
11 Inflatable Restraint Side Impact Sensor (SIS) - Left
12 Door Latch Assembly - Driver
Fig 10: Passenger Door Harness Routing View
GM1238392Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - RF Door Mid-Range
2 Door Latch Assembly - Passenger
3 Passenger Door
4 Inflatable Restraint Side Impact Sensor (SIS) - Right
5 Window Motor - Passenger
6 S602
7 Speaker - RF Door
8 Outside Rear View Mirror - Passenger
9 S600
10 C601
11 C600
12 S601

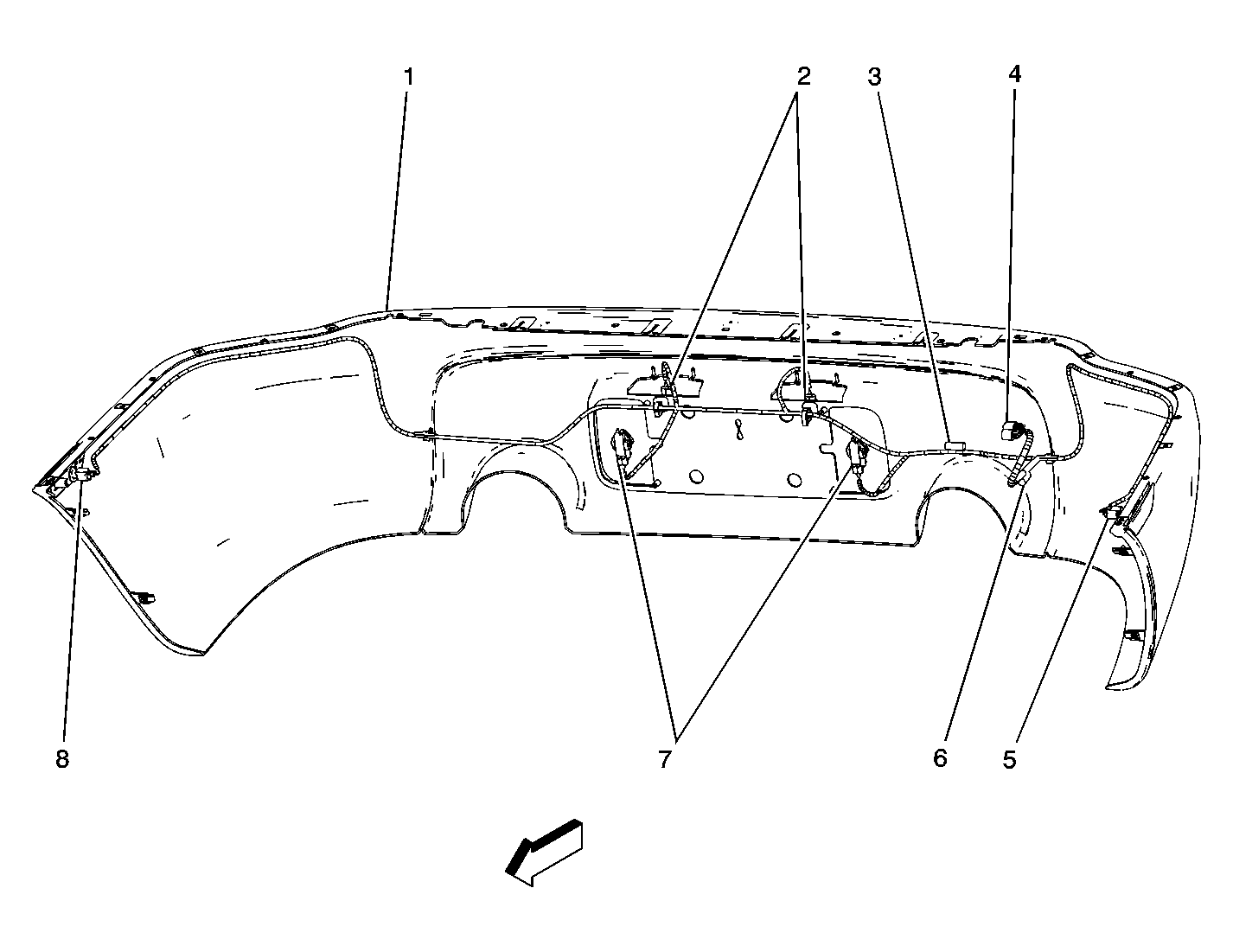

Fig 11: Rear Fascia Harness Routing View
GM1238393Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Fascia
2 License Lamps
3 S405
4 C401
5 Marker Lamp - LR
6 S404
7 Backup Lamps
8 Marker Lamp - RR

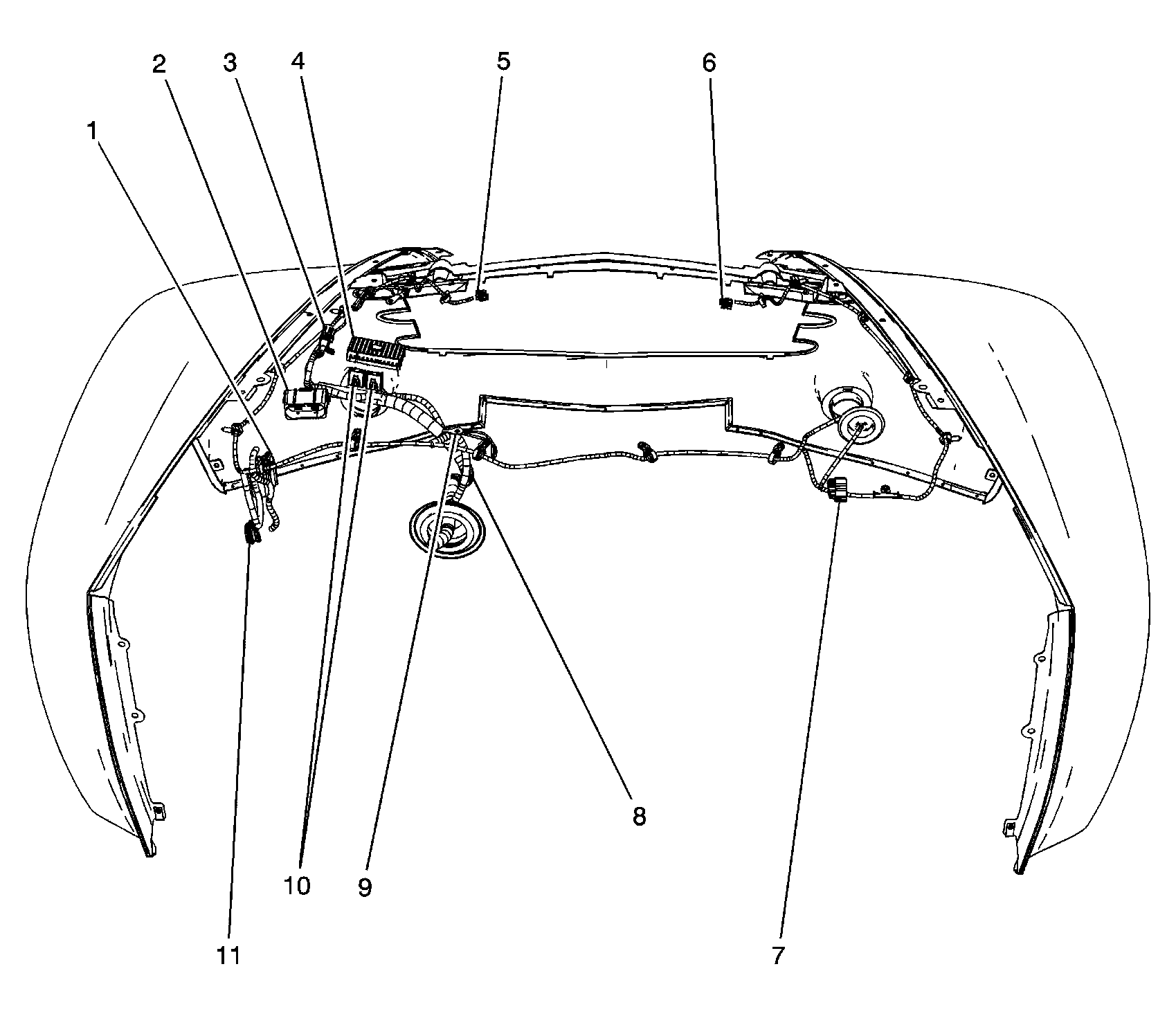

Fig 12: I/P Harness Routing View (1 of 3)
GM1366586Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C105
2 C100
3 C103
4 Fuse Block - Underhood C2
5 Electronic Frontal Sensor - Left
6 Electronic Frontal Sensor - Right
7 Windshield Wiper Motor
8 I/P Harness
9 G103
10 Fuse Block - Underhood C5, C6
11 Throttle Actuator Control Module (TAC) Module C2
Fig 13: I/P Harness Routing View (2 of 3)
GM1254116Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S205
2 S206
3 Instrument Panel Cluster Connector
4 Mode Actuator Connector
5 Noise Compensation Microphone Connector
6 Ambient Light Sensor Connector
7 Radio Connector C1
8 Air Temperature Actuator
9 HVAC Connector Module Connector C1,C2
10 Evaporator Temperature Sensor Connector
11 Inflatable Restraint I/P Module Connector
12 S209
13 Blower Motor Connector
14 Recirculation Actuator Connector
15 Inflatable Restriaint I/P Module Disable Switch Connector
16 I/P Compartment Lamp Connector
17 Blower Motor Resistor Connector
18 Rear Compartment Lid Release Switch - Interior Connector
19 Auxiliary Power Outlet Front #2 Connector
20 C205
21 S208
22 S207
23 Auxiliary Power Outlet Front #1 Connector
24 Splice Pack SP200, G200
25 Turn Signal/Hazard Flasher Module Connector
26 Stop Lamp Switch Connector
27 Data Link Connector (DLC)
28 Inflatable Restraint Steering Wheel Coil Connector
29 Splice Pack SP201
30 Headlamp Switch Connector
31 C201
32 Accelerator Pedal Position (APP) Sensor Connector
Fig 14: I/P Harness Routing View (3 of 3)
GM1254130Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center Console Switch Assembly Connector
2 Automatic Transmission Shift Lock Actuator Connector
3 Auxiliary Message Center (SEO) Connector
4 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
5 Park Brake Switch Connector
6 Fuse Block - Rear C4 Connector
7 C202
8 S300
9 Remote Control Door Lock Receiver (RCDLR) Connector
10 Body Control Module (BCM) C1, C2, C3, C4, C5 Connectors
11 C200
12 C204
13 Fuse Block - Rear C1 Connector
14 S318
15 S319
16 C300
17 Inflatable Restraint Side Impact Module - Left Connector
18 Seat Belt Pretensioner - LF Connector
19 G300
20 S202
21 S200
22 S203
23 C501
24 C500
25 I/P Harness
Fig 15: Driver Seat Base Level Harness Routing View
GM1272997Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C313
2 C300
3 Seat Belt Switch - Driver Connector
4 Seat Position Switch - Left Connector
5 Seat Motors Assembly - Driver Connector
6 Seat Adjuster Switch - Driver Connector C1,C2
7 Seat Adjuster Switch - Driver
Fig 16: Driver Seat UP Level Harness Routing View (1 of 2)
GM1272998Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Driver Connector
2 Seat Belt Switch - Driver Connector
3 Seat Position Switch - Left Connector
4 Memory Seat Module - Driver C3
5 Memory Seat Module - Driver C1
6 Memory Seat Module - Driver C2
7 Memory Seat Module - Driver C4
8 Seat Motors Assembly - Driver Connector
9 Position Sensor - Front
10 Seat Front Vertical Motor - Driver
11 Position Sensor - Rear
12 Seat Rear Vertical Motor - Driver
13 Seat Horizontal Motor - Driver
14 Position Sensor - Horizontal
Fig 17: Driver Seat UP Level Harness Routing View (2 of 2)
GM1273003Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Side Impact Module - Left
2 C300
3 S325
4 S324
5 S315
6 S313
7 S314
8 Seat Adjuster Switch - Driver Connector C1
9 Seat Adjuster Switch - Driver Connector C2
10 Seat Adjuster Switch - Driver
11 C313
Fig 18: Passenger Seat Harness Routing View (1 of 2)
GM1273004Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Horizontal Motor - Passenger
2 S308
3 S309
4 C306
5 C314
Fig 19: Passenger Seat Harness Routing View (2 of 2)
GM1273010Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Adjuster Switch - Passenger Connector C2
2 Seat Adjuster Switch - Passenger Connector C1
3 Heated Seat Switch - Passenger Connector
4 Seat Motors Assembly - Passenger Connector
5 Seat Position Switch - Right
6 Seat Belt Switch - Passenger Connector
7 Heated Seat Element - Passenger Connector
8 Inflatable Restraint Side Impact Module - Right
9 Seat Adjuster Switch - Passenger
Fig 20: Steering Column View
GM1393031Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Inflatable Restraint Steering Wheel Module C4
3 Inflatable Restraint Steering Wheel Module C2
4 Inflatable Restraint Steering Wheel Module C3
5 Steering Column Fuse Holder
6 Inflatable Restraint Steering Wheel Module C1
7 C201
