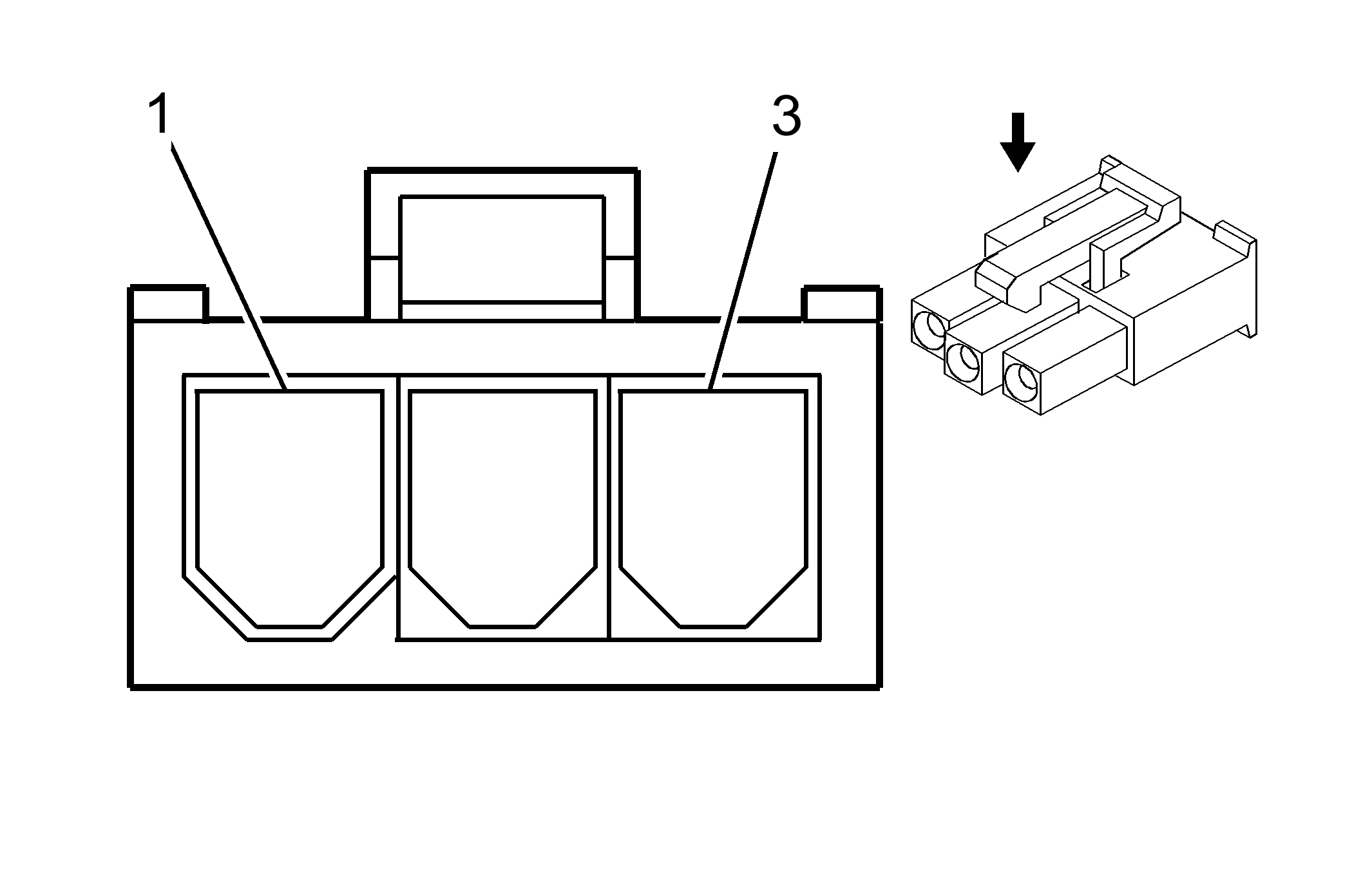

Position Sensor - Horizontal Connector End View
Position Sensor - Horizontal Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15324918
- 3-Way F Molex Connector (WH)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
BK |
850 |
Ground |
| 2 |
D-GN |
569 |
Horizontal Seat Motor Position Sensor Signal |
| 3 |
OG |
840 |
5 Volt Reference |
