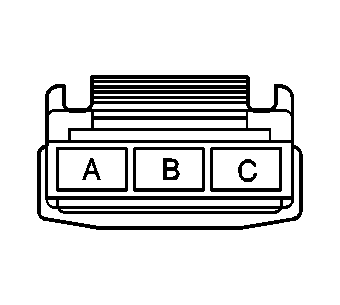

Memory Seat Module - Driver C1 Connector End View
Memory Seat Module - Driver C1 Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12020557
- 3-Way F Metri-Pack 480 Series (BK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
- |
- |
Not Used |
| B |
BK |
1350 |
Ground |
| C |
OG |
3540 |
Battery Positive Voltage |
