Relay Block - Rear, Label

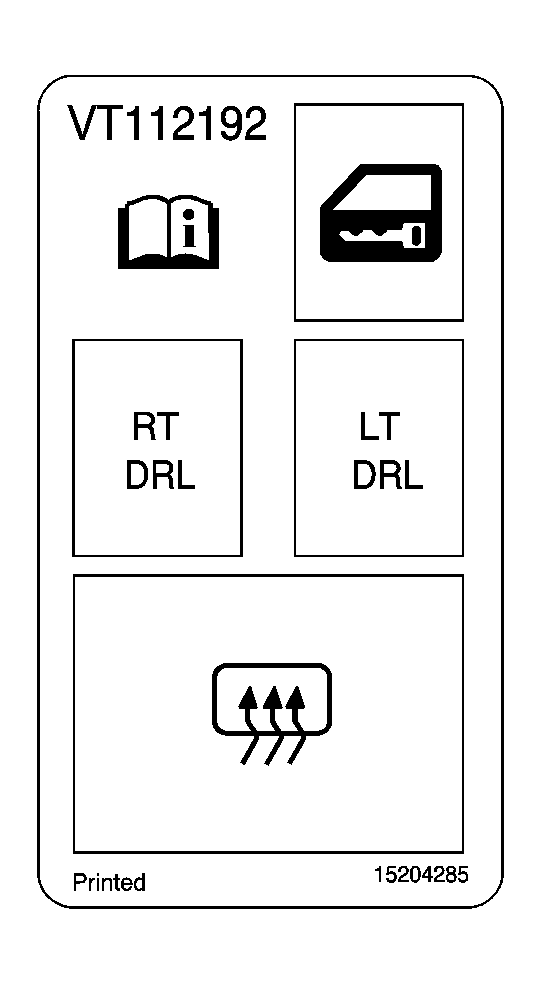

Fig 1: Relay Block - Rear, Label Identification View
GM1360912Courtesy of GENERAL MOTORS CORP.
Relay Block - Rear, Label Usage

Fuse Rating Description
Driver Door Unlock Relay - Driver Door Unlock Control
RT DRL - Right Daytime Running Lamp (DRL) Control
LT DRL - Left Daytime Running Lamp (DRL) Control
Rear Defogger Relay - Rear Window Defogger Grid
