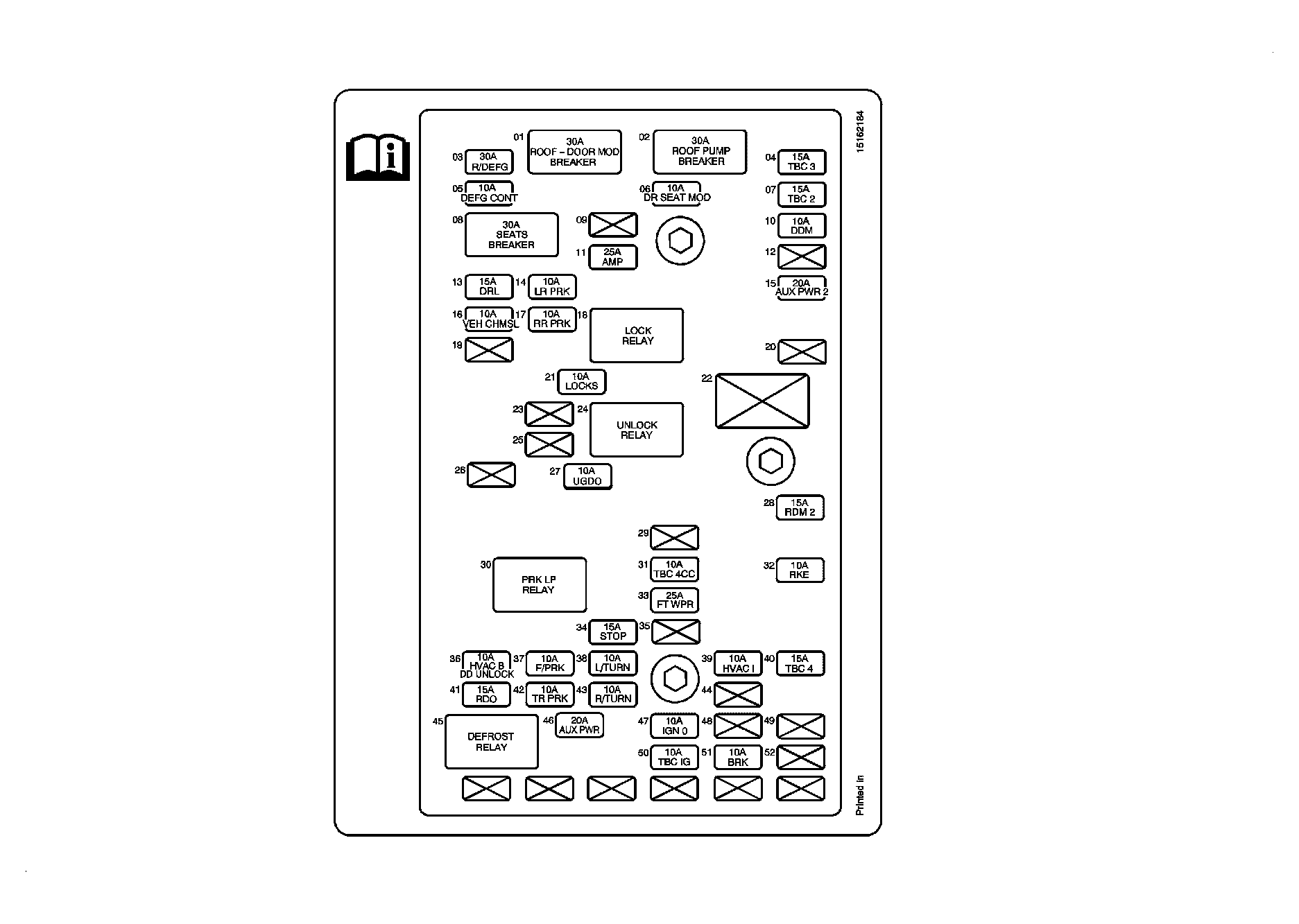

Fuse Block - Rear, Label
Fuse Block - Rear, Label Usage
| No. | Fuse | Rating | Description |
|---|---|---|---|
| 1 | ROOF-DOOR MOD Circuit Breaker | 30A | Roof Door Module |
| 2 | ROOF PUMP Circuit Breaker | 30A | Retractable Roof Motor Left Relay, Retractable Roof Motor Right Relay |
| 3 | R/DEFG Fuse | 30A | Defrost Relay, Rear Defogger Relay |
| 4 | TBC 3 Fuse | 15A | Body Control Module |
| 5 | DEFG CONT Fuse | 10A | Outside Rear View Mirror - Driver, Outside Rear View Mirror - Passenger, Rear Defogger Relay |
| 6 | DR SEAT MOD Fuse | 10A | Memory Seat Module - Driver |
| 7 | TBC 2 Fuse | 15A | Body Control Module |
| 8 | SEATS Circuit Breaker | 30A | Seats |
| 9 | - | - | Not Used |
| 10 | DDM Fuse | 10A | Outside Rear View Mirror Switch, Driver Door Unlock Relay |
| 11 | AMP Fuse | 25A | Audio Amplifier |
| 12 | - | - | Not Used |
| 13 | DRL Fuse | 15A | DRL Relays |
| 14 | LR PRK Fuse | 10A | Left Rear Park Lamps |
| 15 | AUX PWR 2 Fuse | 20A | Auxiliary Power Outlet - Rear |
| 16 | VEH CHMSL Fuse | 10A | Center High Mounted Stop Lamp |
| 17 | RR PRK Fuse | 10A | Right Rear Park Lamps |
| 18 | LOCK Relay | - | Power Door Lock |
| 19-20 | - | - | Not Used |
| 21 | LOCKS Fuse | 10A | Lock and Unlock Relays |
| 22- 23 | - | - | Not Used |
| 24 | UNLOCK Relay | - | Power Door Unlocks |
| 25-26 | - | - | Not Used |
| 27 | UGDO Fuse | 10A | Inside Rear View Mirror |
| 28 | RDM 2 Fuse | 15A | Roof Door Module |
| 29 | - | - | Not Used |
| 30 | PRK LP Relay | - | Park Lamps |
| 31 | TBC 4CC Fuse | 10A | Body Control Module |
| 32 | RKE Fuse | 10A | Remote Control Door Lock Receiver |
| 33 | FT WPR Fuse | 25A | Windshield Wiper Motor |
| 34 | STOP Fuse | 15A | Stop Lamps |
| 35 | - | - | Not Used |
| 36 | HVAC B DD UNLOCK Fuse | 10A | HVAC Control Module |
| 37 | F/PRK Fuse | 10A | Front Park Lamps |
| 38 | L/TURN Fuse | 10A | Left Turn Lamps |
| 39 | HVAC I Fuse | 10A | HVAC Control Module, Turn Signal Multifunction Switch, Air Temperature Sensor, Center Switch Console |
| 40 | TBC 4 Fuse | 15A | Body Control Module |
| 41 | RDO Fuse | 15A | Radio |
| 42 | TR PRK FUSE | 10A | Trailer Tow Park Lamps Feed |
| 43 | R/TURN Fuse | 10A | Right Turn Lamps |
| 44 | - | - | Not Used |
| 45 | DEFROST Relay | - | Rear Defogger, Outside Rear View Mirrors |
| 46 | AUX PWR Fuse | 20A | Auxiliary Power Outlets |
| 47 | IGN 0 Fuse | 10A | Retractable Roof, Powertrain Control Module, Automatic Transmission |
| 48-49 | - | - | Not Used |
| 50 | TBC IG Fuse | 10A | Body Control Module |
| 51 | BRK Fuse | 10A | Electronic Brake Control Module |
| 52 | - | - | Not Used |
