Fuse Block - Rear, Bottom View

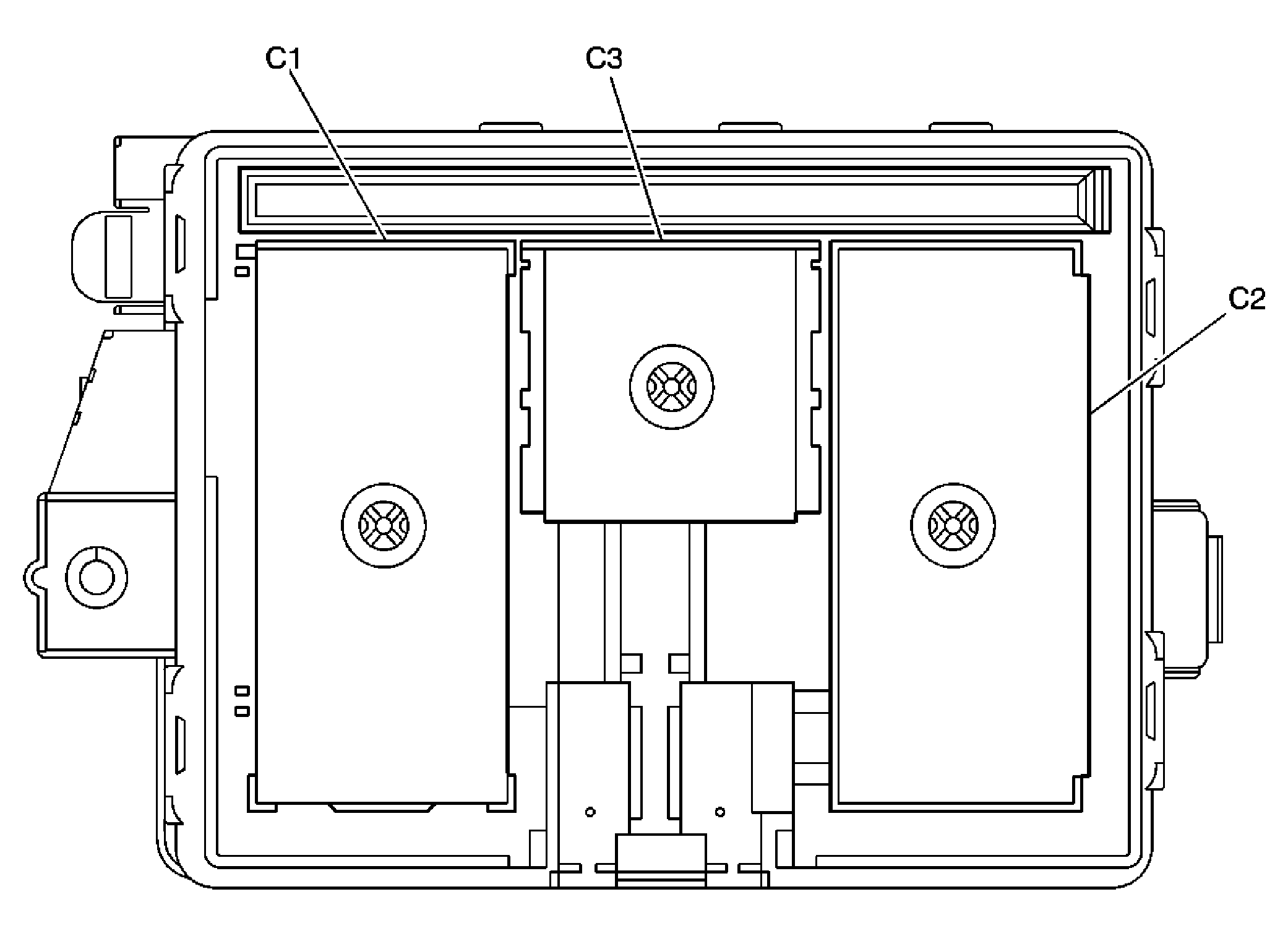

Fig 1: Fuse Block - Rear, Bottom Identification View
GM1215019Courtesy of GENERAL MOTORS CORP.

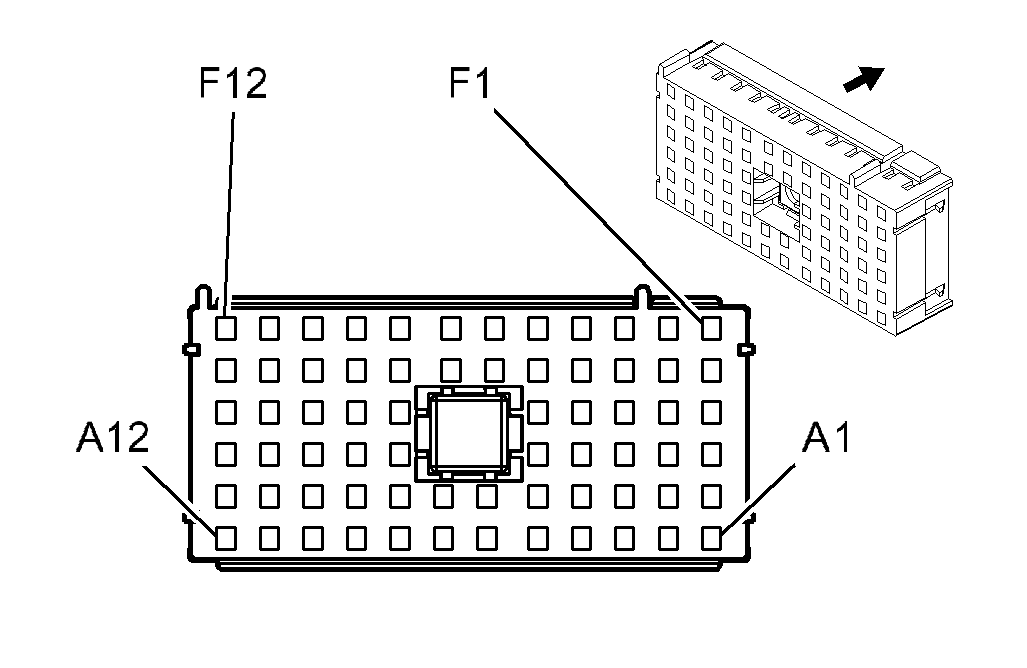

Fuse Block - Rear C1

GM647951Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319896
  • 68-Way F Metri-Pack 280 Series, Flexlock (BK)
Pin Wire Color Circuit Number Function
A1 - - Not Used
A2 BN/WH 230 Instrument Panel Lamp Dimming Control
A3 - - Not Used
A4 L-GN 24 Backup Lamp Supply Voltage
L-GN 24 Backup Lamp Supply Voltage
A5 L-GN 1391 Driver Door Unlock Relay Control
A6 BN 4 Accessory Voltage
A7 YE 143 Accessory Voltage
A8 BN 341 Ignition 3 Voltage
BN 341 Ignition 3 Voltage
A9 PK 1020 Ignition 0 Voltage
A10-A11 - - Not Used
A12 OG 1732 Inadvertent Courtesy Lamps Supply Voltage
OG 1732 Inadvertent Courtesy Lamps Supply Voltage
B1-B3 - - Not Used
B4 WH 17 Stop Lamp Switch Signal
B5 L-BU 1320 Stop Lamp Supply Voltage
B6-B7 - - Not Used
B8 BN 341 Ignition 3 Voltage
BN 341 Ignition 3 Voltage
B9-B12 - - Not Used
C1 OG 4340 Battery Positive Voltage
C2 - - Not Used
C3 BN 2309 Front Park Lamps Supply Voltage
C4 L-BU 2114 Left Turn Signal Lamps Supply Voltage
L-BU 2114 Left Turn Signal Lamp Supply Voltage
C5 YE 685 Left Turn Signal Lamps Supply Voltage
C6-C7 - - Not Available
C8 BN 341 Ignition 3 Voltage
C9-C12 - - Not Used
D1 OG 340 Battery Positive Voltage
D2 - - Not Used
D3 BN 2109 Trailer Park Lamp Supply Voltage
D4 D-BU 2115 Right Turn Signal Lamps Supply Voltage
D-BU 2115 Right Turn Signal Lamps Supply Voltage
D5 TN 686 Right Turn Signal Lamps Supply Voltage
D6-D7 - - Not Available
D8 - - Not Used
D9 OG 300 Ignition 3 Voltage
D10 TN 294 Door Lock Actuator Unlock Control
D11-D12 - - Not Used
E1-E5 - - Not Used
E6 WH 1390 Off/Run/Crank Voltage
E7 PK 1020 Ignition 0 Voltage
E8-E9 - - Not Used
E10 D-BU/WH 2218 Class 2 Serial Data
E11 - - Not Used
E12 PK 639 Ignition 1 Voltage
F1 - - Not Used
F2 L-BU 292 Rear Defog Switch Signal
F3 OG 1040 Battery Positive Voltage
OG 1040 Battery Positive Voltage
F4 PK 1020 Ignition 0 Voltage
F5-F7 - - Not Used
F8 BN 441 Ignition 3 Voltage
F9-F12 - - Not Used

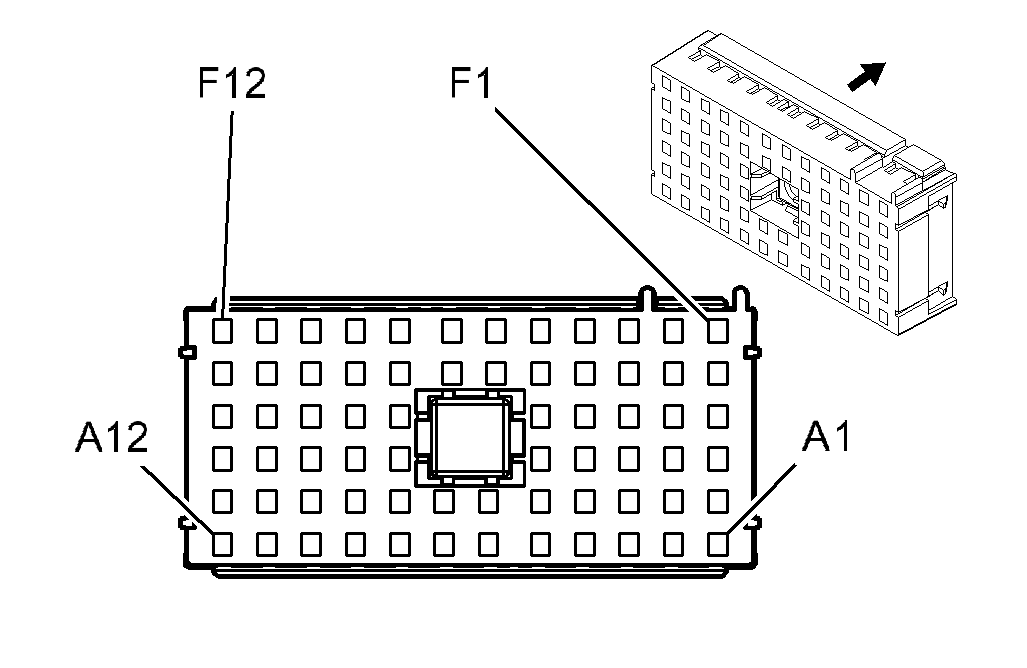

Fuse Block - Rear C2

GM647949Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319894
  • 68-Way F Metri-Pack 280 Series, Flexlock (WH0)
Pin Wire Color Circuit Number Function
A1 OG 3640 Battery Positive Voltage
A2 - - Not Used
A3 OG 1340 Battery Positive Voltage
A4-A5 - - Not Used
A6 OG 2740 Battery Positive Voltage
A7 - - Not Used
A8 OG 1240 Battery Positive Voltage
A9 PU 359 DRL Supply Voltage
A10-A11 - - Not Used
A12 BK/WH 746 Right Front Door Ajar Switch Signal
BK/WH 746 Right Front Door Ajar Switch Signal
B1 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
B2-B12 - - Not Used
C1 OG 3540 Battery Positive Voltage
C2-C9 - - Not Used
C10 OG 4140 Battery Positive Voltage
OG 4140 Battery Positive Voltage
C11-C12 - - Not Used
D1 OG 2240 Battery Positive Voltage (Base)
OG 3540 Battery Positive Voltage (Uplevel)
D2 BN 2509 Left Rear Park Lamps Supply Voltage
BN 2509 Left Rear Park Lamps Supply Voltage
D3-D4 - - Not Used
D5 OG 3740 Battery Positive Voltage (Uplevel)
D6-D7 - - Not Used
D8 TN 294 Door Lock Actuator Unlock Control
D9-D11 - - Not Used
D12 BK 1576 Rear Compartment Lid Release Switch Signal
E1 OG 840 Battery Positive Voltage
E2 BN 2509 Left Rear Park Lamps Supply Voltage
E3-E5 - - Not Used
E6 L-GN 1391 Driver Door Unlock Relay Control
E7-E8 - - Not Used
E9 L-GN/BK 592 DRL Relay Control
E10 OG 2040 Battery Positive Voltage
E11 - - Not Used
E12 BN 253 Rear Compartment Lid Release Relay Signal
F1 YE 820 CHMSL Supply Voltage
F2 BN/WH 2609 Right Rear Park Lamps Supply Voltage
BN/WH 2609 Right Rear Park Lamps Supply Voltage
F3-F5 - - Not Used
F6 GY 295 Door Lock Actuator Lock Control
GY 295 Door Lock Actuator Lock Control
F7 - - Not Used
F8 BK 1450 Ground
F9 - - Not Used
F10 GY 1698 Antenna Enable Signal
F11 - - Not Used
F12 PU 359 DRL Supply Voltage

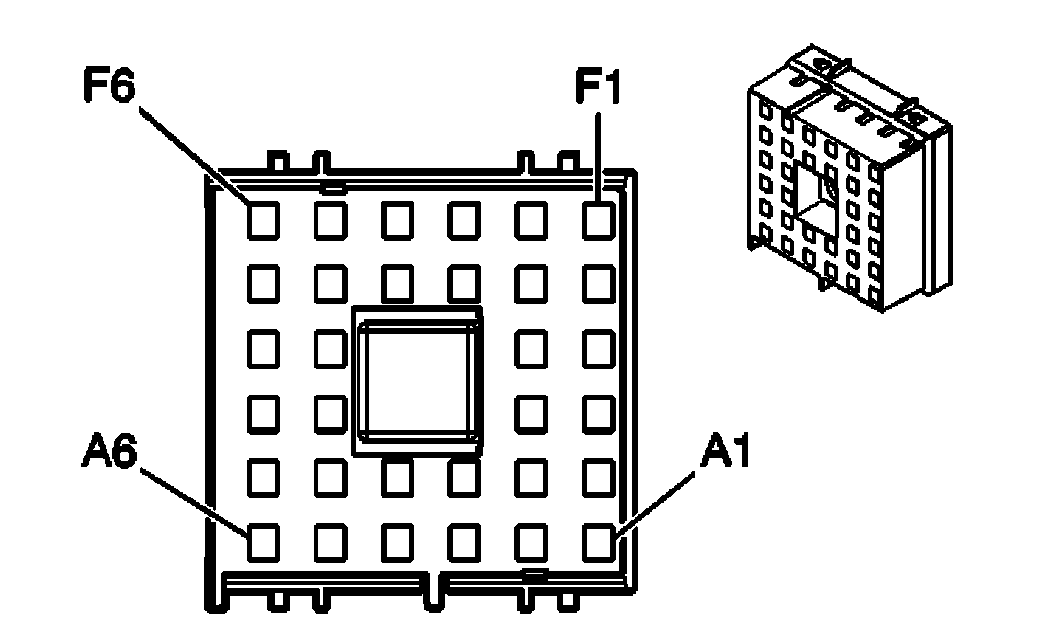

Fuse Block - Rear C3

GM647947Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319893
  • 32-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit Number Function
A1-A6 - - Not Used
B1-B5 - - Not Used
B6 GY/BK 690 Courtesy Lamp Low Control
C1-C6 - - Not Used
D1-D5 - - Not Used
D6 L-GN 24 Backup Lamp Supply Voltage
E1 OG 3140 Battery Positive Voltage
E2 PK 639 Ignition 1 Voltage
E3 - - Not Used
E4 OG 1840 Battery Positive Voltage
E5 - - Not Used
E6 D-BU/WH 2218 Class 2 Serial Data
F1-F2 - - Not Used
F3 PK 1020 Ignition 0 Voltage
F4 TN 294 Door Lock Actuator Unlock Control
F5 - - Not Used
F6 OG 1732 Inadvertent Courtesy Lamps Supply Voltage

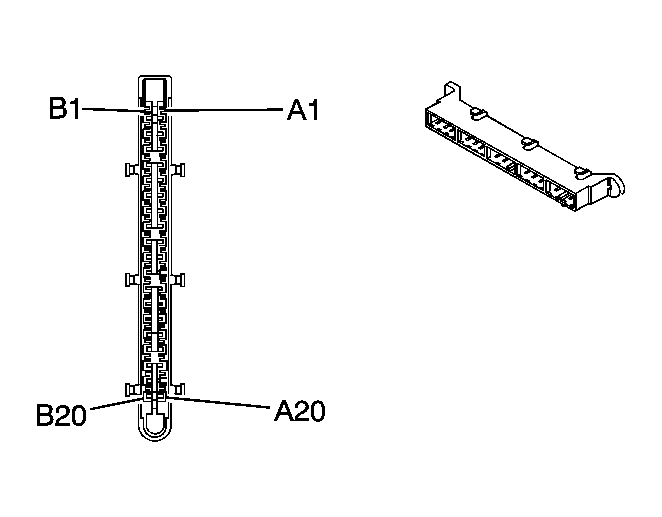

Fuse Block - Rear C4

GM1391766Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15401345
  • 40-Way F Metri-Pack Mixed Series GT 150 (BK-Body/GY-TPA)
Pin Wire Color Circuit Number Function
A1 OG 2140 Battery Positive Voltage
A2 - - Not Used
A3 BK/WH 746 Right Front Door Ajar Switch Signal
A4 - - Not Used
A5 GY/BK 255 Door Lock Relay Control
A6-A7 - - Not Used
A8 GY 1698 Antenna Select Power Signal
A9-A12 - - Not Used
A13 TN/BK 254 Door Unlock Relay Control
A14 WH 1080 Park Lamp Relay Control
A15-A17 - - Not Used
A18 PK 1390 Off/Run/Crank Voltage
A19-A20 - - Not Used
B1 BN/WH 230 Instrument Panel Lamp Dimming Control
B2 BN/WH 230 Instrument Panel Lamp Dimming Control
B3 GY/BK 690 Courtesy Lamp Supply Voltage
B4 OG 2240 Battery Positive Voltage
B5 BN 253 Rear Compartment Lid Release Relay Signal
B6 BK 1576 Rear Compartment Lid Release Switch Signal
B7 PU 359 DRL Supply Voltage
B8 PU 359 DRL Supply Voltage
B9 L-GN/BK 592 DRL Relay Control
B10-B11 - - Not Used
B12 L-GN 24 Backup Lamp Supply Voltage
B13 OG 4440 Battery Positive Voltage
B14 - - Not Used
B15 YE 343 Accessory Voltage
B16 - - Not Used
B17 OG 4040 Battery Positive Voltage
B18 OG 1732 Inadvertent Courtesy Lamps Supply Voltage
B19-B20 - - Not Used
