Wiper/Washer System Connector End Views

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	RD	228	Windshield Washer Pump Control
B	BK	250	Ground

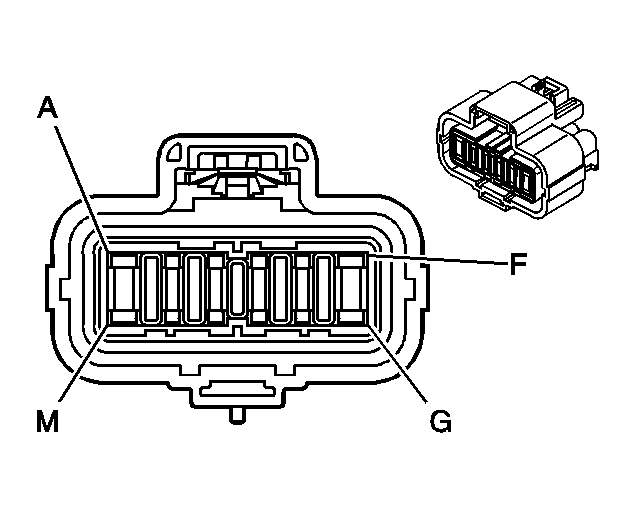

Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15373447 12-Way F GT 150, 280 SLD (BK)
Pin	Wire Color	Circuit No.	Function
A-B	-	-	Not Used
C	PK	94	Windshield Washer Switch Signal
D	D-BU	477	Windshield Wiper Switch Signal (1)
E	GY	478	Windshield Wiper Switch Signal (2)
F	YE	143	Accessory Voltage
G	D-GN	113	Windshield Wiper Switch On Signal
H	-	-	Not Used
J	OG	2268	Windshield Washer Relay Control
K-L	-	-	Not Used
M	BK	850	Ground
