Wiper/Washer System Component Views

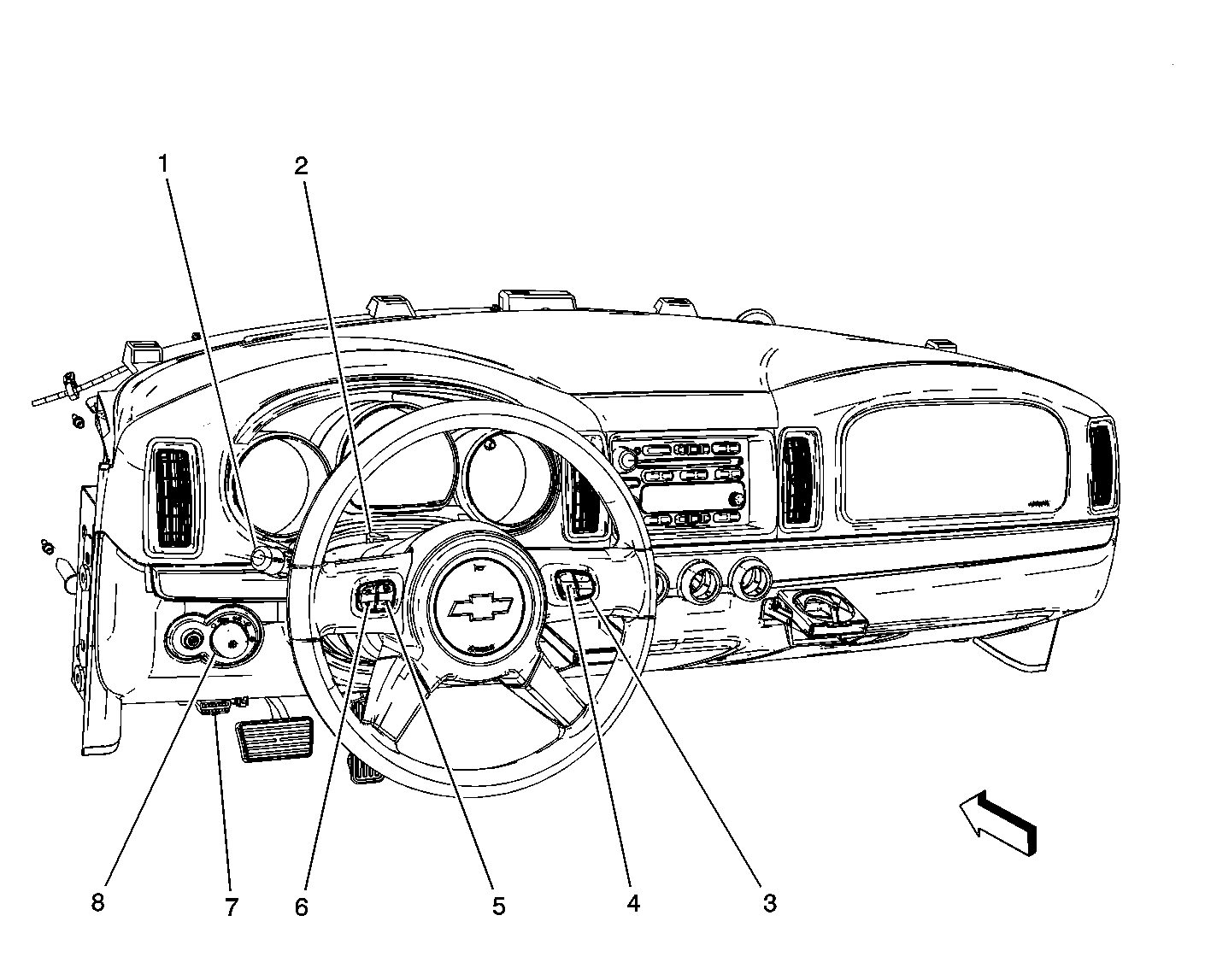

Fig 1: Headlamp Switch, Turn Signal/Multifunction Switch, Hazard Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Hazard Switch
3	Horn Switch
4	Mode/AM/FM Switch
5	Volume Up/Down Switch
6	Select/Personalization Switch
7	Fuel/Trip Switch
8	Data Link Connector (DLC)
9	Headlamp Switch

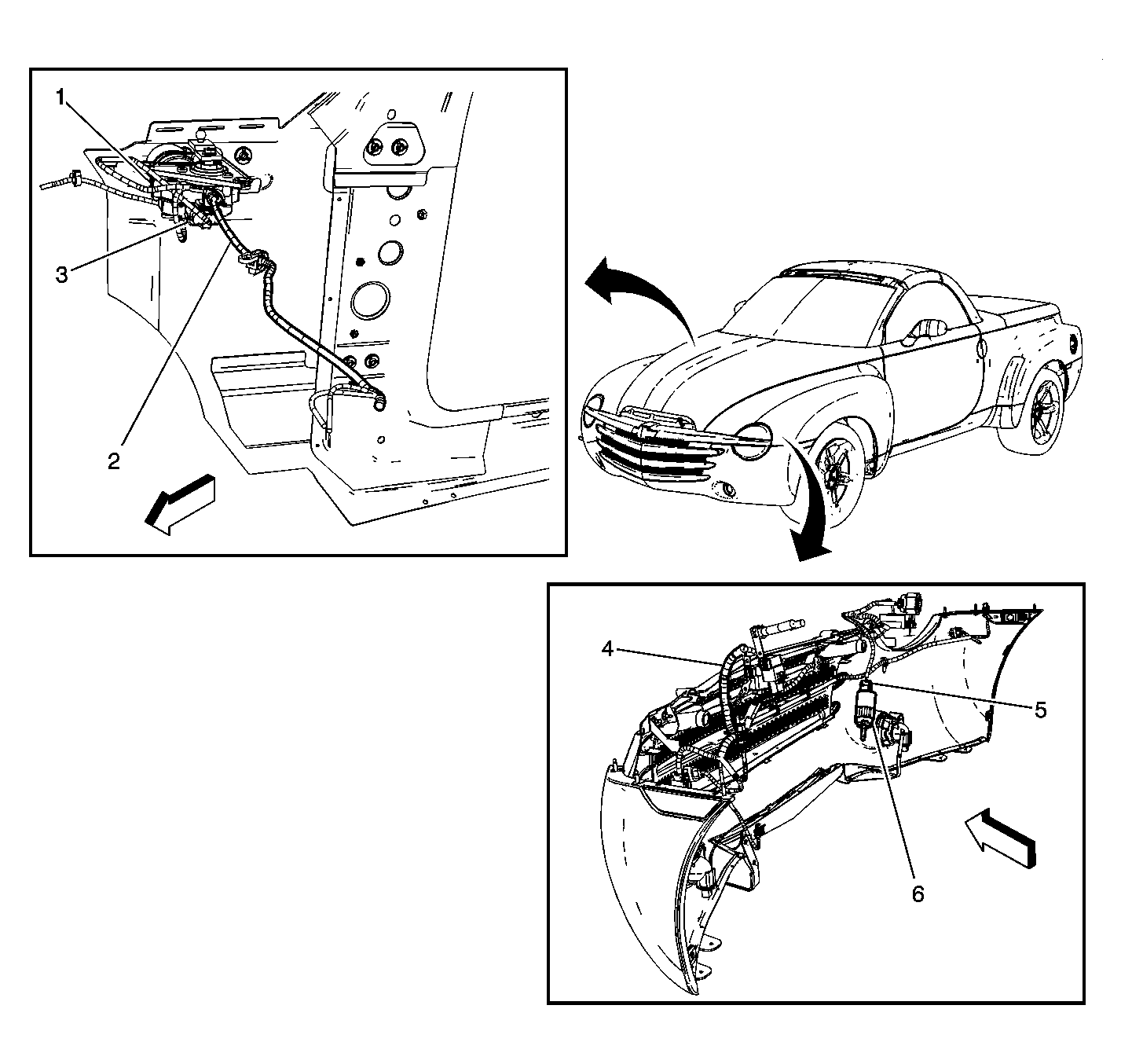

Fig 2: Wiper Washer Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	I/P Harness
3	Windshield Wiper Motor Connector
4	Front Lamp Harness
5	Windshield Washer Fluid Pump Connector
6	Windshield Washer Fluid Pump
