Section 24 (Theft Deterrent System)
>>
Component Locator
>>
Theft Deterrent System Component Views
Theft Deterrent System Component Views
WARNING:
This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

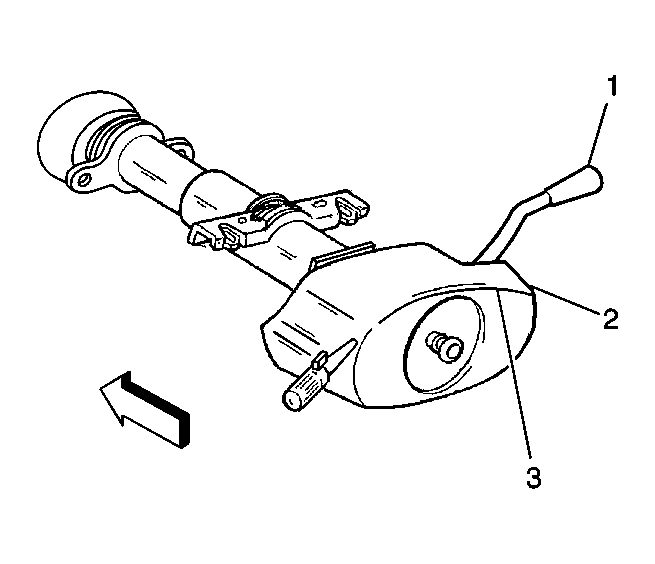

Fig 1: Passlock™ Theft Deterrent System Component View
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Tow/Haul Switch
2
Passlock™ Sensor and Ignition Switch Location
3
Shroud
