Installation Procedure

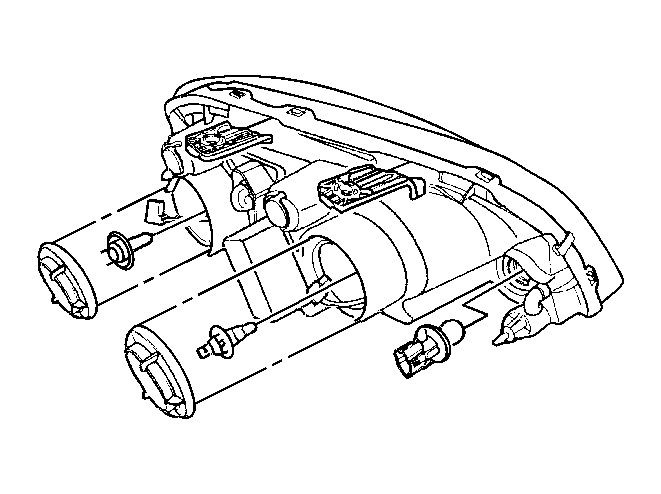

    Fig 1: Identifying Headlamp Assembly Bulbs
    GM1308853Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp bulb.
  2. Connect the headlamp bulb electrical connector.
  3. Install the cap concealing the headlamp bulb.
  4. Install the turn signal bulb.
  5. Connect the electrical connectors.

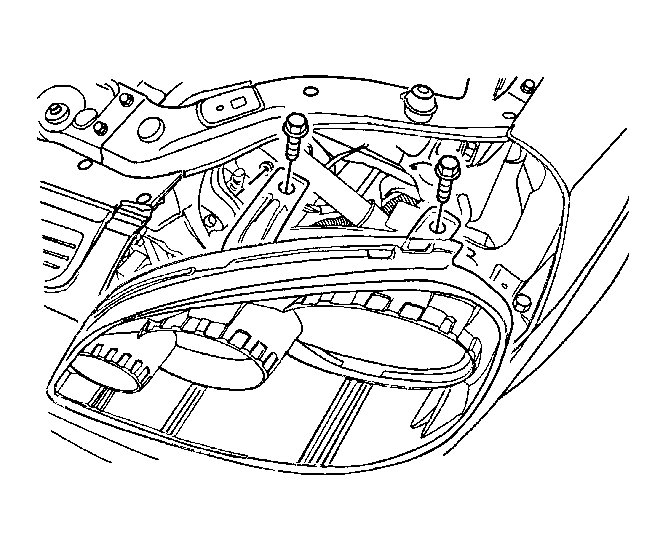

    6. Fig 2: View Of Headlamp Mounting Bolts
    GM1308850Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the headlamp assembly with the bolts and nut.

    Tighten:  Tighten the headlamp assembly bolts and nut to 4 N.m (35 lb in)  .

  7. Connect the negative battery cable.
