Installation Procedure

    Fig 1: View Of Front Fog Lamp Electrical Connector
    GM1308859Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb.
  2. Install the retaining wire.
  3. Install the fog lamp access cover.

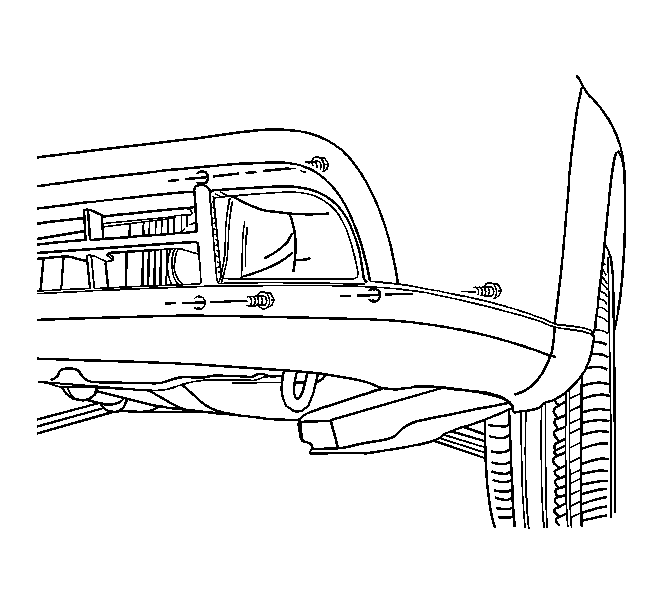

    4. Fig 2: View Of Front Fog Lamp And Bolts
    GM1308857Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector.
    5. NOTE: Refer to Fastener Notice .
  5. Install the front fog lamp with the bolts.

    Tighten:  Tighten the front fog lamp bolts to 4 N.m (35 lb in)  .

  6. Connect the negative battery cable.
