Installation Procedure

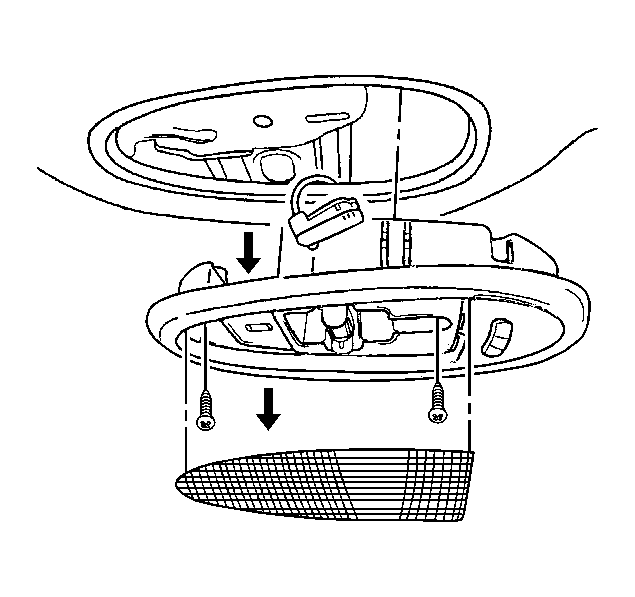

    Fig 1: View Of Dome Lamp, Lens, Screws And Electrical Connector
    GM1308869Courtesy of GENERAL MOTORS CORP.
  1. Install a new bulb.
  2. Connect the electrical connector.
    3. NOTE: Refer to Fastener Notice .
  3. Install the dome lamp housing to the headliner with the screws.
  4. Press the dome lamp lens onto the housing.
  5. Connect the negative battery cable.
