Installation Procedure

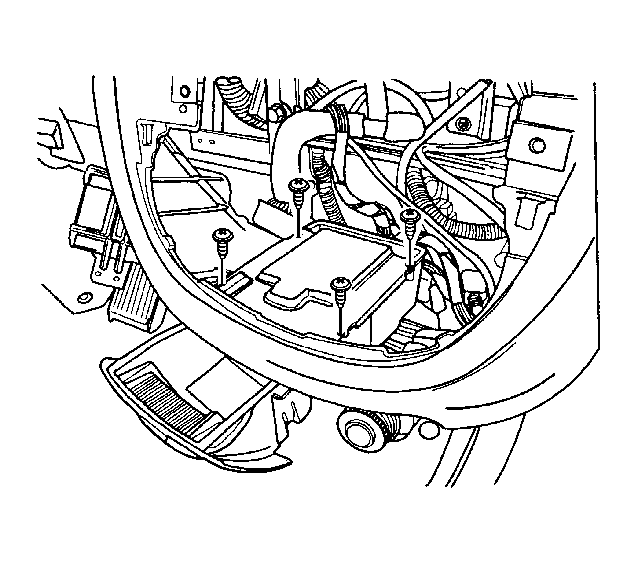

    Fig 1: View Of Ashtray Housing And Screws
    GM1308547Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the ashtray housing with screws.
  2. Install the instrument panel center molding.
