Front Panel

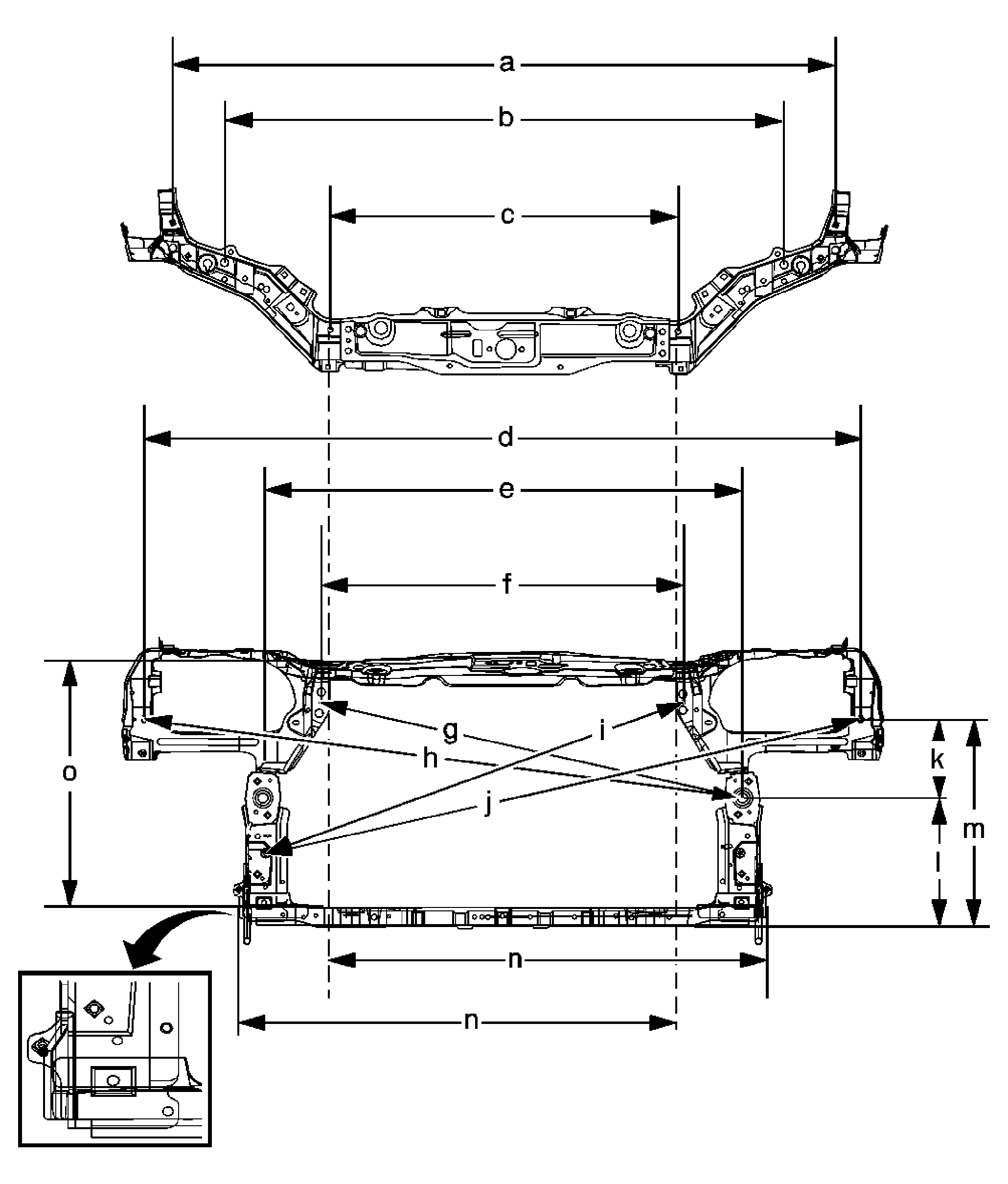

Fig 1: Identifying Underbody Front Panel Measurements
GM1308772Courtesy of GENERAL MOTORS CORP.
Points Dimensions (mm) Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A 1,307 51.45
B 1,104 43.46
C 690 27.16
D 1,420 55.90
E 950 37.40
F 720 28.34
G 856.6 33.72
H 1,218.1 47.95
I 889 35.00
J 1,224 48.18
K 156 6.14
L 256 10.07
M 412 16.22
N 823 32.40
O 500 19.68
