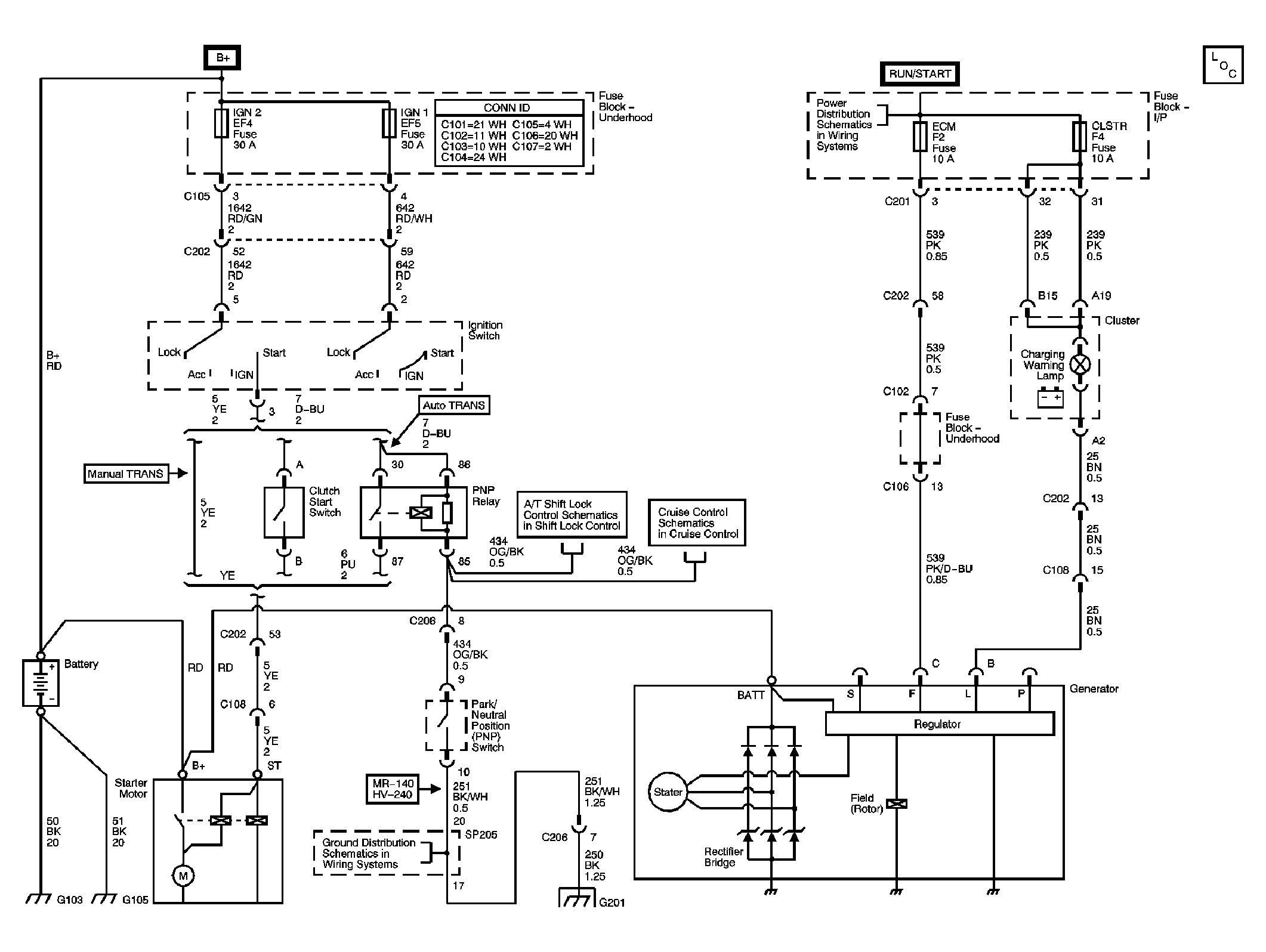

Home >> Chevrolet >> 2004 >> Optra5 Base, Standard >> Repair and Diagnosis >> Electrical >> Charging Systems >> Engine Electrical System >> Schematic and Routing Diagrams >> Starting and Charging Schematics
