Power Window Schematics

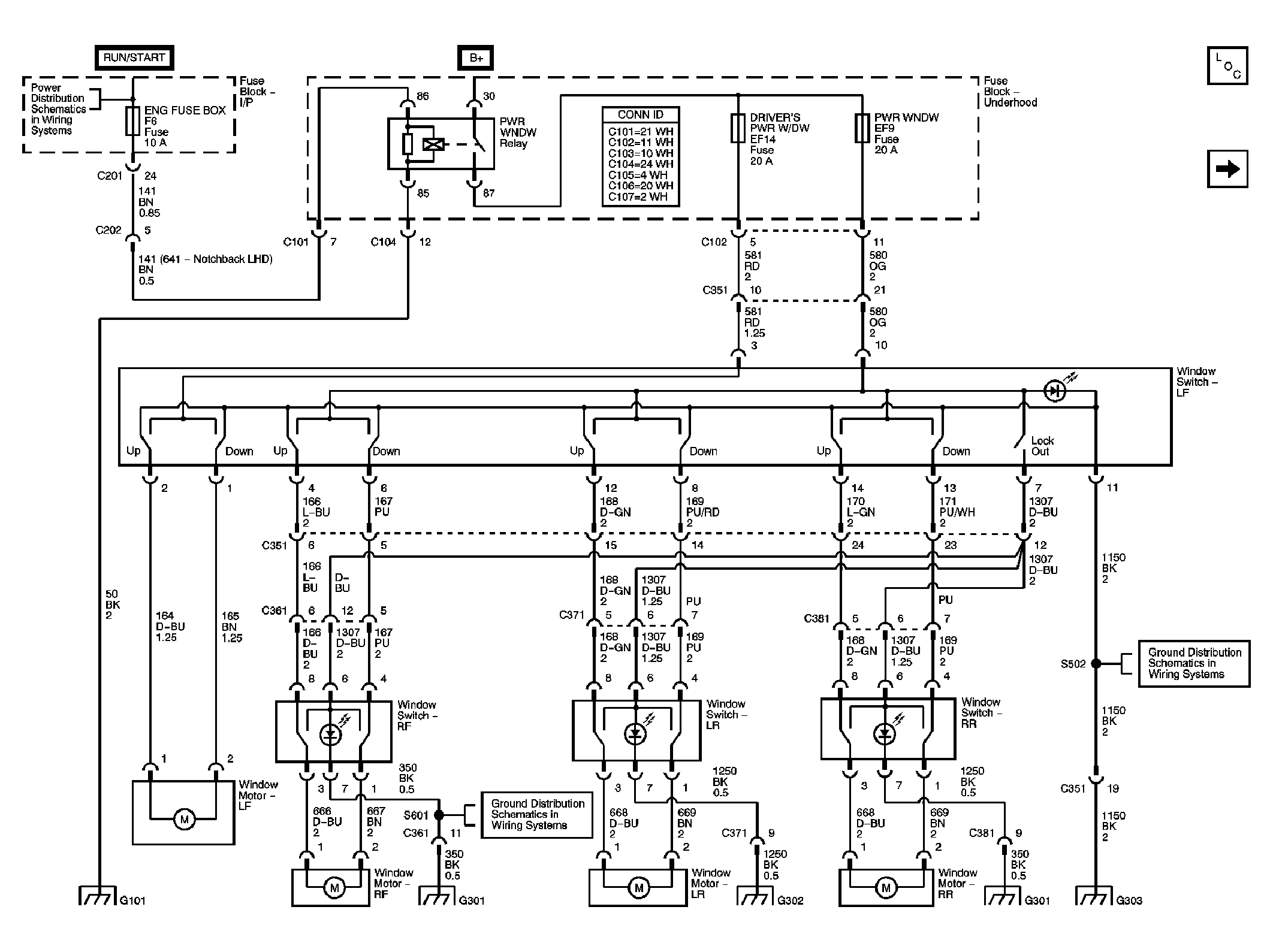

Fig 1: Driver Power Window Schematic

GM1371941

Courtesy of GENERAL MOTORS CORP.

Fig 2: Passenger Power Window Schematic

GM1360860

Courtesy of GENERAL MOTORS CORP.
