Removal Procedure

    Fig 1: View Of Door Hold-Open Link And Bolts
    GM1309066Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Remove the bolt and the door hold-open link from the body.

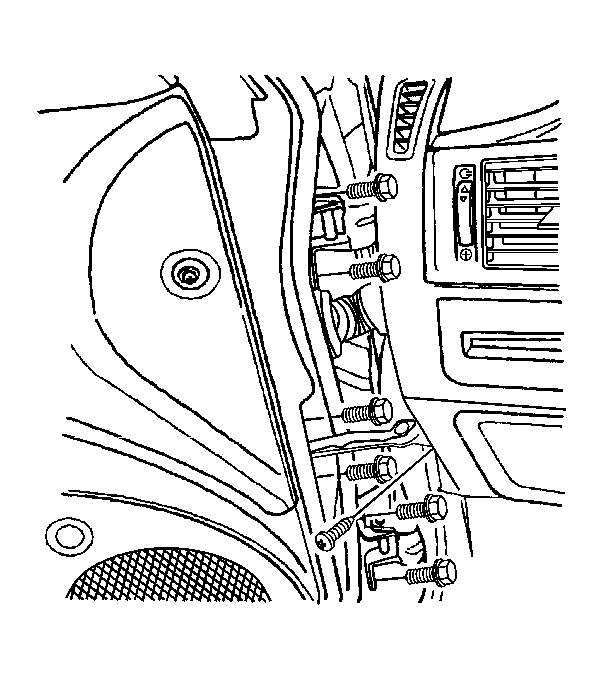

    3. Fig 2: Identifying Door Hinge Bolts
    GM1309067Courtesy of GENERAL MOTORS CORP.
  3. With the aid of an assistant, remove the door hinge bolts and the front door, (front door shown, rear door similar).
  4. Disconnect the body-to-door rubber grommet and the electrical connector.
