Installation Procedure

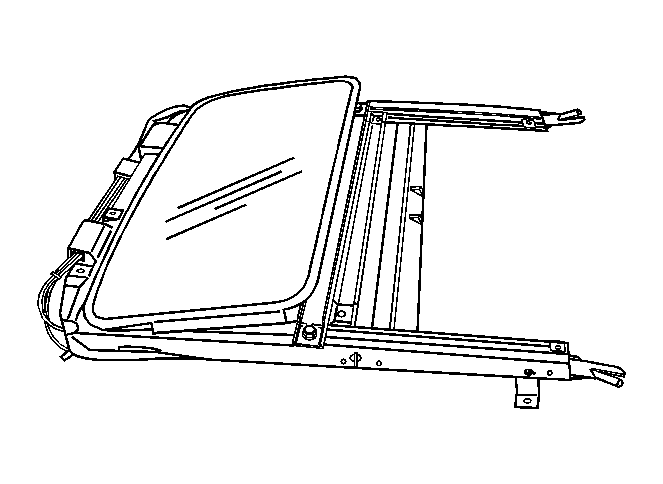

Fig 1: View Of Sunshade Components

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the drain channel with the bolts.
Tighten: Tighten the drain channel bolts to 3 N.m (27 lb in) .
Install the sunshade stops.
Install the sunroof. Refer to Sunroof Module Assembly Replacement .
