Installation Procedure

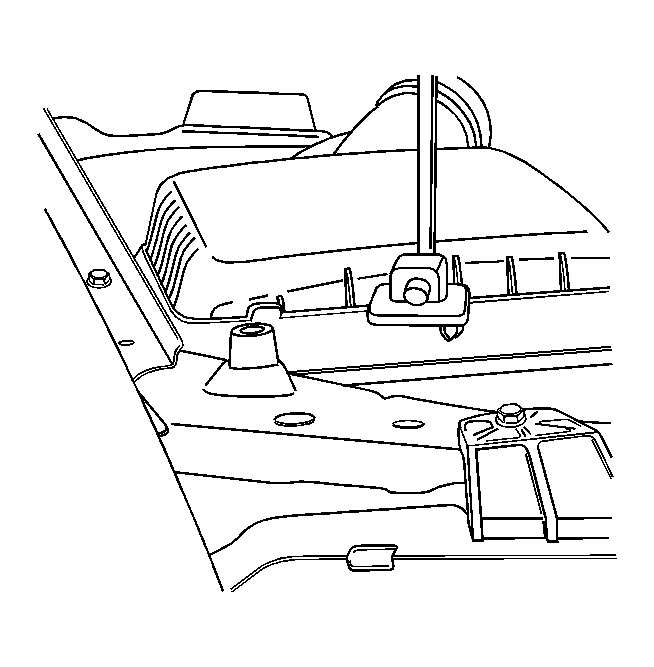

Fig 1: Identifying Hood Prop Rod

GM1309220

Courtesy of GENERAL MOTORS CORP.

Install the hood prop rod by snapping the base back into the radiator support.
