Removal Procedure

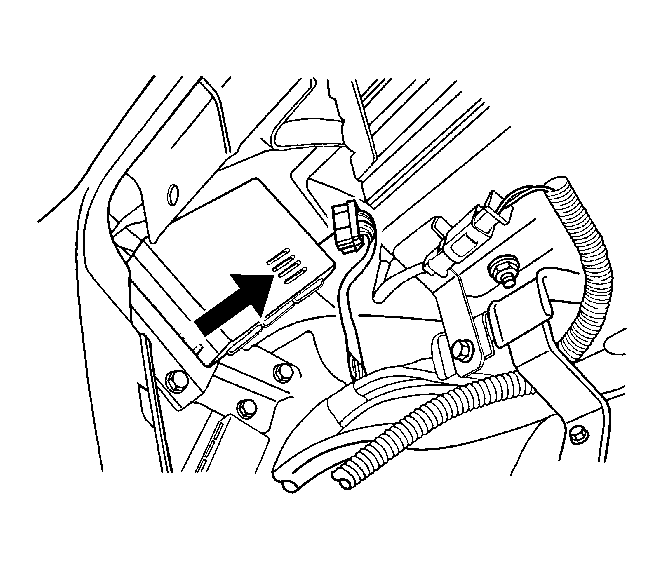

    Fig 1: View Of SSPS Control Module And Electrical Connector
    GM1290130Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect negative battery cable.
  2. Remove the glove box. Refer to Instrument Panel Storage Compartment Replacement in Instrument Panel, Gauges, and Console.
  3. Slide the speed sensitive power steering (SSPS) control module off from the control module bracket.
  4. Disconnect the electrical connector from the SSPS control module.
