Installation Procedure

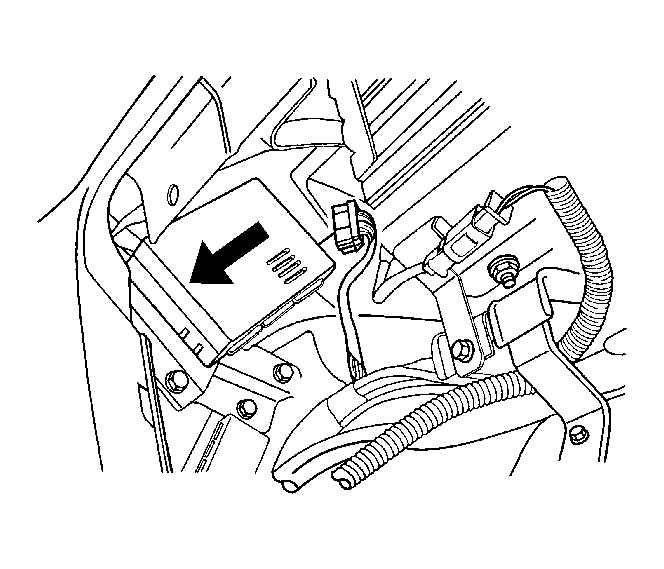

    Fig 1: View Of SSPS Control Module And Electrical Connector
    GM1290133Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the SSPS control module.
  2. Slide the SSPS control module onto the SSPS control module bracket.
  3. Install the ashtray.
  4. Connect the negative battery cable.
