Steering Assist Connector End Views

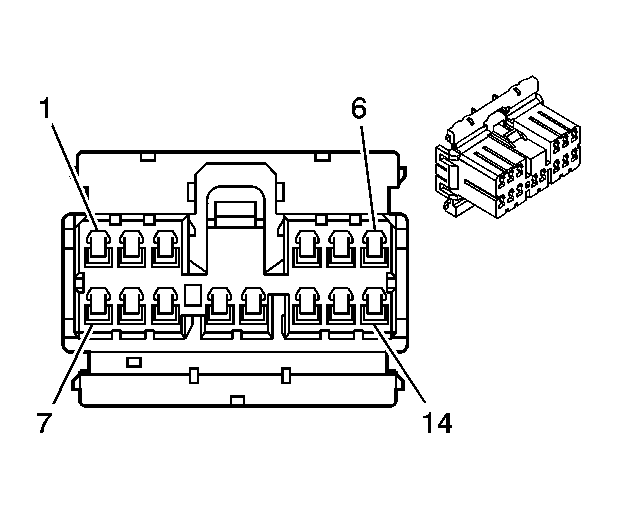

Power Steering Control Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 173852-1 14-Way F 070 Series Multilock Plug 14P (WH)
Pin	Wire Color	Circuit No.	Function
1	L-BU	1738	Variable Effort Steering Actuator Supply Voltage
2	PU	1703	Variable Effort Steering Actuator Control
3	BK/WH	451	Steering Wheel Sensor Ground
4	-	-	Not Used
5	GY	1416	Battery Positive Voltage
6	D-GN/WH	817	Vehicle Speed Sensor (VSS) Signal
7	-	-	Not Used
8	PK	239	Ignition 1 Voltage
9	BN	956	Speed Sensitive Power Steering (SSPS) Warning Lamp Control
10	BK	1050	Ground
11-12	-	-	Not Used
13	D-BU	555	Serial Data
14	L-BU	1533	Steering Wheel Sensor Signal

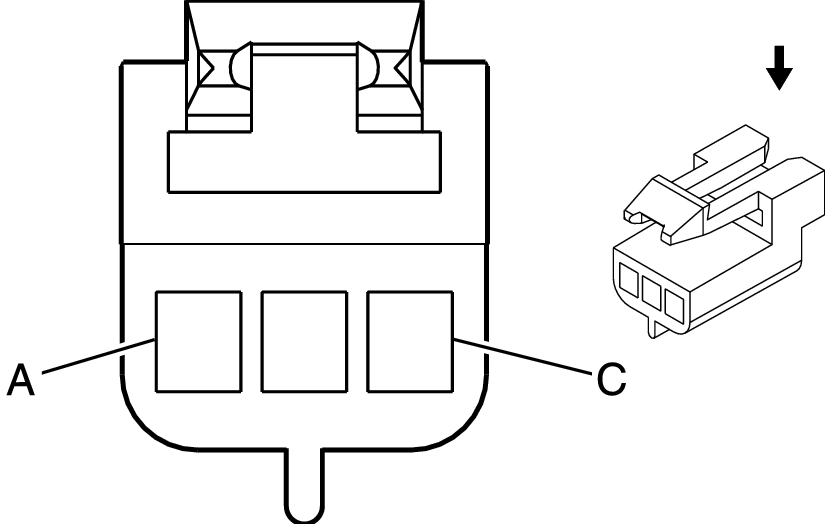

Steering Wheel Position Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		PED 12064758 3-Way F Metri-Pack 150 Series, Unsealed (BK)
Pin	Wire Color	Circuit No.	Function
1	GY	1416	Battery Positive Voltage
2	L-BU	1533	Steering Wheel Sensor Signal
3	BK/WH	451	Ground

Variable Effort Steering Actuator

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		PED 12052643 2-Way F Metri-Pack 150 Series, Sealed (BN)
Pin	Wire Color	Circuit No.	Function
A	L-GN	1703	Variable Effort Steering Actuator Control
B	BN/BK	1738	Variable Effort Steering Actuator Supply Voltage
