Steering Assist Component Views

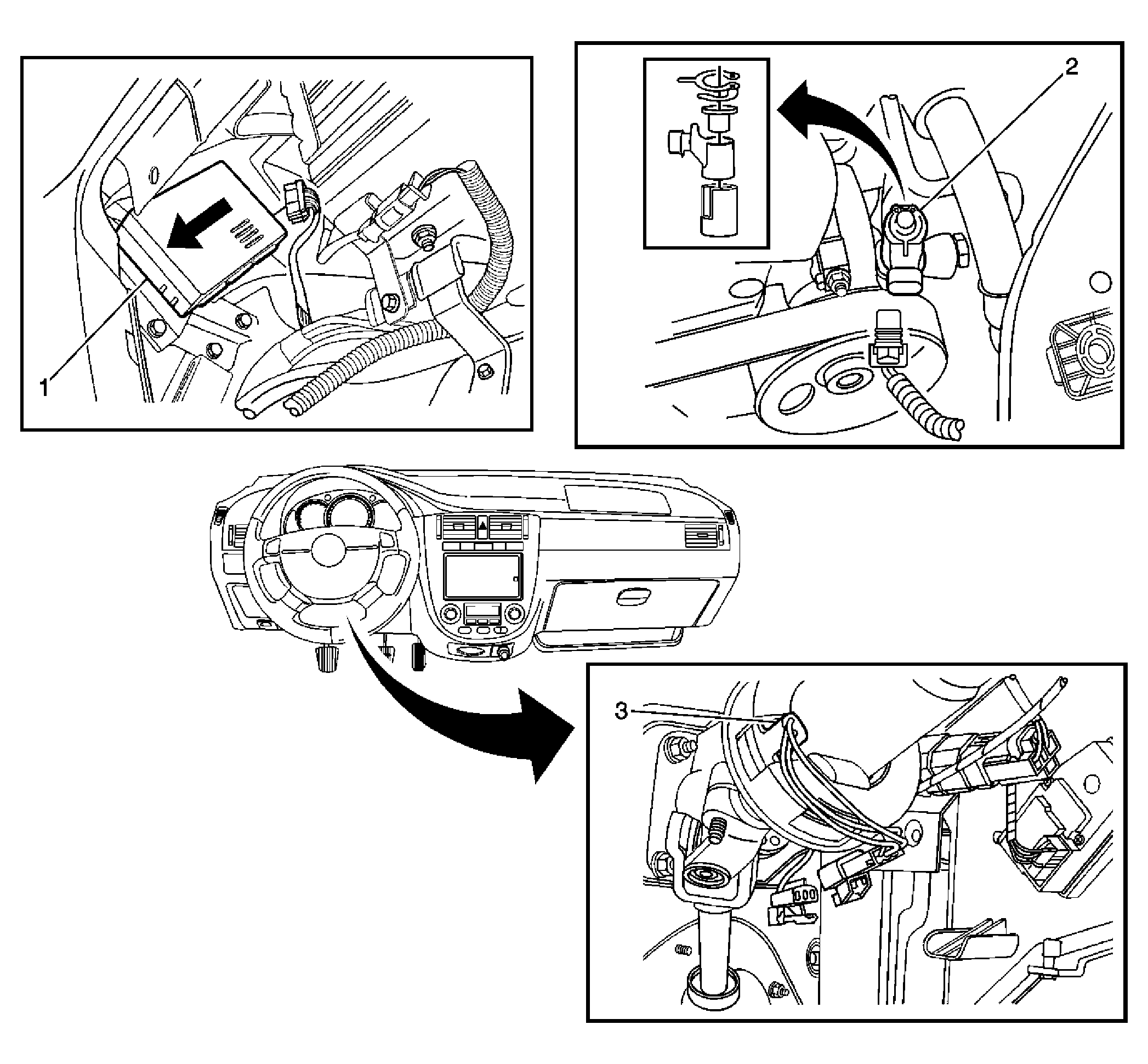

Fig 1: Identifying Control Module, Steering Actuator And Position Sensor
GM1480996Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Control Module
2 Variable Effort Steering Actuator
3 Steering Wheel Position Sensor
