Cooling System Component Views

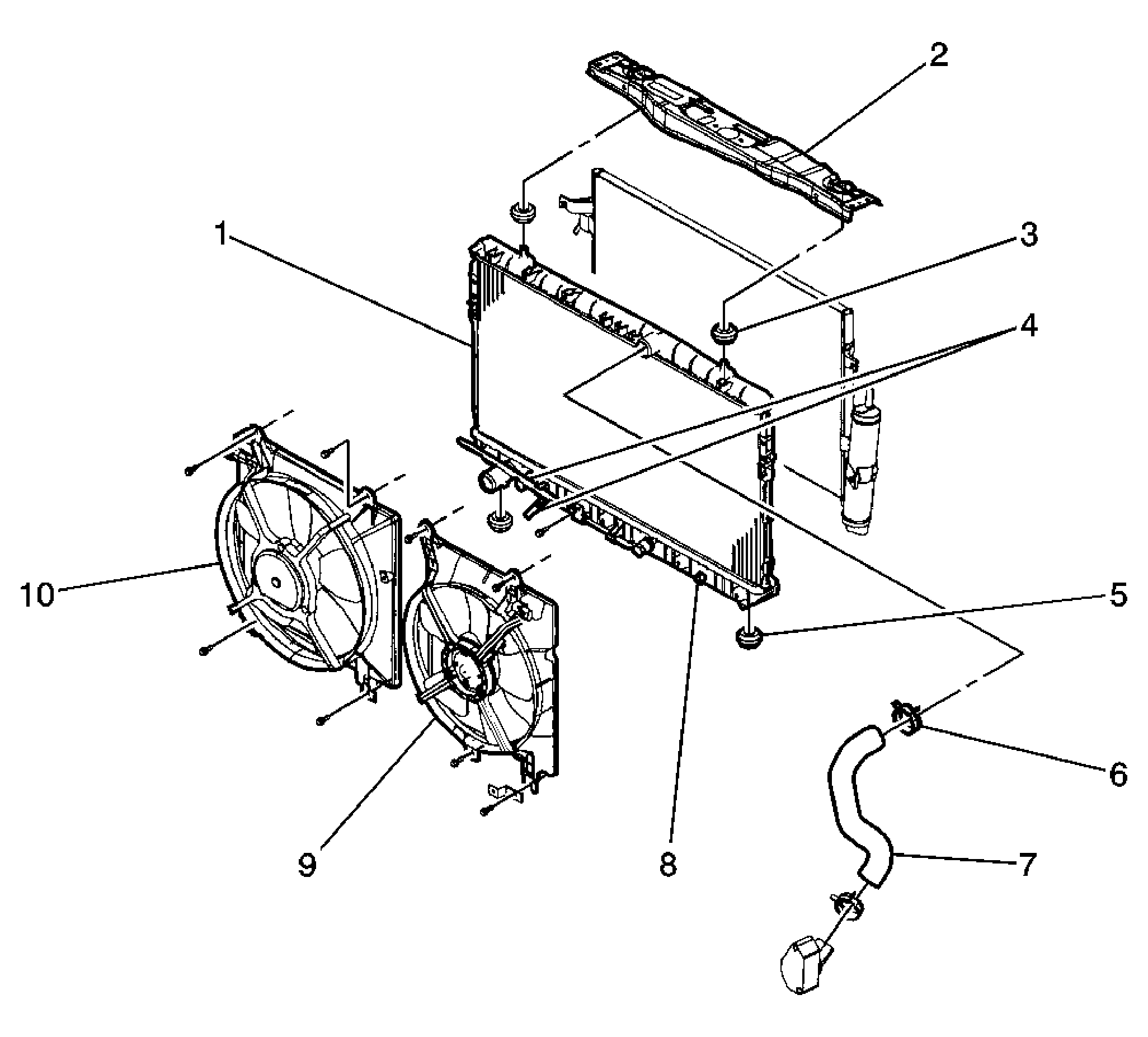

| Callout | Component Name |
|---|---|
| 1 | Radiator |
| 2 | Front Upper Center Panel |
| 3 | Upper Radiator Bumper |
| 4 | Holder Transmission Fluid Pipe - Automatic Transmission Only |
| 5 | Lower Radiator Bumper |
| 6 | Spring Clamp |
| 7 | Upper Radiator Hose |
| 8 | Drain Cock |
| 9 | Auxiliary Cooling Fan |
| 10 | Main Cooling Fan |

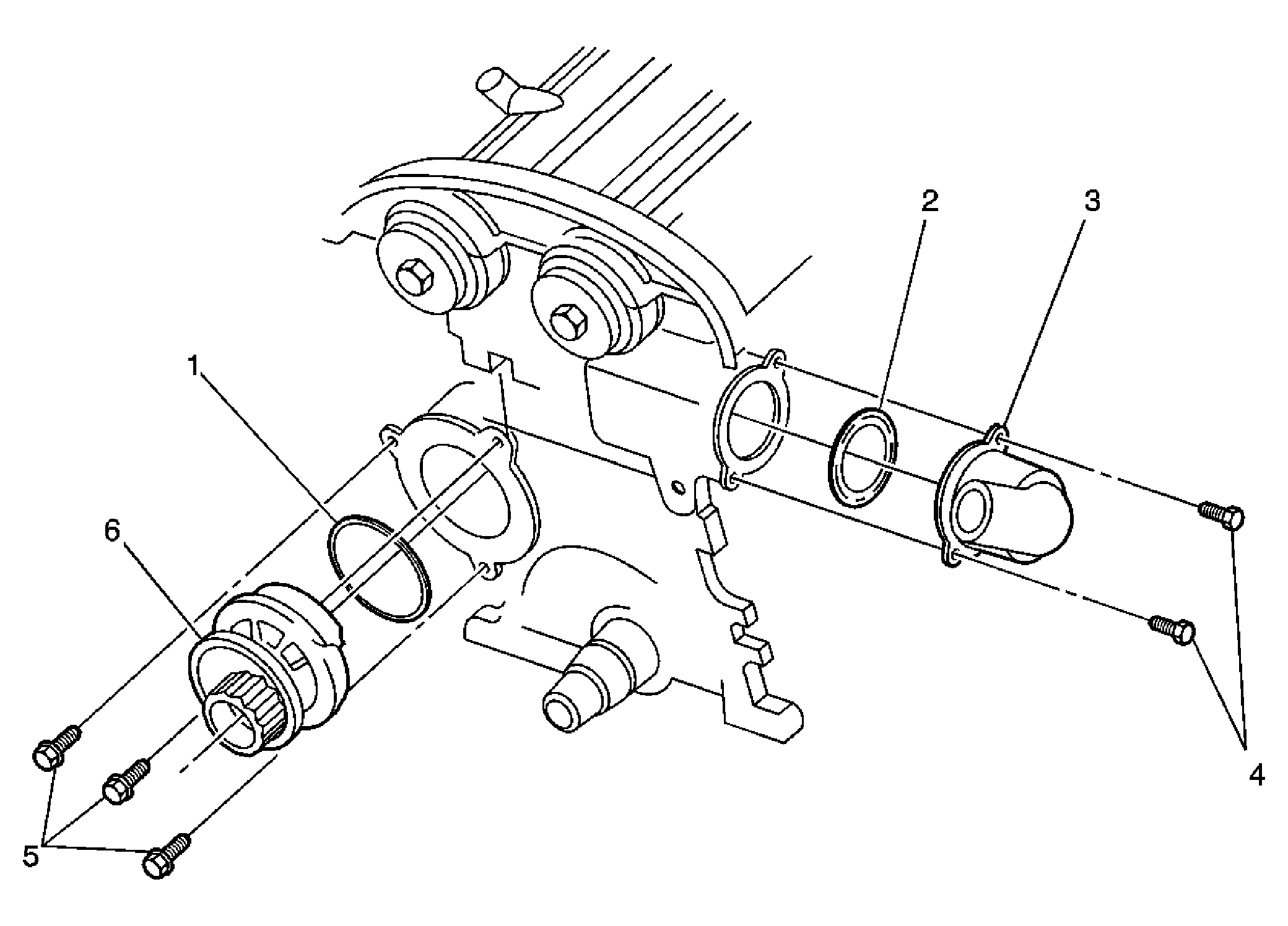

| Callout | Component Name |
|---|---|
| 1 | Cylinder Block Seal Ring |
| 2 | Seal Ring |
| 3 | Thermostat Housing |
| 4 | Bolt |
| 5 | Bolt |
| 6 | Water Pump |

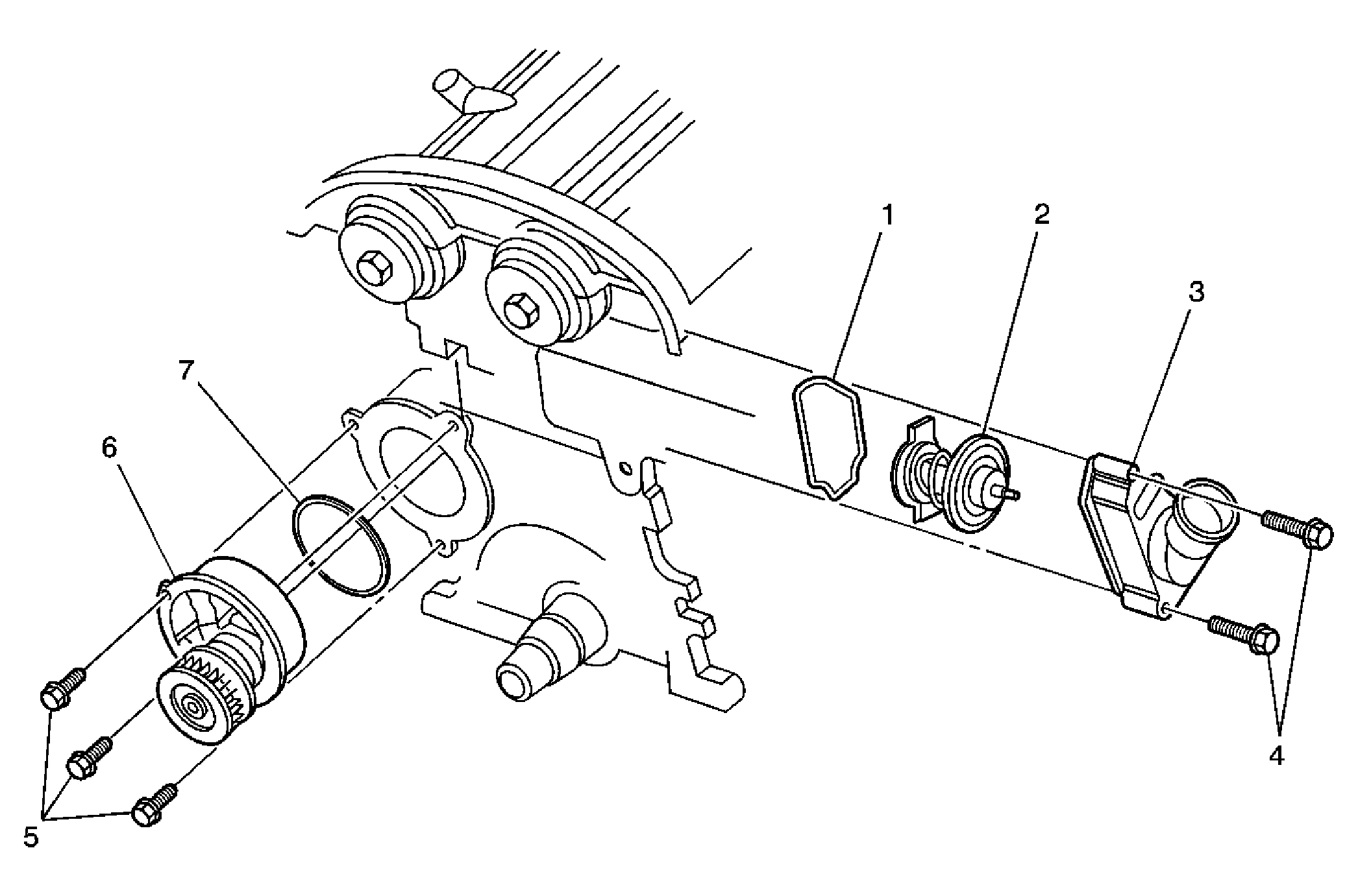

| Callout | Component Name |
|---|---|
| 1 | Seal Ring |
| 2 | Thermostat |
| 3 | Thermostat Housing |
| 4 | Thermostat Housing Mounting Bolt |
| 5 | Coolant Pump Mounting Bolt |
| 6 | Coolant Pump |
| 7 | Seal Ring |
