Installation Procedure

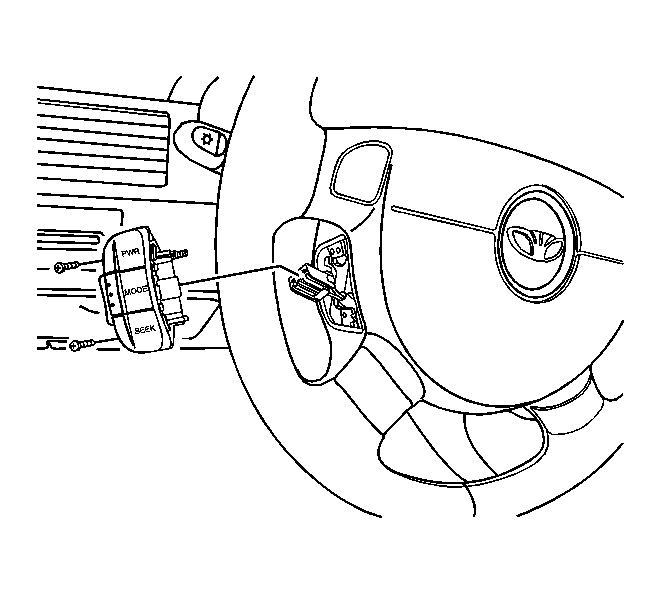

    Fig 1: View Of Steering Wheel Control Switch Assembly
    GM1308874Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the audio remote controller with the screws.
  2. Connect the negative battery cable.
