Steering Wheel and Column Component Views

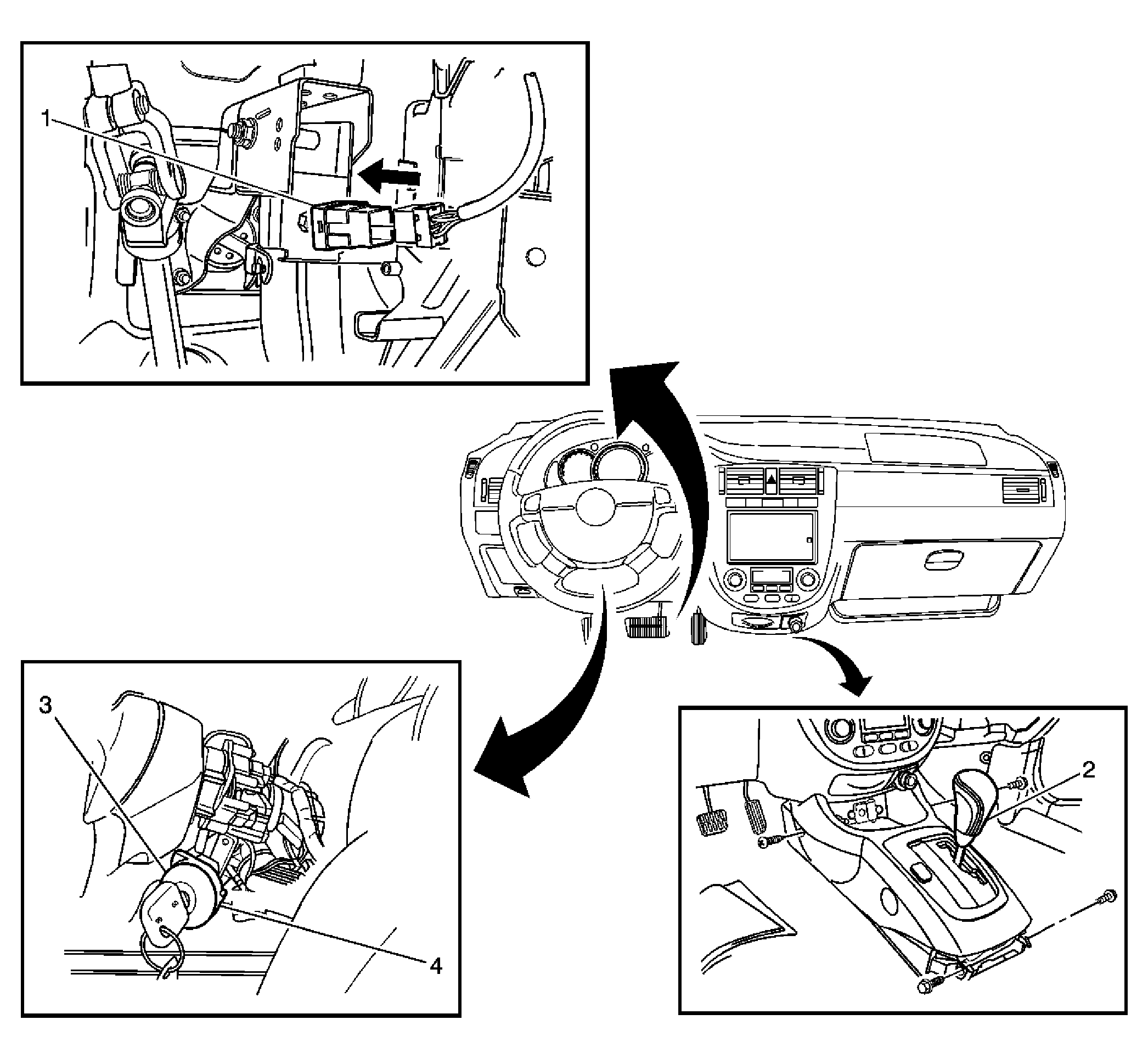

Fig 1: Identifying Steering Wheel And Column Components
GM1480984Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Stop Lamp Switch
2 Automatic Transmission (A/T) Select Lever
3 Ignition Lock Cylinder Control Actuator
4 Ignition Key Cylinder
