Wiper/Washer Connector End Views

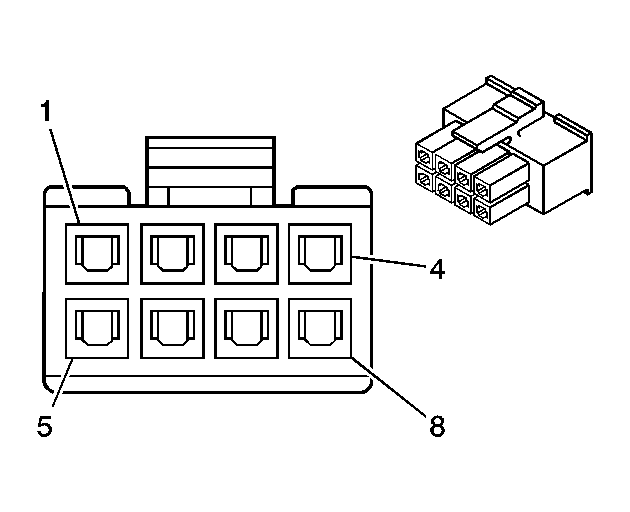

Rain Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		MLX 43645-0800 8-Way F Micro-Fit (3.0) 8 Circuit Single Row Receptacle
Pin	Wire Color	Circuit Number	Function
1	D-BU	1112	Outside Moisture Sensor Signal 1
2	D-GN	2228	Outside Moisture Sensor Signal 2
3	BK	850	Ground
4	PK	639	Ignition 1 Voltage
5	YE	112	Windshield Wiper Switch Signal 1
6	RD	228	Windshield Wiper Pump Control
7	L-GN	227	Outside Moisture Sensor Signal 2
8	-	-	Not Used

Wiper Motor Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610394 3-Way F SDL Series (WH)
Pin	Wire Color	Circuit Number	Function
1	WH	393	Rear Window Wiper Motor Control
2	BK	750	Ground
3	PK	441	Ignition 3 Voltage

Windshield Washer Fluid Pump (Notchback)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 640605 2-Way F 090 WP Series (WH)
Pin	Wire Color	Circuit Number	Function
1	BK	50	Ground
2	RD	228	Washer Switch Signal

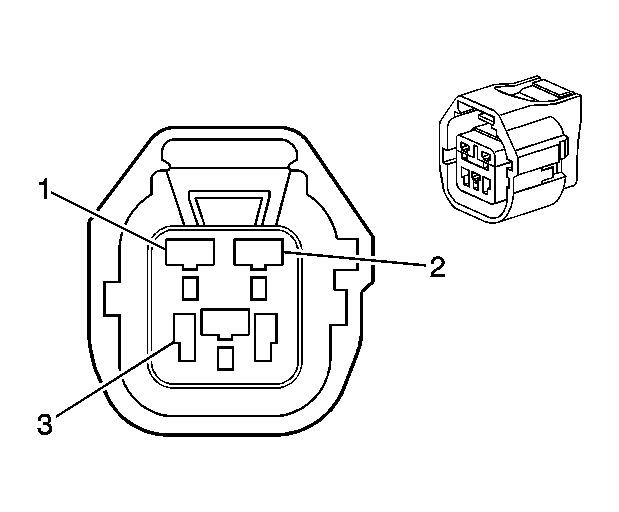

Windshield Washer Fluid Pump (Hatchback)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 641362 3-Way F Connector (GY)
Pin	Wire Color	Circuit Number	Function
1	RD	228	Windshield Washer Pump Control
2	BK	1150	Ground
3	D-GN	392	Rear Window Wiper Motor Control

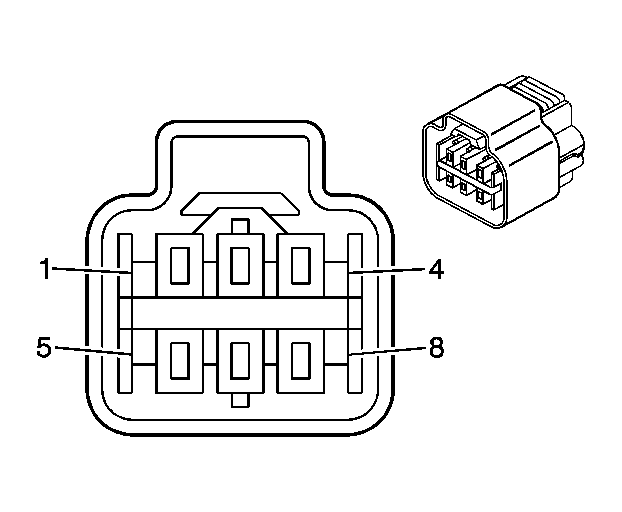

Windshield Wiper Motor (w/Rain Sensor)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KUM PB 625-08027 8-Way F NMWP 08F-B Ass'y (BK)
Pin	Wire Color	Circuit Number	Function
1	D-GN	95	Windshield Wiper Motor Low Speed
2	BN	96	Windshield Wiper Switch Off/Delay Signal
3	BK	1150	Ground
4	L-GN	227	Outside Moisture Sensor Signal
5	PU	92	Windshield Wiper Motor High Speed
6	D-BU	1112	Outside Moisture Sensor Signal 1
7	D-GN	2228	Outside Moisture Sensor Signal 2
8	RD/BU	441	Ignition 3 Voltage

Windshield Wiper Motor (w/o Rain Sensor)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KUM PB 625-08027 8-Way F NMWP 08F-B Ass'y (BK)
Pin	Wire Color	Circuit Number	Function
1	D-GN	95	Windshield Wiper Motor Low Speed
2	YE	112	Windshield Wiper Switch Signal
3	BK	1150	Ground
4	-	-	Not Used
5	PU	92	Windshield Wiper Motor High Speed
6	BN	96	Windshield Wiper Off/Delay Signal
7	RD	228	Windshield Washer Pump Control
8	RD/ D-BU	441	Ignition 3 Voltage

Windshield Wiper/Washer Switch A

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610154 9-Way F 118 (PA) Series (WH)
Pin	Wire Color	Circuit Number	Function
A1	WH	393	Rear Window Wiper Motor Control (w/Rear Wipers)
A2	D-GN	392	Rear Window Washer Pump Control (w/Rear Wipers)
A3	BN	441	Ignition 3 Voltage
A4	RD	228	Windshield Washer Pump Control
A5	D-GN	95	Windshield Wiper Motor Low Speed
A6	L-BU	97	Windshield Wiper Switch Off/Delay Signal
A7	GY	91	Windshield Wiper Switch Pulse Delay Signal
A8	BN	441	Ignition 3 Voltage
A9	PU	92	Windshield Wiper Motor High Speed

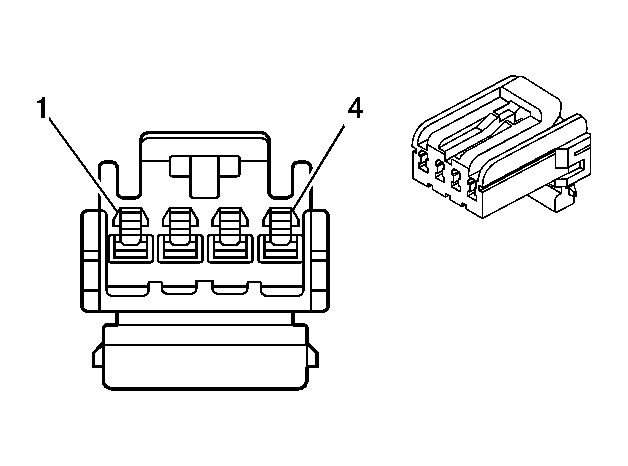

Windshield Wiper/Washer Switch B (w/Rear Fog Lamps)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 368501-1 4-Way F 070 Series MLC Plug Hsg 4P (WH)
Pin	Wire Color	Circuit Number	Function
B1	YE	91	Windshield Wiper Switch Pulse Delay Signal
B2	GY	112	Windshield Wiper Switch Signal 1
B3	PU	1977	Outside Moisture Sensor Signal 1
B4	BK	250	Ground

Windshield Wiper/Washer Switch B (w/o Rear Fog Lamps)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 174463-1 2-Way M 070 Series Multilock 2P (WH)
Pin	Wire Color	Circuit Number	Function
B1	YE	112	Windshield Wiper Switch Signal 1
B2	GY	91	Windshield Wiper Switch Pulse Delay Signal
