Lighting Systems Component Views

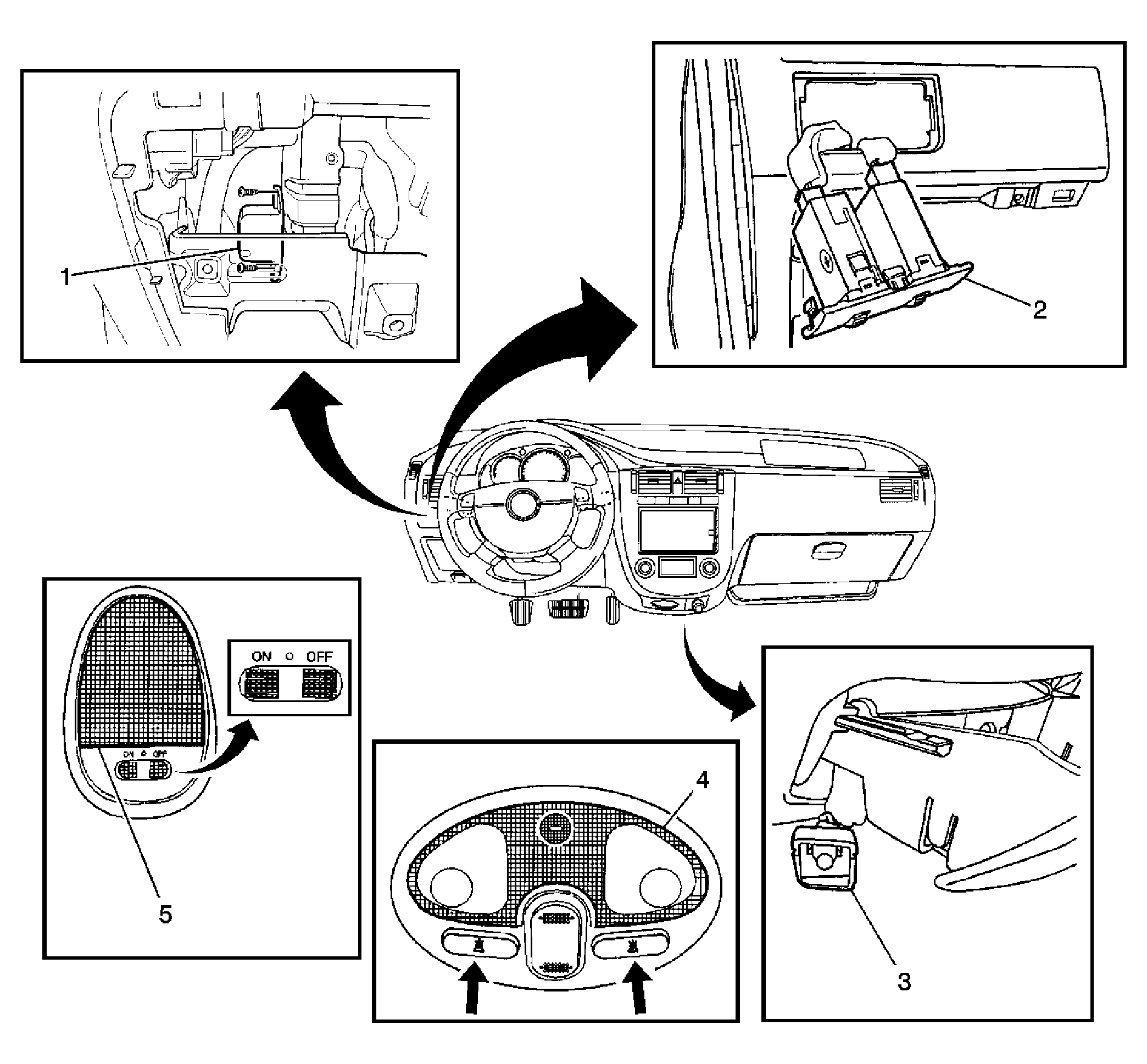

Fig 1: Identifying Daytime Relay Lamp (DRL), I/P Dimmer Switch And Ashtray Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Relay Lamp (DRL) Module
2	I/P Dimmer Switch
3	Ashtray Lamp
4	Reading Lamp
5	Dome Lamp

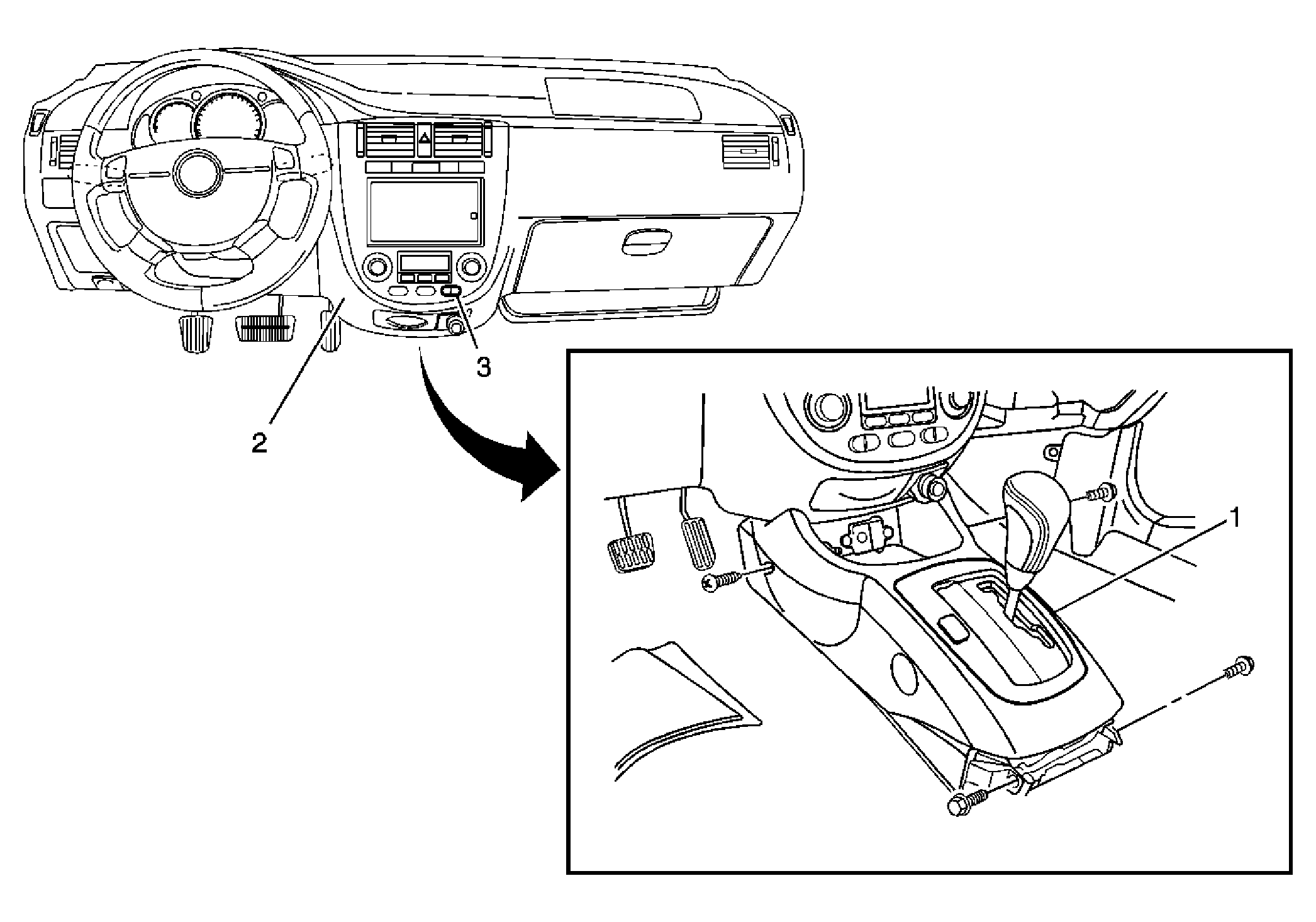

Fig 2: Identifying PRNDL Lamp, Multifunction Alarm Module And Defrost Switch

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

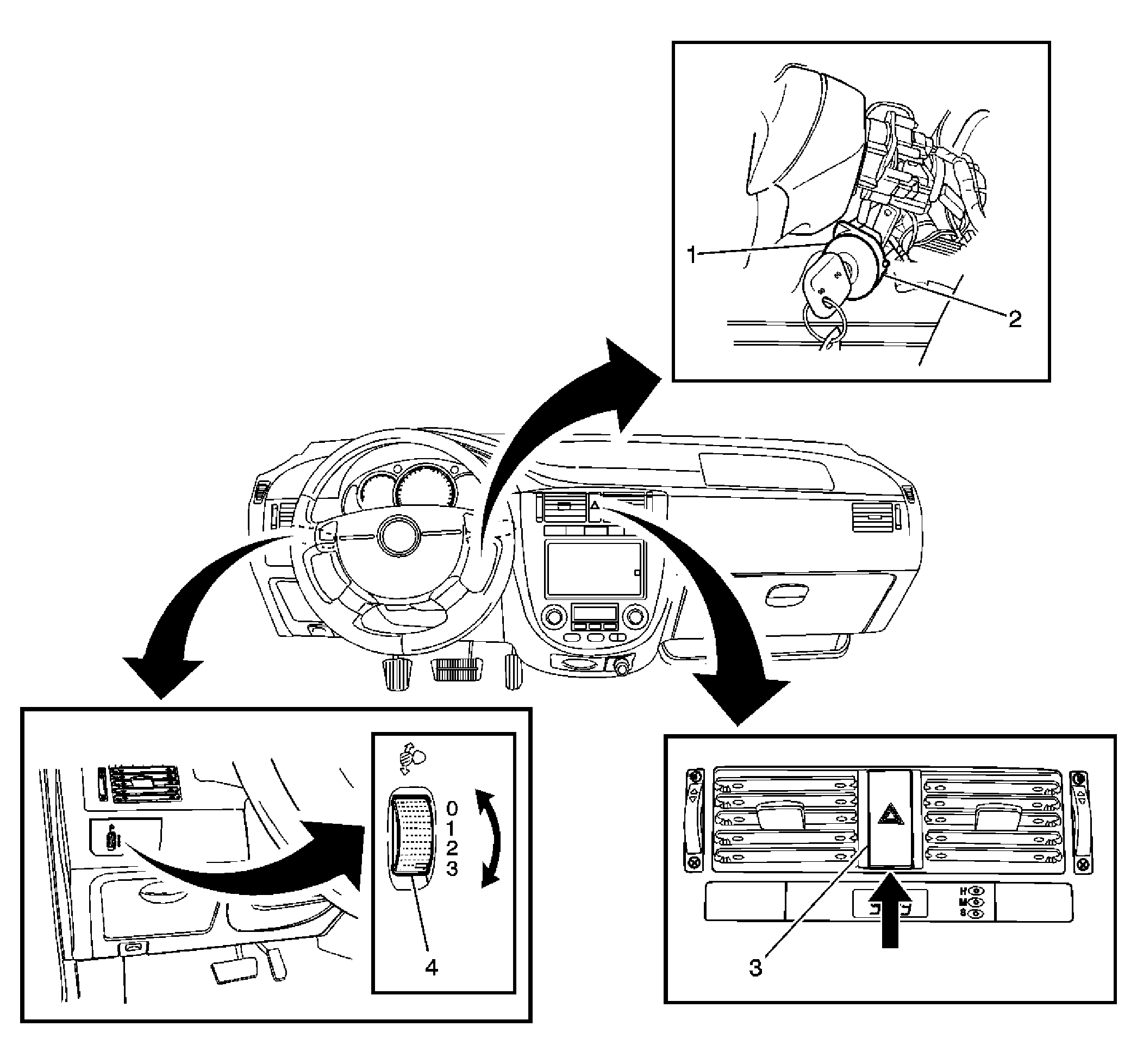

Fig 4: Identifying Light Ring, Ignition Switch, Hazard Switch And Headlamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Light Ring
2	Ignition Switch
3	Hazard Switch
4	Headlamp Leveling Switch (Except North America)

Fig 5: Identifying Headlamp, CHMSL, And Sunroof Switch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Module
2	Sunroof Switch/Readling Lamps
3	License Lamp
4	Center High Mounted Stop Lamp (CHMSL)
5	Tail Lamp (Left and Right Similar)
6	Sunroof Motor

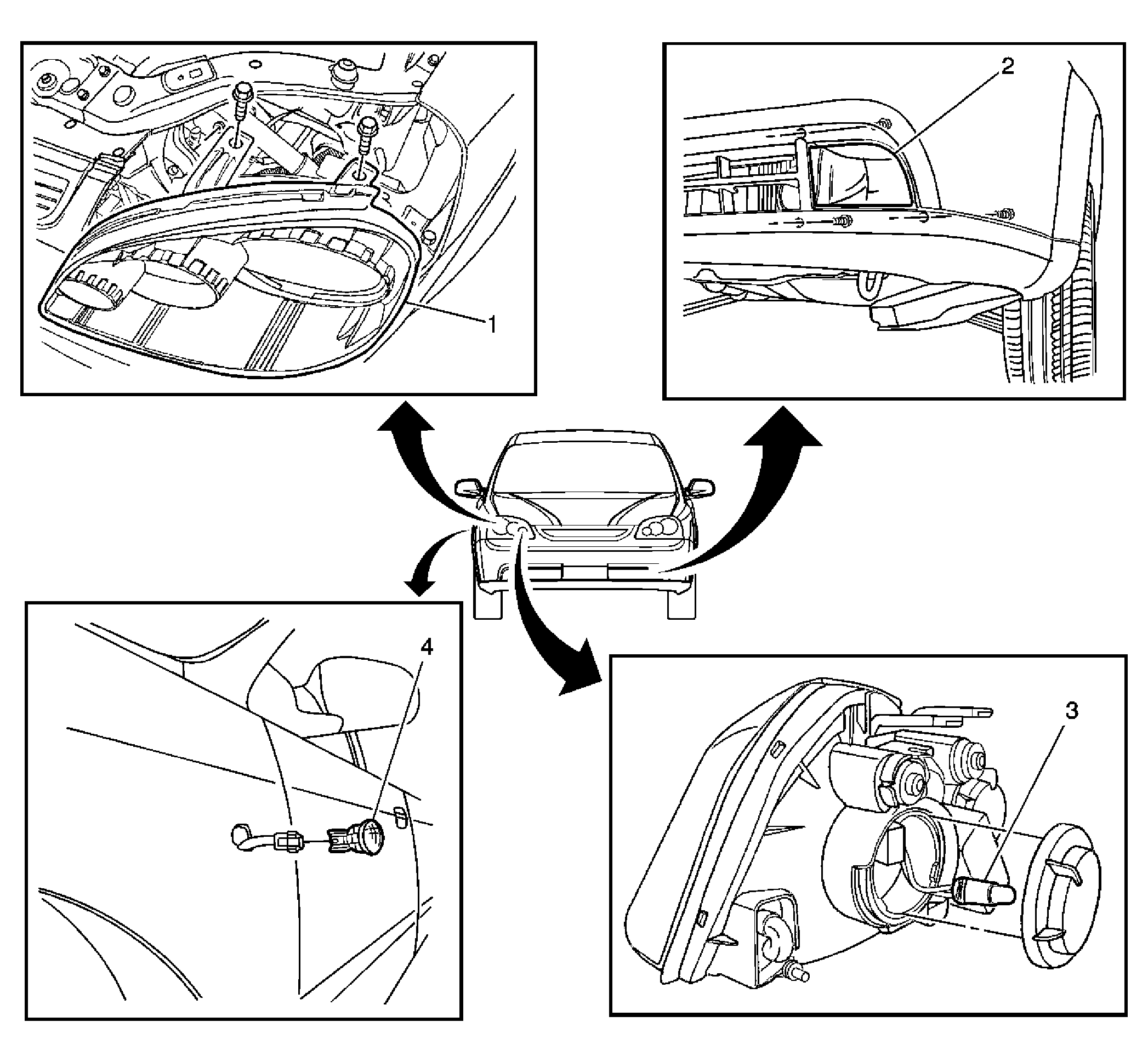

Fig 6: Identifying Exterior Lights And Turn Signals

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp (Left Shown, Right Similar)
2	Fog Lamp - Front (Left Shown, Right Similar)
3	Park/Turn Signal Lamp (North America)/Turn Signal Lamp (Euro) (Left and Right Similar)
4	Turn Signal Repeater Lamp (Left Shown, Right Similar)

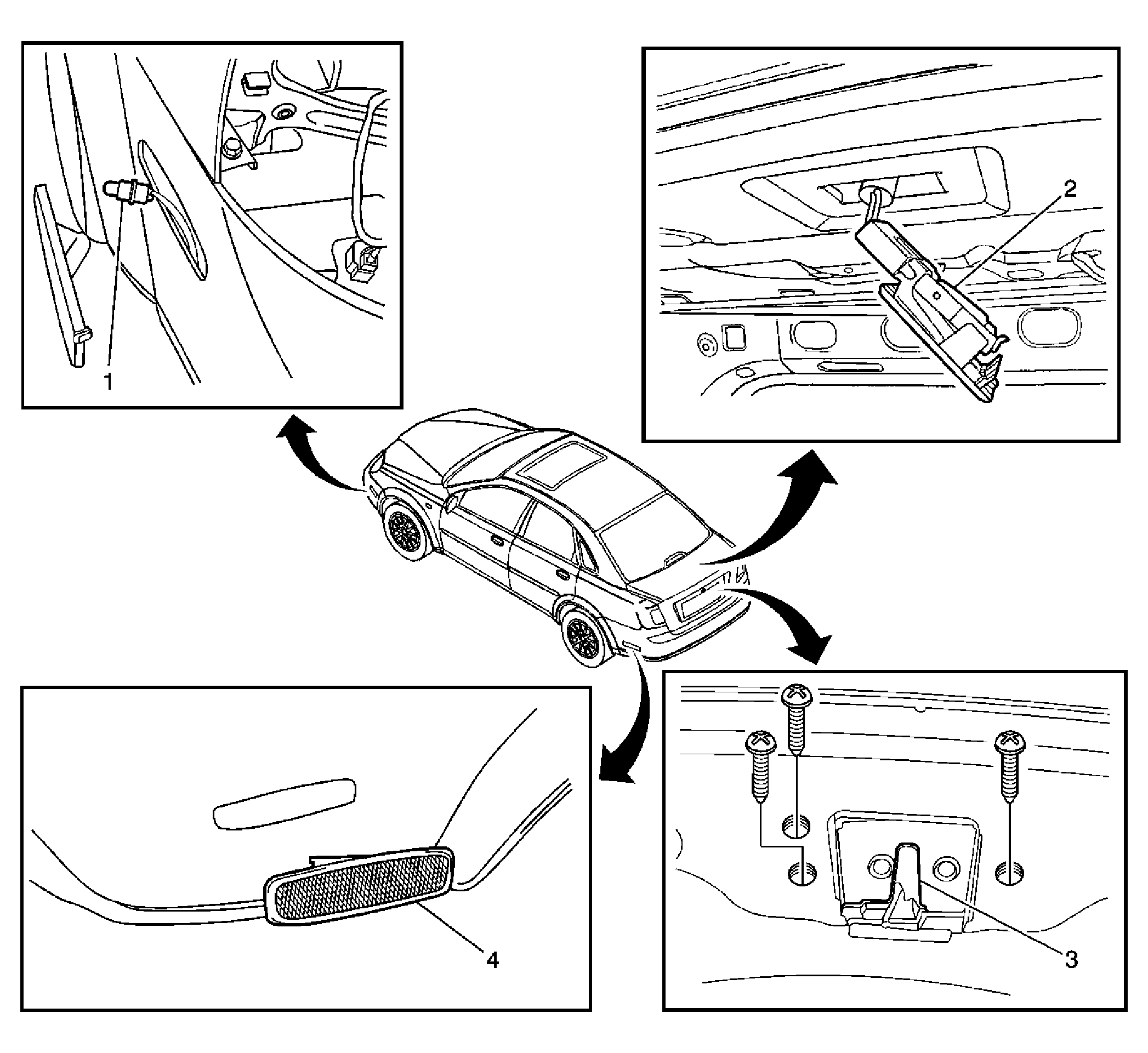

Fig 7: Identifying Side Markers And Rear Compartment Lid Latch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Marker - Front (Left and Right Similar)
2	Rear Compartment Lamp
3	Rear Compartment Lid Latch
4	Side Marker - Rear (Left and Right Similar)

Fig 8: Identifying Steering Wheel And Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch
2	A/T Select Lever
3	Ignition Lock Cylinder Control Actuator
4	Ignition Switch

Fig 9: Identifying Steering Column Components - Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wiper Intermittent Switch (Optional)
2	Wiper Intermittent Switch and Rear Fog Lamp Switch (w/Rear Fog Lamps)
3	Wiper Switch
