Installation Procedure

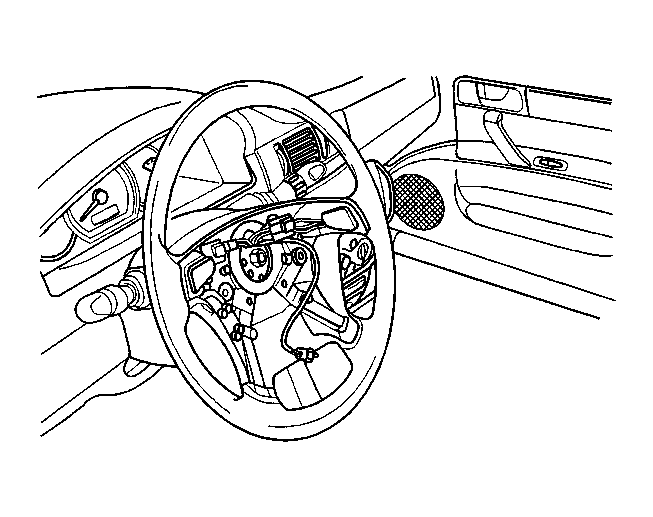

    Fig 1: View Of Steering Wheel Electrical Connectors
    GM1308220Courtesy of GENERAL MOTORS CORP.
  1. Clip the contact ring on the steering wheel, if necessary.
  2. Align the match-marks on the steering wheel and the steering column shaft. Turn the signal cancelling cam on the wheel to the left.
    3. NOTE: Refer to Fastener Notice .
  3. Install the retaining clip and the steering wheel nut.

    Tighten:  Tighten the steering wheel nut to 38 N.m (28 lb ft)  .

  4. Bend the tabs to secure the retaining clip.
  5. Install the SIR module. Refer to Steering Wheel Inflatable Restraint Module Replacement (1.6/1.8L) or Steering Wheel Inflatable Restraint Module Replacement (2.0L) .
  6. Connect the negative battery cable.
