Removal Procedure

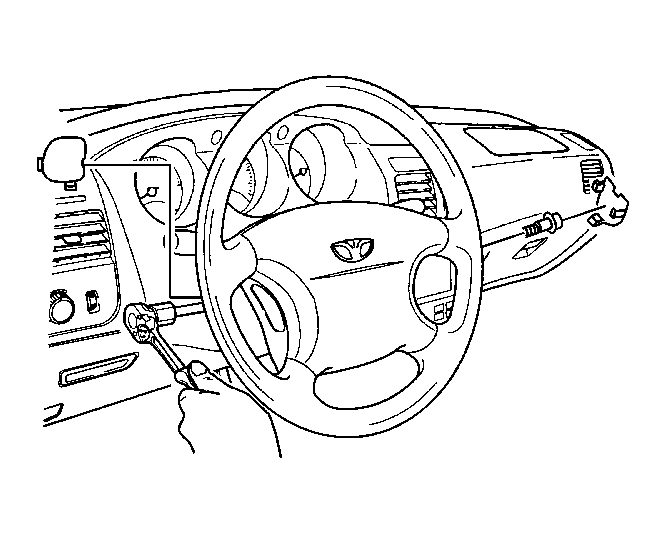

    Fig 1: View Of Steering Wheel Module Removal Procedure
    GM1256126Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
    2. CAUTION: Refer to Sensing and Diagnostic Module Handling Caution in Cautions and Notices.
  2. Position the steering wheel straight ahead.
    3. CAUTION: Refer to SIR Inflator Module Handling and Storage Caution in Cautions and Notices.
  3. Remove 2 driver air bag module mounting bolts and discard them.
  4. Remove the connectors from the horn terminal and the driver air bag module.
  5. Remove the driver air bag module.
