Removal Procedure

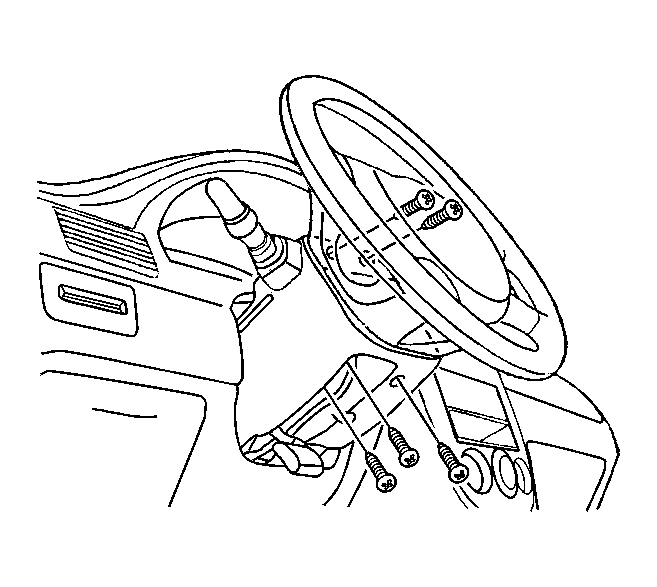

    Fig 1: View Of Upper And Lower Steering Column Cover Screws
    GM1308840Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Sensing and Diagnostic Module Voltage after Ignition is Turned Off Caution in Cautions and Notices.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the driver air bag module. Refer to Steering Wheel Inflatable Restraint Module Replacement (1.6/1.8L) .
  3. Remove the steering wheel. Refer to Steering Wheel Replacement (Without SIR) or Steering Wheel Replacement (With SIR) in Steering Wheel and Column.
  4. Remove the screws from the upper and lower steering column covers, and remove the covers.
  5. Remove the driver side knee bolster or instrument panel lower cover.
  6. Disconnect the driver air bag, horn, and connectors from the lower steering column.
  7. Remove the screws and discard them.
  8. Remove the clock spring from the steering shaft.
