Installation Procedure

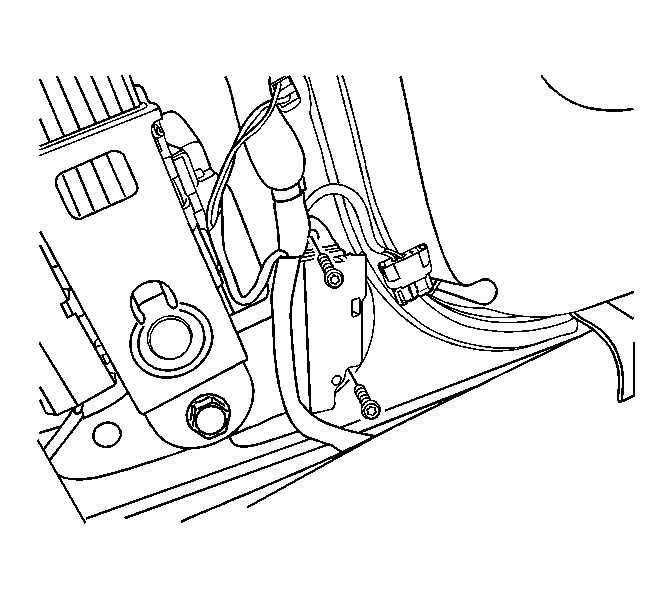

    Fig 1: View Of Side Air Bag Sensor And Bolts
    GM1308844Courtesy of GENERAL MOTORS CORP.
  1. Install the side air bag sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the side air bag sensor mounting bolts.

    Tighten:  Tighten the side air bag sensor mounting bolts to 8 N.m (71 lb in)  .

  3. Install the trim to the center pillar.
  4. Connect the negative battery cable.
