Installation Procedure

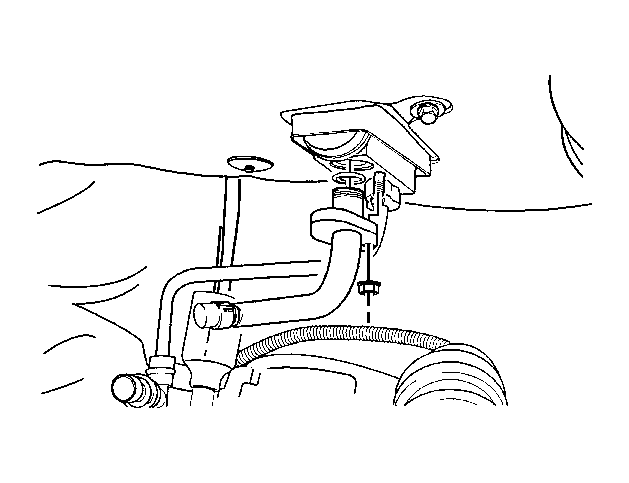

Fig 1: View Of Discharge Hose, Block And Nut

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Insert the suction hose block-to-compressor to the compressor.
Tighten: Tighten the retaining nut at the suction hose block to 33 N.m (24 lb ft) .

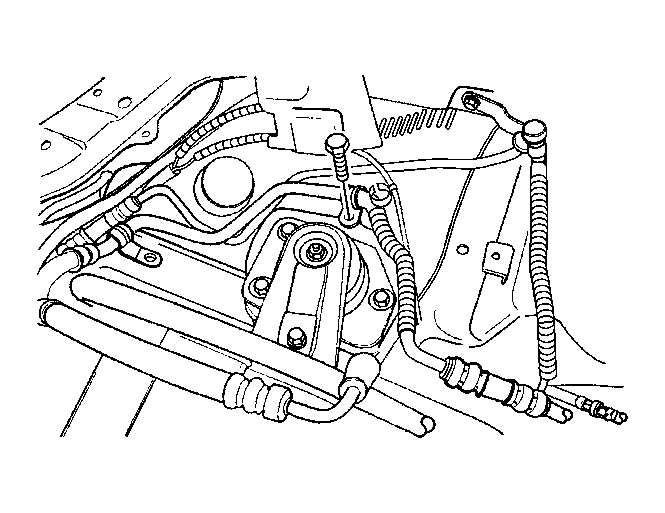

Fig 2: Identifying Suction Hose, Clamps And Bolts

Courtesy of GENERAL MOTORS CORP.

Install the suction hose support clamp-to-longitudinal member.
Tighten: Tighten the suction hose support clamp-to-longitudinal member bolt to 8 N.m (71 lb in) .

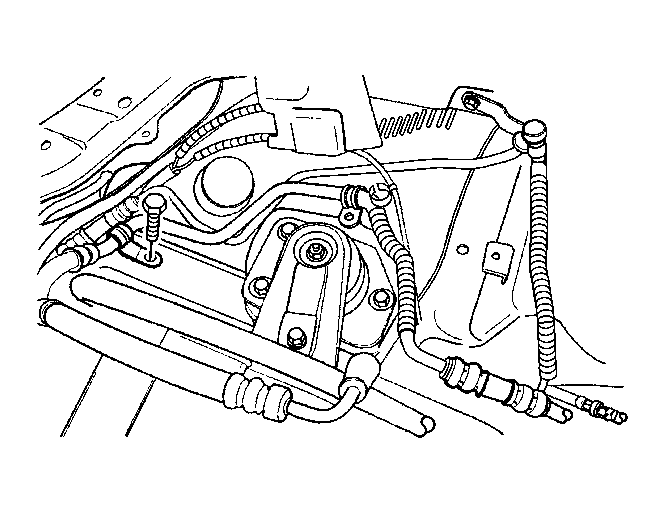

Fig 3: View Of Suction Hose Support Clamp-To-Engine Bracket And Bolt

Courtesy of GENERAL MOTORS CORP.

Install the suction hose support clamp-to-engine bracket.
Tighten:
- For the 1.4 DOHC and the 1.6 DOHC, tighten the suction hose support clamp-to-engine bracket bolt to 4 N.m (35 lb in) .
- For the 1.8 DOHC and the 2.0 DOHC, tighten the suction hose support clamp-to-engine bracket bolt to 14 N.m (10 lb ft) .

Fig 4: View Of Suction Hose And Block

Courtesy of GENERAL MOTORS CORP.

Install the suction hose block-to-expansion valve retaining nut at the fire wall.
Tighten: Tighten the suction hose block-to-expansion valve retaining nut to 14 N.m (10 lb ft) .
Connect the electrical connector at the pressure transducer.
Install the air cleaner housing bolts and the air filter housing assembly.
Connect the negative battery cable.
Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
