Removal Procedure

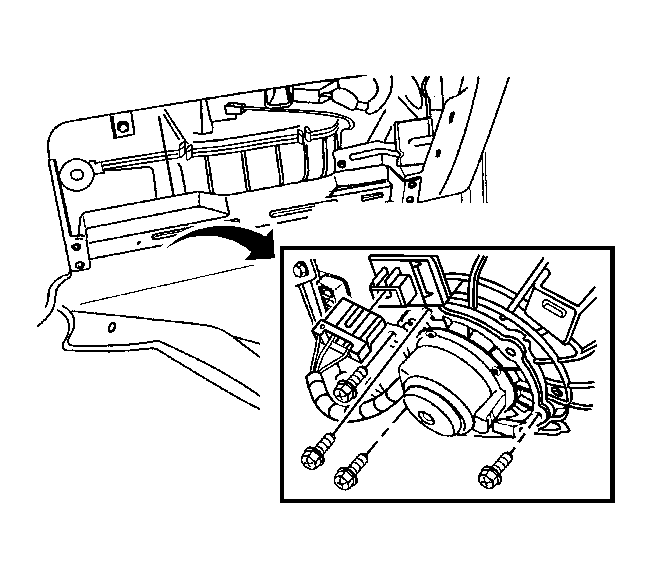

    Fig 1: View Of Blower Motor Screws And Connectors
    GM1308289Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the glove box. Refer to Instrument Panel Storage Compartment Replacement in Instrument panel, Gauges and Console.
  3. Remove the carpet to prevent stains.
  4. Disconnect the blower motor electrical connector and resistor connector.
  5. Remove the screws that secure the motor to the heater/air distributor case.

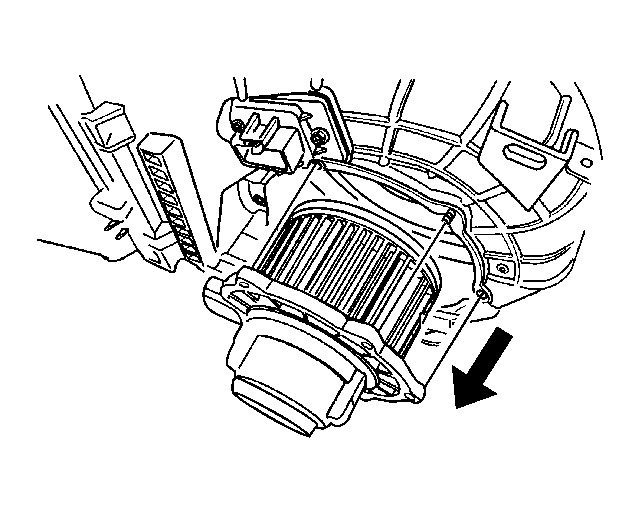

    6. Fig 2: View Of Blower Motor
    GM1308290Courtesy of GENERAL MOTORS CORP.
  6. Remove the motor, the seal, and the shock mount pads from the heater/air distributor case by gently pulling the motor straight down and out.
