Installation Procedure

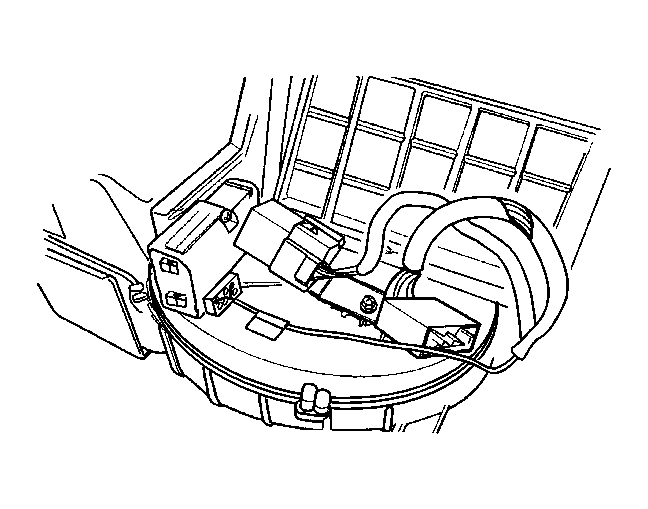

    Fig 1: View Of Blower Motor Relay And Connector
    GM1308293Courtesy of GENERAL MOTORS CORP.
  1. Connect the relay to the connector.
  2. Insert the connector to the bracket.
  3. Install the glove box. Refer to Instrument Panel Storage Compartment Replacement in Instrument Panel, Gauges and Console.
