Removal Procedure

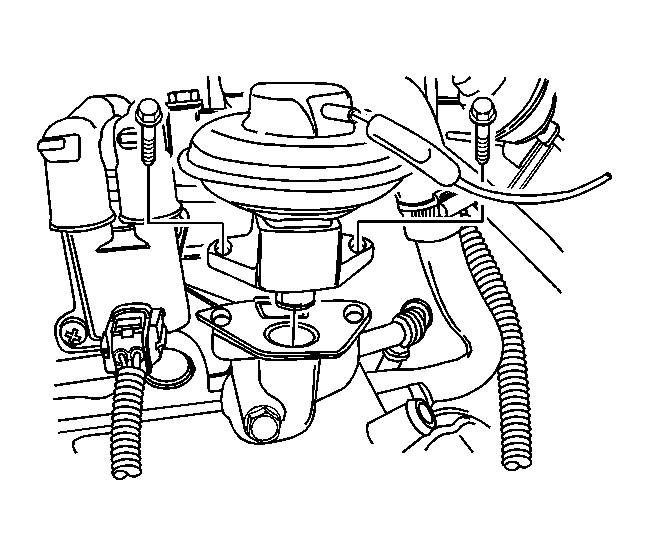

    Fig 1: Identifying EGR Valve And Retaining Bolts
    GM1289437Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the negative battery cable.
  2. Disconnect the vacuum hose from the exhaust gas recirculation (EGR) valve.
  3. Remove the EGR valve retaining bolts.
  4. Remove the EGR valve.
