Removal Procedure

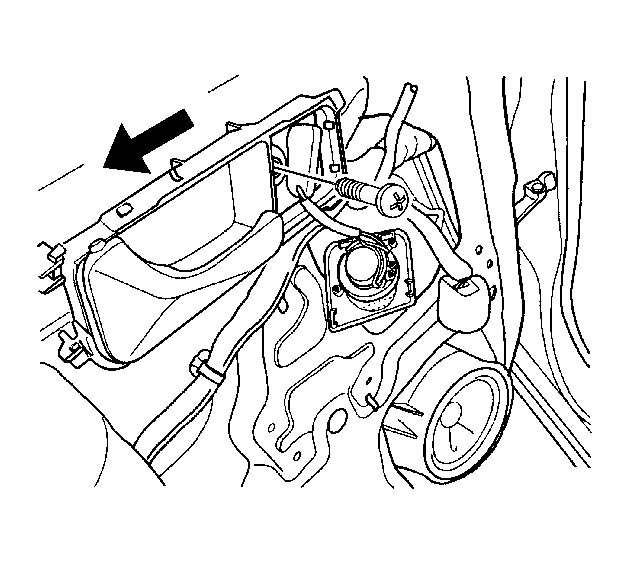

    Fig 1: View Of Tweeter Speaker And Door Handle Screw
    GM1309061Courtesy of GENERAL MOTORS CORP.
  1. Remove the door trim. Refer to Front Side Door Trim Panel Replacement or to Rear Door Trim Panel Replacement .
  2. Remove the tweeter speaker, if equipped, and the screw
  3. Slide the door handle forward and remove it from the door.
  4. Disconnect the inside door handle and the lock rods.
