Installation Procedure

  1. Install the spark plug wires to the engine.

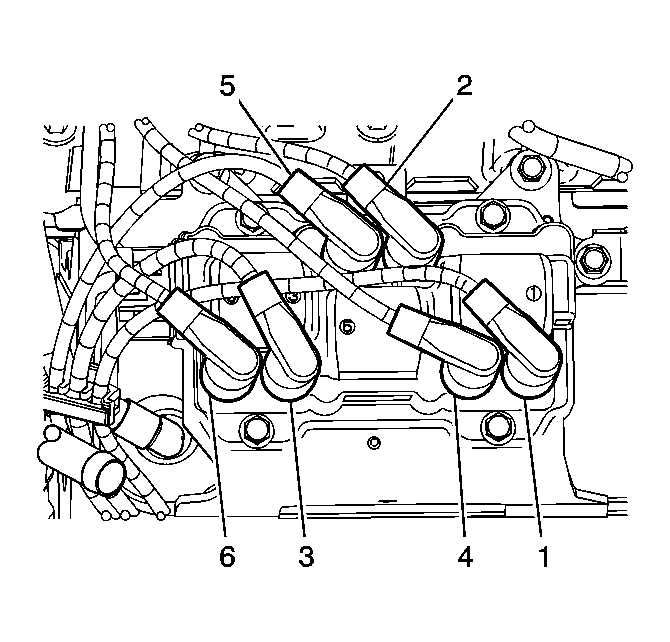

    2. Fig 1: Installing Spark Plug Wires To Ignition Coils
    GM1299209Courtesy of GENERAL MOTORS CORP.
  2. Install the spark plug wires to the ignition coils.

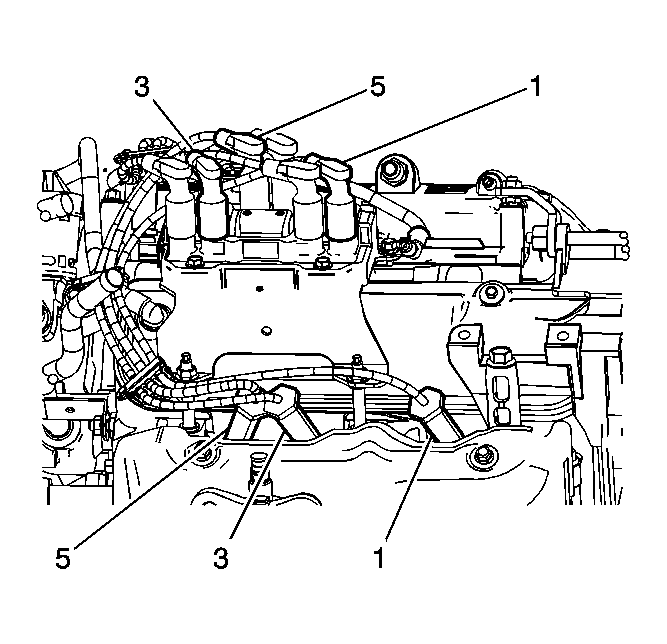

    3. Fig 2: Installing Spark Plug Wires To Engine Right Side
    GM1299397Courtesy of GENERAL MOTORS CORP.
  3. Install the spark plug wires (1,3, and 5) to the engine right side spark plugs.
  4. Install the spark plug wires to the retaining clip.

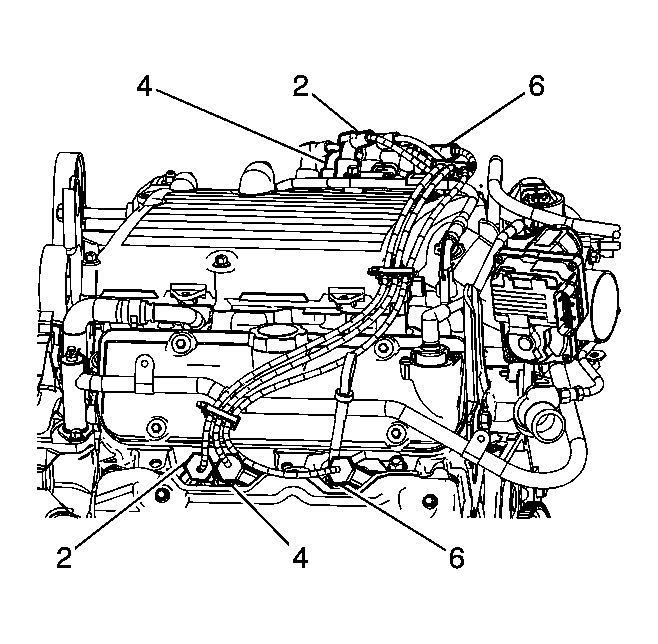

    5. Fig 3: Installing Spark Plug Wires To Engine Left Side Spark Plugs
    GM1299208Courtesy of GENERAL MOTORS CORP.
  5. Install the spark plug wires (2,4, and 6) to the engine left side spark plugs.
  6. Install the spark plug wires to the retaining clips.
