Installation Procedure

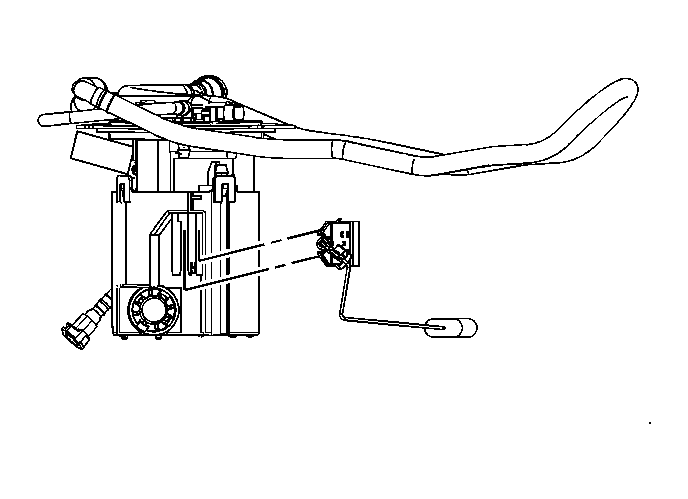

    Fig 1: View Of Fuel Pump Module Assembly (Malibu Sedan)
    GM1236147Courtesy of GENERAL MOTORS CORP.
  1. Carefully slide the fuel level sensor into the slots on the fuel pump module bowl.
  2. Secure the retaining tab on the sensor into the slot on the pump module bowl.
  3. Connect the fuel level sensor electrical connector to the pump module cover.
  4. Install the fuel level sensor wiring harness to the molded-in tab on the pump module bowl.
  5. Install the fuel pump module assembly. Refer to Fuel Sender Assembly Replacement (Malibu Sedan)  and Fuel Sender Assembly Replacement (Malibu MAXX) .
