Installation Procedure

    Fig 1: Connecting Electrical Connector To Ambient Air Temperature Sensor
    GM1346676Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the ambient air temperature sensor.
  2. Position the ambient air temperature sensor to the front impact bar. Ensure that the locating tabs on the sensor are seated into the holes on the impact bar.
  3. Install the fastener to the ambient air temperature sensor.

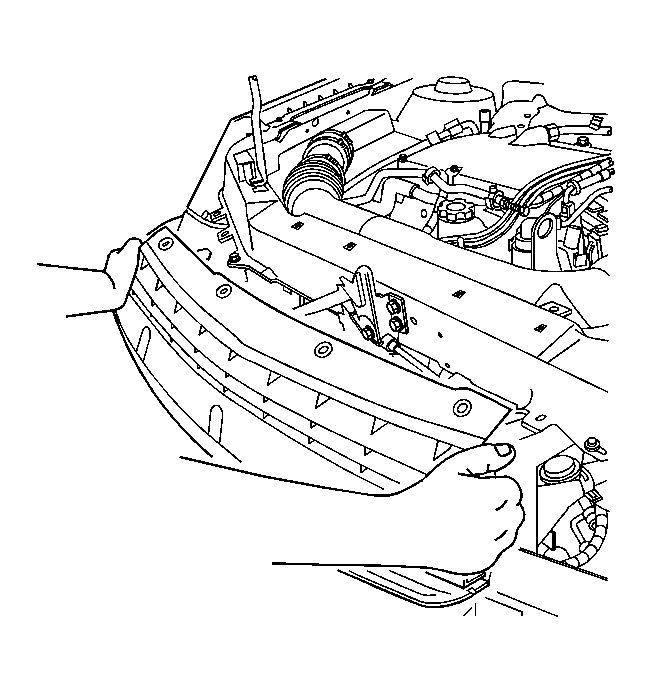

    4. Fig 2: Installing Fascia Grille
    GM1219350Courtesy of GENERAL MOTORS CORP.
  4. Install the fascia grille. Refer to Fascia Grille Replacement in Bumpers.
  5. Close the hood.
