Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Air Cleaner Cover & Latches

Courtesy of GENERAL MOTORS CORP.

Install a NEW air filter assembly (2).

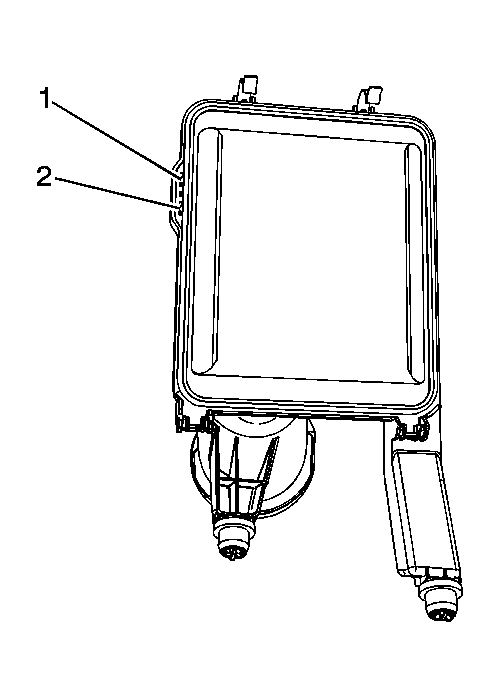

Fig 2: Identifying Air Cleaner Cover Alignment Tab

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure the air filter alignment tab (1) is properly fitted to the alignment feature (2) in the air box lower housing.

Close the air cleaner cover.
Engage the air cleaner cover latches.
