Radiator Inlet Hose Replacement (LAT)

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

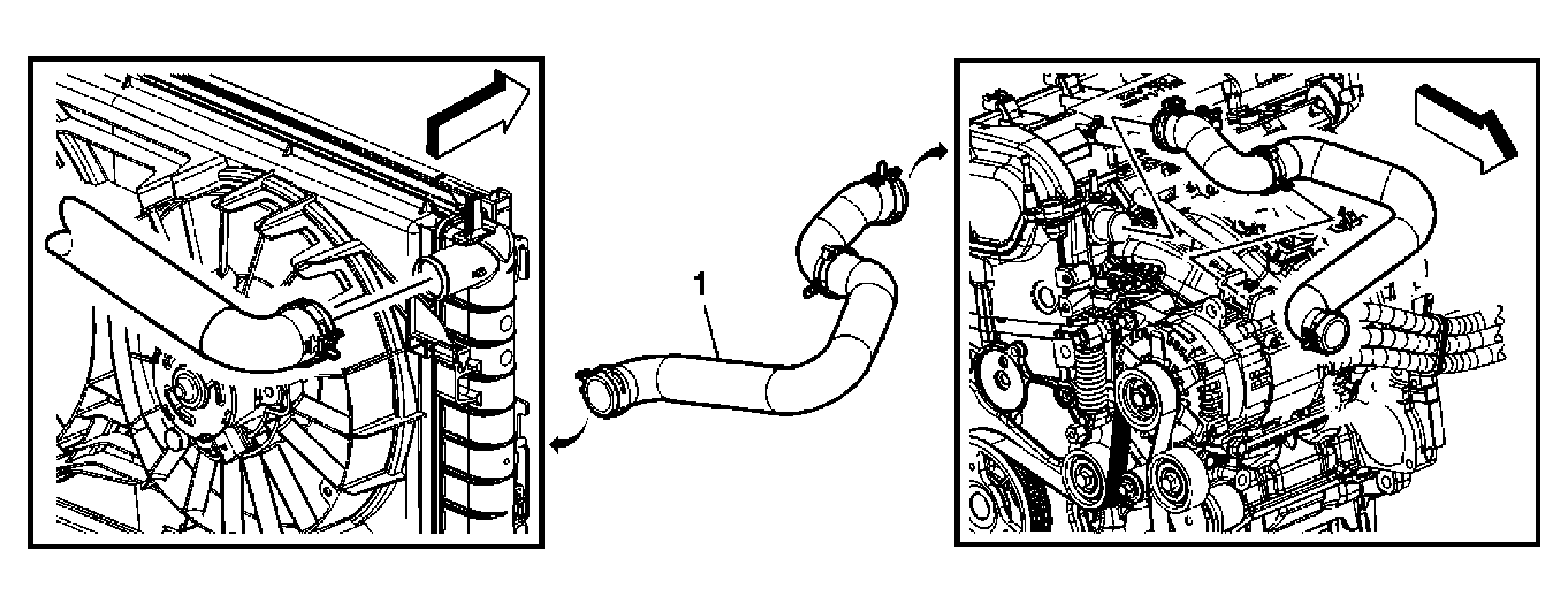

Fig 1: Identifying Radiator Inlet Hose (LAT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: With a pressurized cooling system, the coolant temperature in the radiator can be considerably higher than the boiling point of the solution at atmospheric pressure. Removal of the surge tank cap, while the cooling system is hot and under high pressure, causes the solution to boil instantaneously with explosive force. This will cause the solution to spew out over the engine, the fenders, and the person removing the cap. Serious bodily injury may result. Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) . Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Duct Replacement .
1	Radiator Inlet Hose Procedure: Reposition the 2 radiator hose clamps using the J 38185 . See Special Tools . Special Tools: J 38185 Hose Clamp Pliers. See Special Tools .

Callout

Component Name

WARNING: With a pressurized cooling system, the coolant temperature in the radiator can be considerably higher than the boiling point of the solution at atmospheric pressure. Removal of the surge tank cap, while the cooling system is hot and under high pressure, causes the solution to boil instantaneously with explosive force. This will cause the solution to spew out over the engine, the fenders, and the person removing the cap. Serious bodily injury may result.

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE 47716) .
Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Duct Replacement .

Radiator Inlet Hose
Procedure:
Reposition the 2 radiator hose clamps using the J 38185 . See Special Tools .
Special Tools:
J 38185 Hose Clamp Pliers. See Special Tools .
