Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

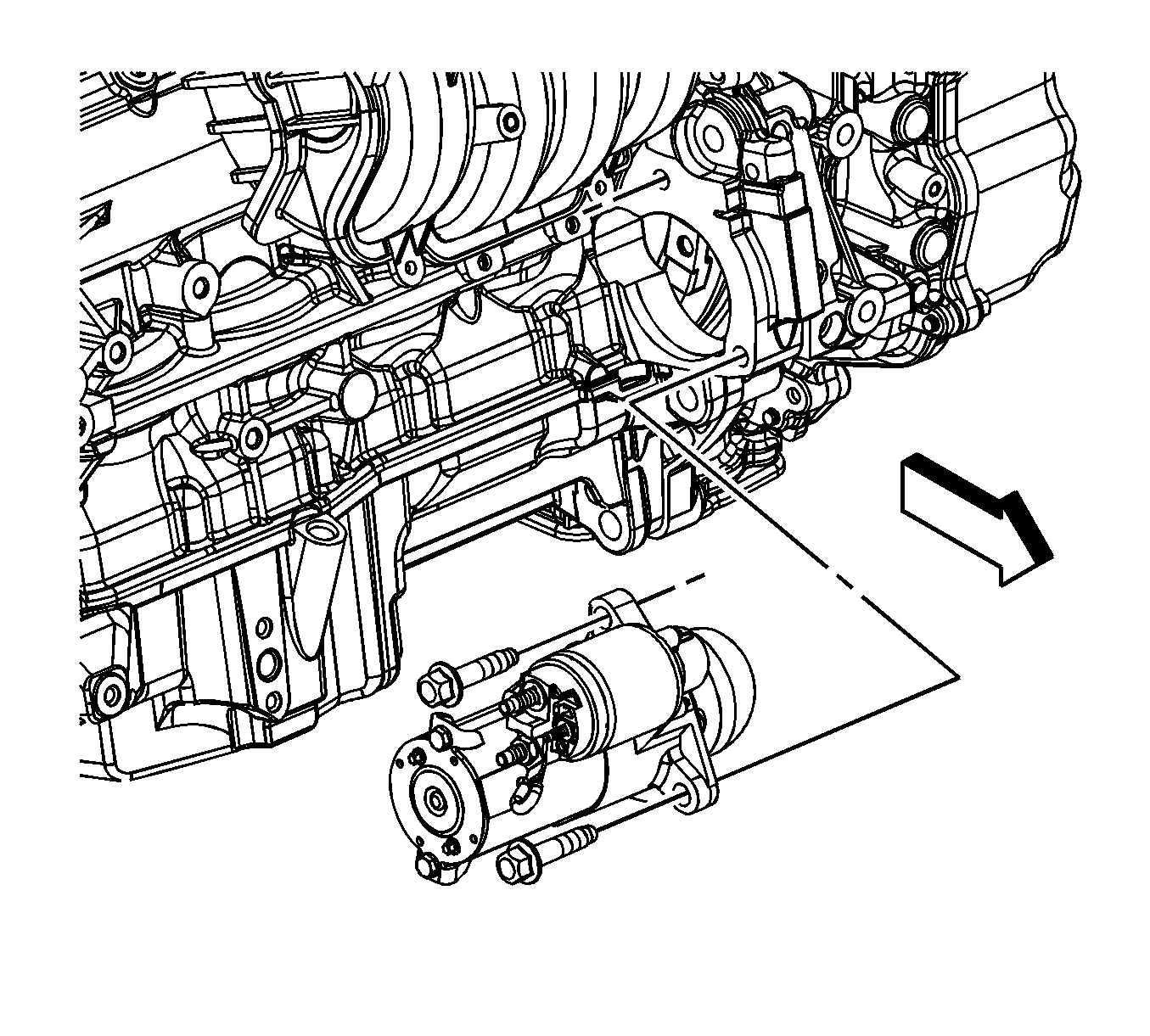

    Fig 1: Identifying Starter Motor Bolts & Starter
    GM1814106Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the starter motor and bolts and tighten to 53 N.m (39 lb ft).
    2. Fig 2: View Of Positive Battery Cable & Starter Motor
    GM1891299Courtesy of GENERAL MOTORS CORP.
  2. Install the positive battery cable lead (2) to the starter motor.
  3. Install the positive battery cable to starter motor nut (1) and tighten to 10 N.m (89 lb in).
    4. Fig 3: Locating Engine Wiring Harness Electrical Connector At Starter
    GM1891303Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the starter.

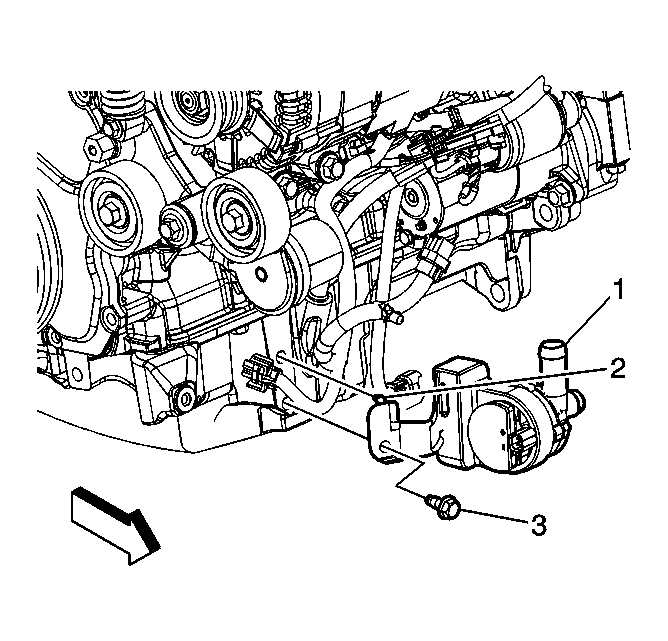

    5. Fig 4: View Of Generator Control Module Coolant Pump
    GM1891294Courtesy of GENERAL MOTORS CORP.
  5. Unsecure the generator control module coolant pump.
  6. Position the generator control module coolant pump (1), with the hoses attached, to the oil pan. Ensure that the anti-rotation tab (2) is inserted into the hole in the oil pan.
  7. Install the generator control module coolant pump bolt (3) and tighten to 22 N.m (16 lb ft).

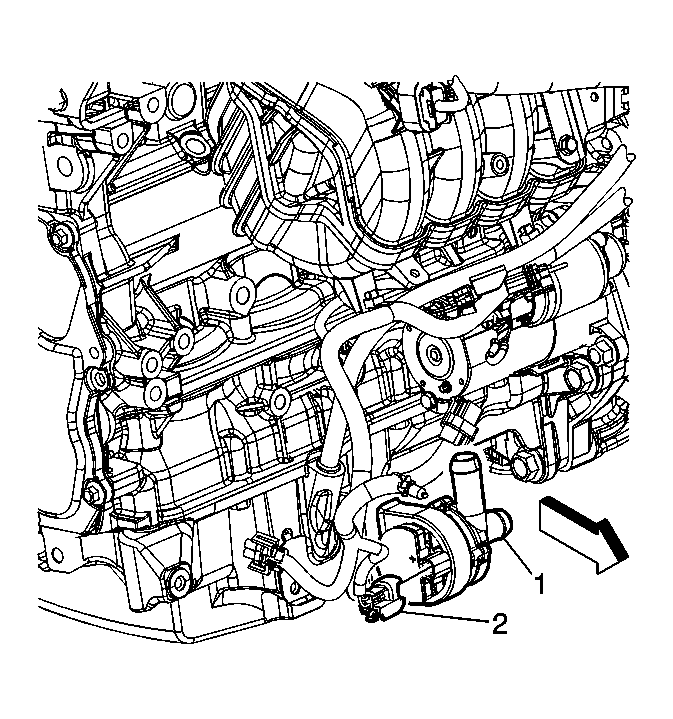

    8. Fig 5: View Of Starter Motor (LAT)
    GM1891292Courtesy of GENERAL MOTORS CORP.
  8. Connect the engine wiring harness electrical connector (2) to the generator control module coolant pump (1).
  9. Lower the vehicle.
  10. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LAT) .
