Rear Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

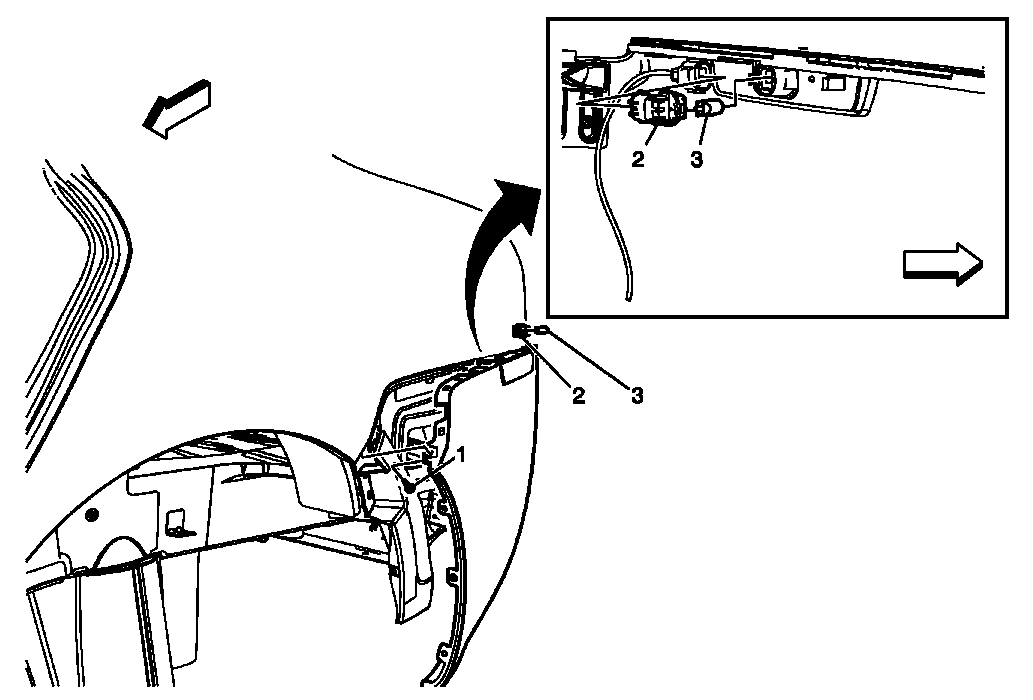

Fig 1: Identifying Rear Side Marker Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Rear Bumper Fascia Screw CAUTION: Refer to Fastener Caution . Tip: The screw is hidden under the inside edge of the bumper fascia. Tighten: 10 N.m(89 lb in)
2	Rear Side Marker Lamp Bulb Socket Procedure Flex the front edge of the rear bumper fascia outward far enough in order to access the electrical harness connector and bulb socket. Disconnect the electrical harness connector from the bulb socket. Rotate the bulb socket counterclockwise and remove from the rear side marker lamp assembly.
3	Rear Side Marker Lamp Bulb
