Luminescent Lamp Replacement - Roof Console
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

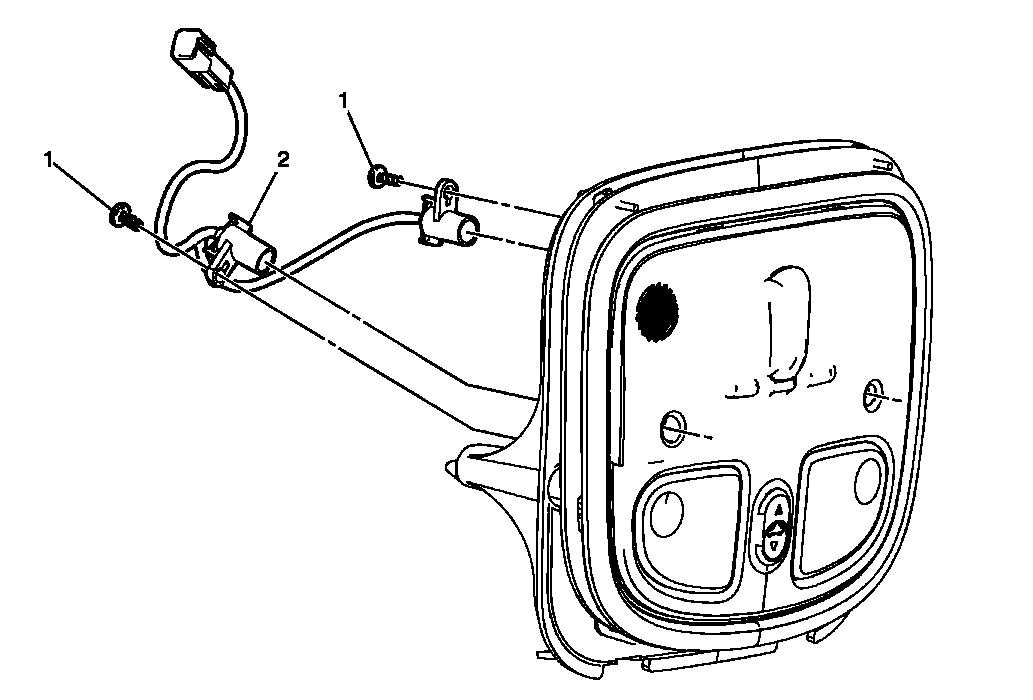

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the overhead console. Refer to Roof Console Replacement . |
|
| 1 | Luminescent Lamp Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Luminescent Lamp |
