Instrument Panel Storage Compartment Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

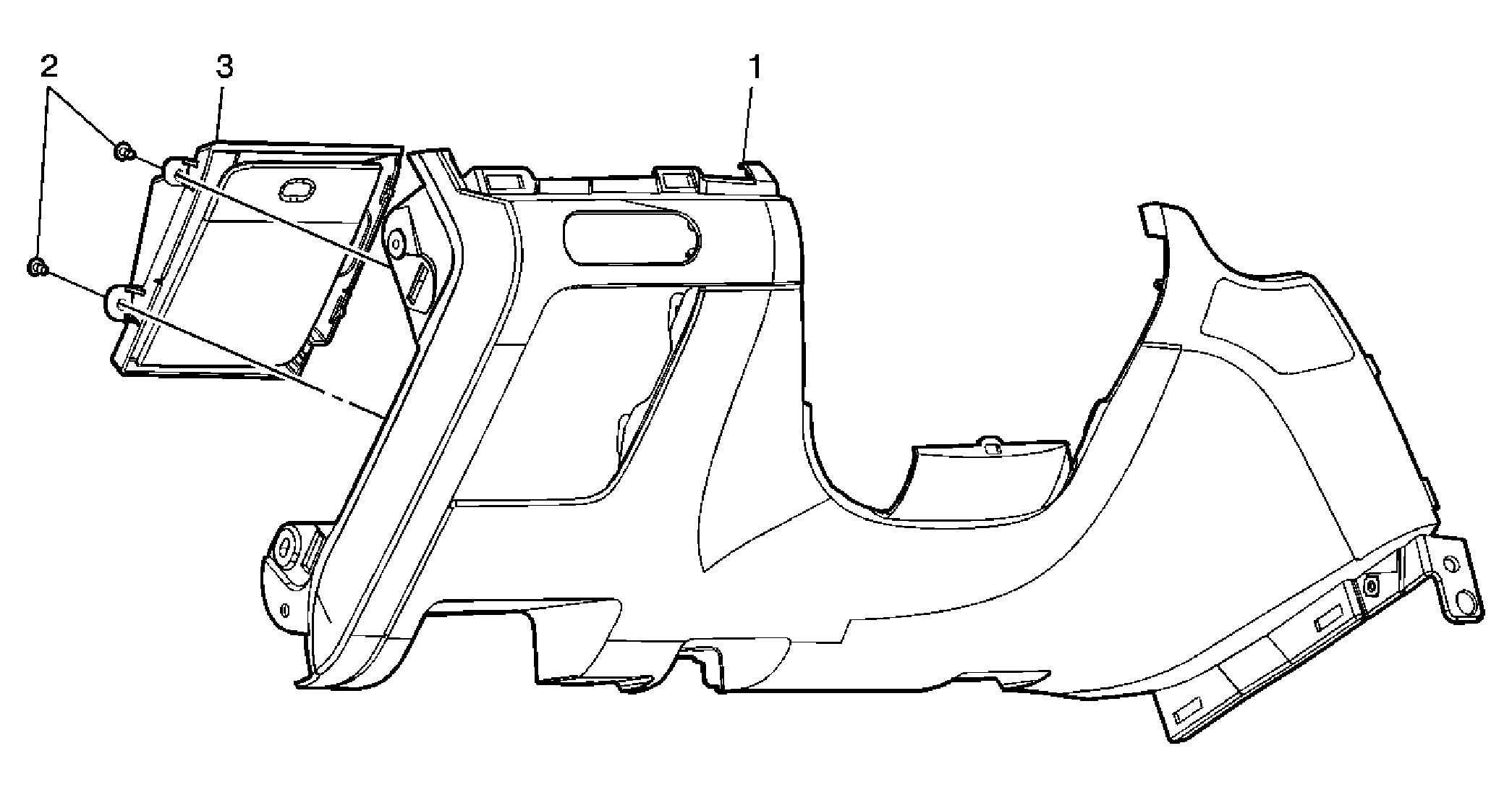

Fig 1: View Of Instrument Panel Storage Compartment
GM1777133Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Knee Bolster Assembly
Refer to Driver Knee Bolster Panel Replacement .
2 Instrument Panel Storage Compartment Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2.5 N.m (22 lb in)
3 Instrument Panel Storage Compartment Assembly
